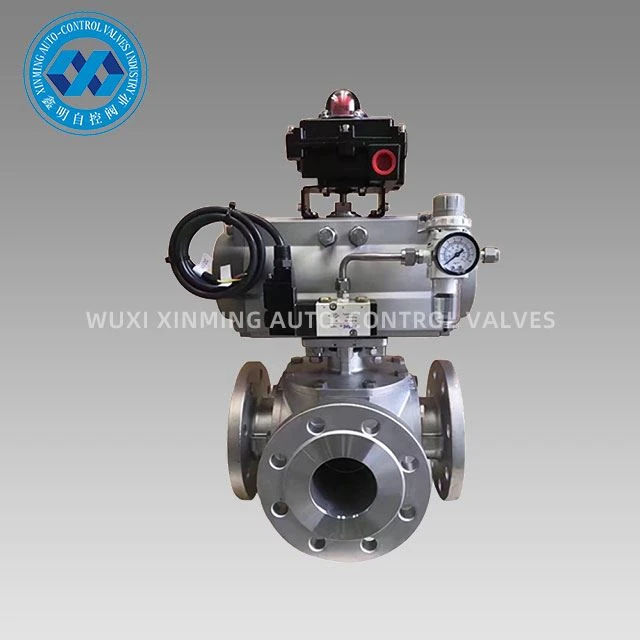

Lub pneumatic stainless hlau 3- txoj kev pob valve txais yuav ib qho - daim forged valve lub cev, ua tau -hauv T- hom lossis L- hom pob core, thiab kev sib txawv nruab nrab, kev sib tshuam, lossis kev khiav dej num hloov los ntawm 90℃khib- hom pneumatic actuator. Ib qho - ua yeeb yam lossis ob npaug - kev ua yeeb yam caij nplooj ntoos hlav rov qab tuaj yeem qhib thiab kaw tsis pub dhau 0.5-2 vib nas this hauv qhov chaw tsis muaj zog thiab tawg-pov thawj thiab tau siv dav hauv tshuaj lom neeg, tshuaj, zaub mov, thiab cov khoom siv hluav taws xob tshiab.
Khoom Paub meej:
| Khoom npe | Pneumatic Stainless Hlau 3-Txoj Kev Pob Valve |
| Hom lub npe | XM thiab OEM kuj txais |
| Nominal Dia | DN8-DN200 (1/4"-8"") |
| Valve Lub cev khoom | CF8 (304) / CF8M (316) / CF3M (316L) |
| Pob Flow Direction | T-type (Divert/Mix) los yog L-type (Switch) |
| Sealing Class | PTFE ({2}}20 ~ 180 degree) / R-PTFE / Hlau Hard Foob |
| Ua Haujlwm Siab | PN16/25/40/64; ANSI 150/300 lb |
| Hom kev sib txuas | Internal xov BSP / NPT, Flange RF / RTJ, Vuam SW / EW |
| Hom Actuator | Ob chav Acting DA / Ib Leeg Ua Haujlwm Caij Nplooj Ntoos Hlav Rov Qab SR (FC / FO) |
| Cua Supply Siab | 0.3-0.8 MPa Cua Compressed Cua huv |
| Hloov Sijhawm | 0.5-2 s (txiav txim siab los ntawm qhov loj ntawm tus actuator) |
| Leakage Rate | Tsawg dua lossis sib npaug li 1 × 10^-6 Pa.m^3/s (Class VI) |

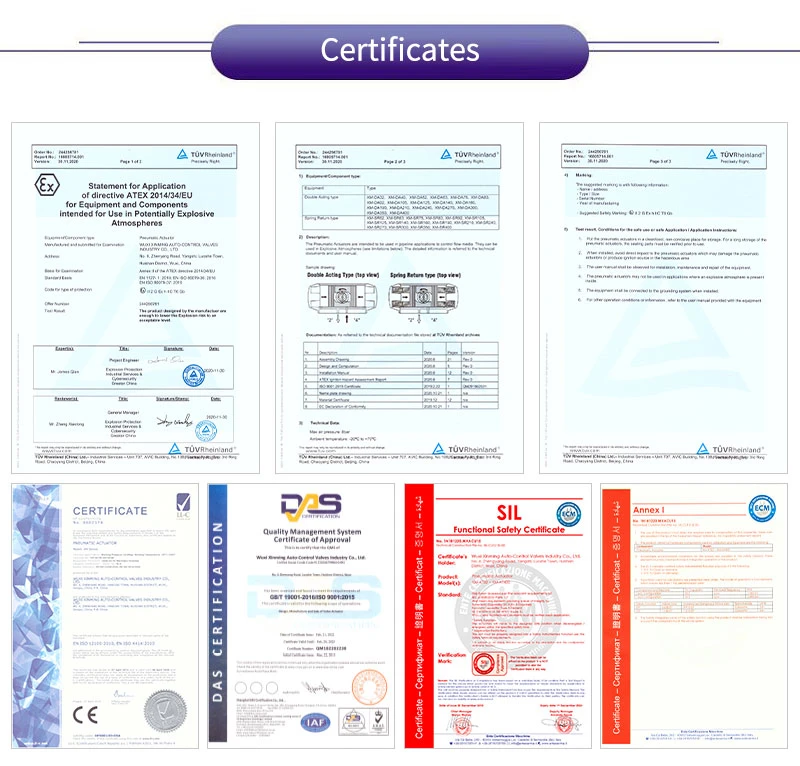

| Ntawv pov thawj Standards | CE, ATEX, SIL3, ISO9001: 2016 |
Loj Thiab Nyhav:
| DN | L | D | D1 | H | Qhov hnyav |
|---|---|---|---|---|---|
| 25 | 160 | 115 | 85 | 145 | 3.8 |
| 50 | 200 | 165 | 125 | 170 | 7.2 |
| 80 | 230 | 200 | 160 | 195 | 12.5 |
| 100 | 260 | 220 | 180 | 210 | 18.0 |
Cov ntawv thov raug:
• Chemical reactor batching switching
• Pharmaceutical CIP/SIP tu system
• Kev faib zaub mov thiab dej haus ntau lawm kab
• Lub zog tshiab roj teeb ua kua cua txias thermal tswj
• Hauv paus tsev kawm ntawv cua txias/kub sib tov
Kev xa khoom thiab tom qab- muag:
• Spot DN15-DN100 72h xa khoom
• Muab CAD/3D qauv, EN 10204 3.1 ntaub ntawv pov thawj
• 24-lub hlis warranty, thoob ntiaj teb kev pab cuam debugging
Yog xav paub ntxiv txog stainless hlau cua actuated pob valve xaiv, accessory ua ke, los yog tshwj xeeb txheej, thov hu rau WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD.
Hais txog peb:

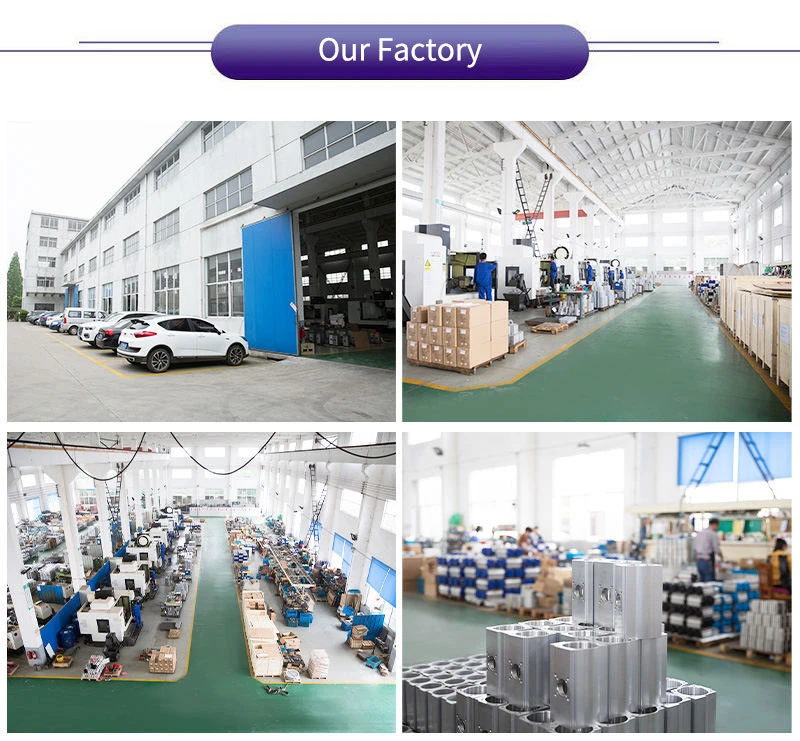

Wuxi Xinming Auto- tswj Valves Co., Ltd. tshwj xeeb hauv kev tsim ISO9001-certified XM series pneumatic actuators thiab tsis siv neeg tswj li qub, ua raws li ISO5211/DIN3337/VDI/VDE-3845/NAMUR cov qauv. Nrog rau R & D muaj peev xwm ua tau zoo thiab cov chaw tsim khoom, peb cov khoom ua haujlwm muaj ntau yam kev lag luam xws li roj & roj, tshuaj, thiab cov chaw tsim hluav taws xob, embodying peb txoj kev mob siab rau "Technology First, Quality Excellence" los ntawm cov kev daws teeb meem tshiab thiab kev ua tau zoo.
