Khoom Taw Qhia
Hauv ntau lub tshuab kav dej, cov tuam txhab lag luam feem ntau ntsib teeb meem xws li qhib lub valve qeeb thiab kaw, kev ua haujlwm tsis zoo ntawm phau ntawv ua haujlwm, muaj kev pheej hmoo txaus ntshai, cov nqi kho mob siab, thiab tsis txaus automation. Cov teeb meem no tsis yog tsuas yog cuam tshuam rau kev tsim khoom tab sis kuj tuaj yeem ua rau muaj kev nyab xeeb.
Lub pneumatic pob valve yog lub siab -kev ua haujlwm valve tswj cov cuab yeej tsim los daws cov ntsiab lus mob. Tsav los ntawm pneumatic actuator, nws ua tiav nrawm, ruaj khov, thiab tswj cov kua dej tsis siv neeg thiab tau siv dav hauv ntau yam kev lag luam piping systems.
Pneumatic pob valve yog lub pob valve nruab nrog pneumatic actuator. Kev ua haujlwm ceev ntawm pneumatic actuator yog ceev heev. Qhov hloov ceev tshaj plaws yog 0.05 vib nas this / lub sijhawm, yog li nws feem ntau hu ua pneumatic ceev - txiav pob valve.
Lub pneumatic pob valve yog ib qho kev tswj tsis siv neeg valve uas muaj lub pob valve lub cev thiab lub pneumatic actuator. Cov cua compressed tsav lub actuator tig 90 degree, ua tiav sai qhib lossis kaw ntawm lub valve.
Piv nrog rau cov phau ntawv qhia li qub, pneumatic pob li qub muaj cov chaw taws teeb tswj, kev ua haujlwm tsis siv neeg, thiab cov lus teb ceev ceev, ua rau lawv tshwj xeeb tshaj yog tsim rau cov kav xa dej uas yuav tsum tau hloov pauv lossis tsis siv neeg tswj.

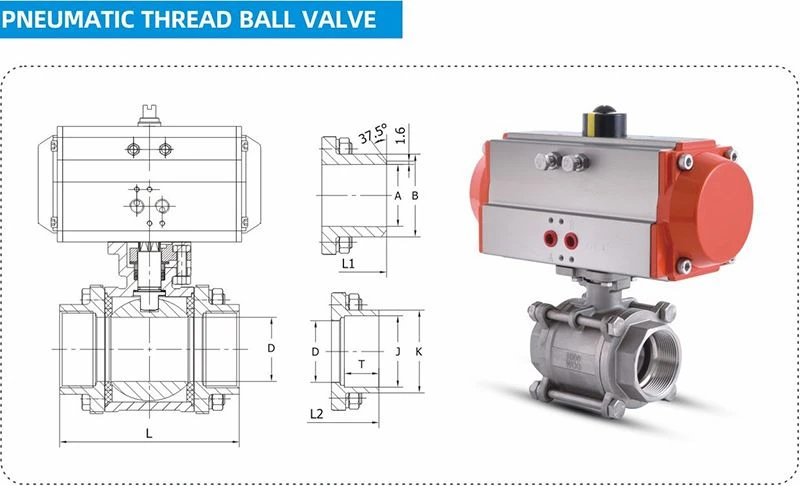

Peb - thooj bolted lub cev tuaj sib nrug rau kev nkag mus rau cov khoom siv sab hauv yam tsis muaj kev sib txuas cov yeeb nkab thiab tshem tawm lub valve ntawm koj cov kab. Lawv lub pob- valve tsim tso cai rau cov li qub no ua tiav cov nqi ntws siab dua li lwm cov huab cua- tsav li qub. Lawv ua haujlwm ntawm compressed cua kom pib thiab nres ntws. Koj yuav tsum tswj cov huab cua mus rau lub actuator siv xws li cov hluav taws xob tsav valve lossis phau ntawv qhib / tawm valve (tsis suav nrog). Cov li qub no yuav tsum muaj qhov tsawg kawg nkaus poob ntawm qhov nkag thiab qhov hluav taws xob rau kev ua haujlwm; qhov siab ntawm cov dej ntws yuav tsum siab tshaj qhov siab ntawm cov dej ntws. Lub cev yog 316 stainless hlau rau zoo heev corrosion kuj. Tag nrho cov li qub muaj qhov taw qhia qhov muag pom nyob rau sab saum toj ntawm tus actuator uas qhia tias lub valve qhib lossis kaw.
Ib leeg- actuators tsuas yog xav tau cua siab los qhib lub valve; lawv cia li caij nplooj ntoos hlav kaw thaum huab cua tig tawm. Cov li qub no feem ntau raug kaw tshwj tsis yog ua kom muaj zog. Muab ob npaug rau- ua haujlwm actuators xav tau cua siab kom qhib thiab kaw lub valve. Thaum actuated, cov li qub nyob twj ywm actuated kom txog thaum huab cua siab siv, yog li ntawd lawv tsis muaj lub valve pib txoj hauj lwm.

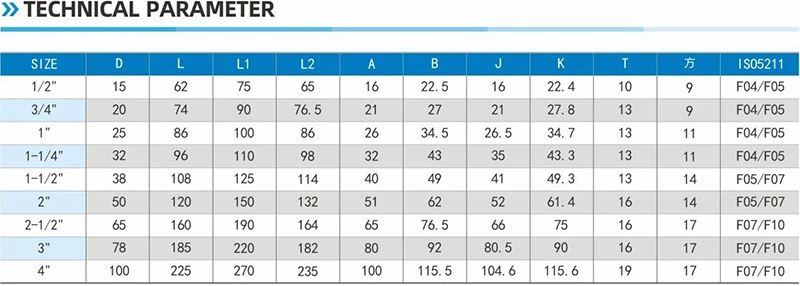

Khoom Specifications
| Khoom npe | Pneumatic Pob Valves |
| Hom lub npe | XM, thiab OEM kuj txais |
| Npauj Npaim Valve loj | 50mm-900 hli |
| Hom Valve | Pob Valve |
| Txoj kev Actuation | Pneumatic Actuator |
| Xov Standard | BSPT/BSP/NPT/DIN/JIS/RC/G |
| Kev Ua Haujlwm Siab | PN63/1000WOG |
| Ua haujlwm kub | -20℃- 280 degree |
| Siv tau Media | Dej, roj, roj |
| Tsim thiab tsim khoom | GB/T-12224/ANSI B16.34 |
| Kev tshuaj xyuas thiab kuaj | GB / T-13927 / API 598 |
| Cua Siab Test | 0.8MPA |
| Tsim Cov Ntsiab Lus | Kev tawg- pov thawj valve qia, tag nrho bore |
| Daim ntawv pov thawj | CE, ATEX, SIL3, ISO9001: 2016 |
Pneumatic Pob Valve Daim Ntawv Thov
Pneumatic pob valve tuaj yeem siv rau ntau yam flammable, corrosive, plua plav, muaj zog magnetic teb, hluav taws xob, kev co thiab corrosion nyob hauv tsev lossis sab nraum zoov ib puag ncig, dav siv hauv hluav taws xob, petrochemical, metallurgy, roj av, natural gas, nroog, kev tsim kho, dej, tshuaj lom neeg kev lag luam, roj refining, mining, fais fab nroj tsuag, metallurgy, kev tsim kho, tshuaj, tshuaj, thiab lwm yam.
Packing & Delivery
Packing nthuav dav:
1). Yog tias muaj ntau, cov ntaub ntawv plywood
2). Yog tias muaj me me, Carton lossis Plywood pallet
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
|
Quantity (Units) |
1-50 |
51-1000 |
＞1001 |
|
Est. Sijhawm (hnub) |
Cov khoom hauv Tshuag |
30 |
Yuav tsum sib tham |
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Zoo heev tom qab- kev pabcuam
5) Ntawm -txoj kev txhawb nqa
6) Lub sijhawm xa khoom sai
FAQ
Q 1: Cov nqe lus them nqi muaj peev xwm?
A1: T / T, L / C, Western Union.
Q 2: Cov nqe lus ua lag luam?
A 2: Raws li Incoterms 2010, feem ntau nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q 3: Kev lees paub ntawm kev hais lus?
A3: Hauv 30 hnub.
Q 4: Hom kev xa khoom xa tuaj?
A 4: Los ntawm hiav txwv, los ntawm huab cua, los ntawm kev nthuav qhia, lossis los ntawm kev tsheb ciav hlau.
Q 5: Warranty?
A 5: Ib xyoos lav zoo pub dawb, thiab kev pabcuam them tag nrho.
Q 6: Kev teeb tsa thiab kev cob qhia?
A 6: ib txwm yees duab qhia rau kev teeb tsa. Yog tias tsim nyog, them nyiaj txawv teb chaws engineering muab kev pabcuam.
