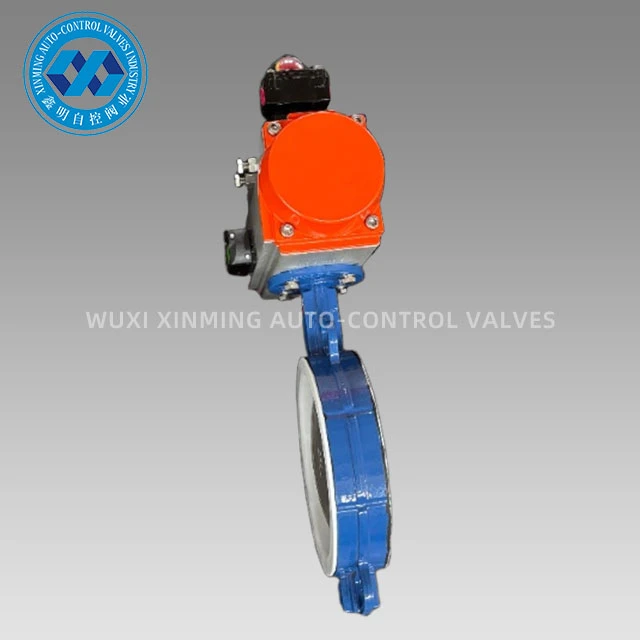

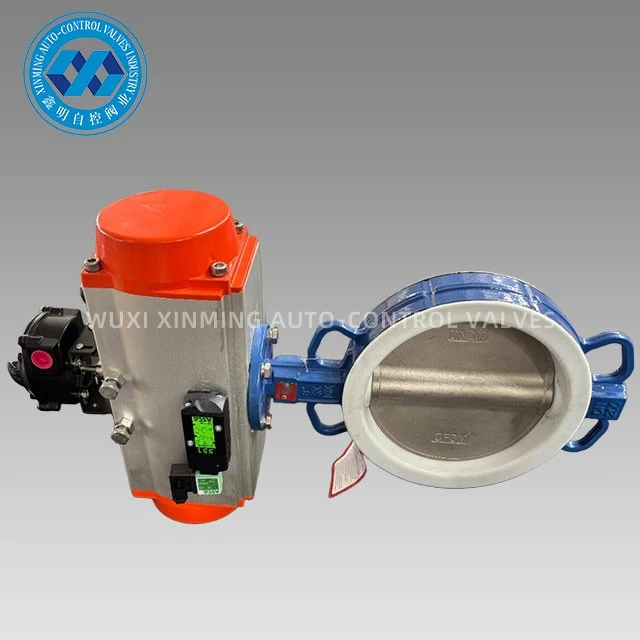

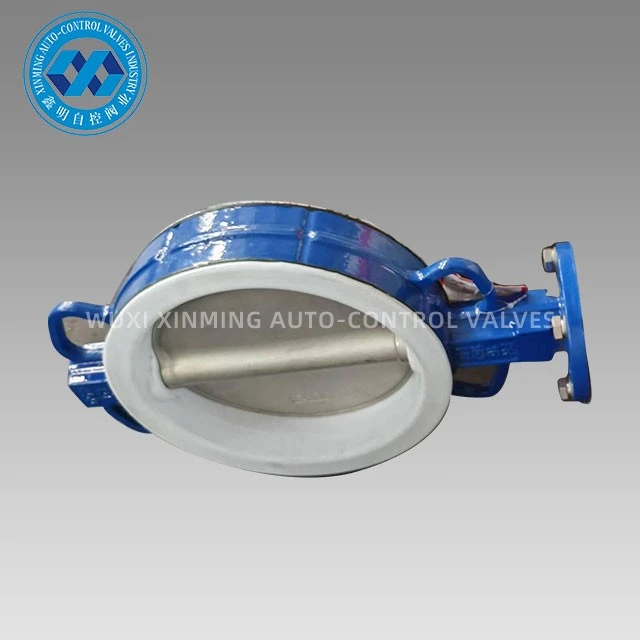

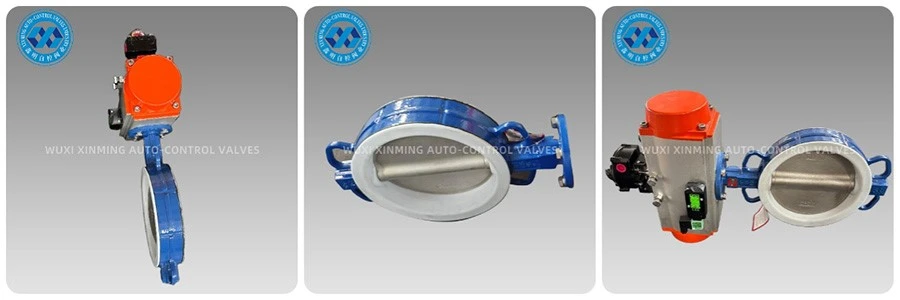

Lub pneumatic ua haujlwm npauj npaim valve yog qhov txhim khu kev qha thiab muaj txiaj ntsig zoo tswj kev daws teeb meem tsim los rau kev ua haujlwm ntawm -off thiab throttling kev ua haujlwm hauv cov txheej txheem niaj hnub no. Tsav los ntawm compressed cua, lub valve muab du, ceev, thiab meej ua haujlwm. Nws yog qhov zoo tagnrho rau cov ntawv thov uas xav tau kev tswj kom huv, kev saib xyuas tsawg, thiab ua haujlwm siab.
Tsis zoo li tus qauv phau ntawv valve, lub pneumatic tswj npauj npaim valve no ua ke nrog lub siab -kev ua tau zoo actuator uas ua kom ruaj khov torque tso zis thiab ua haujlwm zoo ib yam nyob rau hauv qhov sib txawv ntawm huab cua. Nws tuaj yeem raug teeb tsa raws li lub cev muaj zog npauj npaim valve nrog actuator, muab ntau yam kev tswj kev xaiv rau kev teeb tsa sib txawv.
Thaum saib tus npauj npaim valve nrog pneumatic actuator ua haujlwm, koj yuav pom nws cov qauv compact, kev sib hloov ceev, thiab kev ruaj ntseg sealing - tag nrho ua tiav los ntawm lub quarter yooj yim - tig mechanism. Qhov no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev tswj hwm lub tshuab uas muaj kev nyab xeeb, kev ua tau zoo, thiab qhov tseeb yog qhov tseem ceeb.
Product Advantages:
Kev tsim kho ruaj khov
Ua los ntawm stainless hlau lossis carbon hlau nrog corrosion- tiv taus txheej.
High Automation Efficiency
Lub pneumatic npauj npaim actuator tso cai rau cov lus teb ceev ceev rau kev khiav dej num thiab kaw -tawm.
Compact & Lub teeb yuag
Yooj yim rau nruab, tswj, thiab koom ua ke rau hauv cov kav dej sib txuas.
Txhim khu kev sealing
Mos thiab hlau sealing kev xaiv muaj rau qhov sib txawv ntawm qhov kub thiab txias.
Custom Configurations
Tau tshaj cov keyboards txwv, solenoid li qub, thiab positioners kom tiav pneumatic tswj kev daws teeb meem.
Technical Specifications:
| Yam khoom | Specification |
| Hom Valve | Pneumatic Ua Haujlwm Npauj Npaim Valve |
| Qhov Loj | DN50 - DN1200 (2 "- 48") |
| Khoom siv lub cev | Stainless hlau, WCB, cam khwb cia hlau |
| Khoom siv Disc | SS304 / SS316 / Duplex Stainless hlau |
| Khoom siv zaum | EPDM, NBR, PTFE, Hlau zaum |
| Ua Haujlwm Siab | PN10 / PN16 / ANSI 150LB |
| Ua haujlwm kub | -20℃rau +425 degree |
| Hom Actuator | Muab ob npaug rau- ua yeeb yam lossis caij nplooj ntoos hlav- rov qab Pneumatic Actuator |
| Cua Supply Siab | 0.4-0.7 MPa |
| Hom kev sib txuas | Wafer, Lug, lossis Flanged End |
| Tswj kev xaiv | Solenoid valve, positioner, txwv hloov, phau ntawv override |
Khoom siv:
Lub pneumatic ua haujlwm npauj npaim valve yog dav siv thoob plaws:
Kev kho dej thiab kev siv tshuab - rau kev tswj xyuas kom meej thiab ceev ceev -tawm.
Kev lag luam tshuaj thiab petrochemical - resistant rau corrosive kua thiab gases.
Kev tsim khoom noj khoom haus thiab dej haus - cov qauv tsim muaj rau kev tu cev.
Kev tsim hluav taws xob thiab HVAC systems - ua kom ntseeg tau tias huab cua, roj, thiab chav tswj tau.
Pharmaceutical thiab biotech nroj tsuag - qhov chaw huv thiab automation tseem ceeb heev.
Kev Tswj Xyuas Zoo:
Ntawm WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD., kev lees paub zoo pib nrog kev tshuaj xyuas cov khoom thiab txuas ntxiv los ntawm kev siv tshuab, sib dhos, thiab kev sim ua haujlwm. Txhua lub pneumatic npauj npaim valve tau dhau los:
- Kev ntsuam xyuas huab cua to (0% tolerance)
- Torque thiab voj voog endurance kuaj
- Siab thiab kub tsis kam validation
- Surface thiab txheej tshuaj xyuas kom ntseeg tau tias muaj kev tiv thaiv corrosion
Txhua lub valve ua raws li ISO, CE, thiab ATEX cov qauv, ua kom muaj kev nyab xeeb thiab txhim khu kev qha thoob ntiaj teb.
Ntim & Xa khoom:
Txhua lub tshuab pneumatic ua haujlwm npauj npaim valve tau ntim ruaj ntseg hauv cov dej noo-cov ntaub ntawv pov thawj thiab cov ntaub ntawv ntoo los tiv thaiv kev co thiab kev puas tsuaj thaum thauj. Peb kuj muab customized ntim thiab labeling rau export kom tau raws li tus neeg yuav tsum tau logistics.
Peb ua kom ceev ceev xa los ntawm hiav txwv, huab cua, lossis kev xa khoom xa tuaj raws li koj qhov project.
Tom qab -Kev Pabcuam Muag:
Peb pab pawg kws tshaj lij muaj kev txhawb nqa kev tshaj lij, los ntawm kev xaiv cov qauv mus rau kev taw qhia kev teeb tsa. Yog tias muaj teeb meem tshwm sim, peb cov engineers muab kev pab cuam sai sai lossis ntawm - qhov chaw pabcuam. Hloov cov khoom siv thiab cov khoom siv tu txhua lub sijhawm kom ntseeg tau tias koj lub pneumatic tswj npauj npaim valve txuas ntxiv ua haujlwm zoo.
Nrog ntau tshaj 15 xyoo ntawm kev paub hauv valve automation, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. tau dhau los ua cov chaw tsim khoom ntseeg siab tshwj xeeb hauv pneumatic npauj npaim li qub, actuators, thiab tsis siv neeg khiav tswj tshuab. Peb cov chaw tsim khoom muaj xws li CNC machining, precision xeem cov cuab yeej, thiab cov kab sib dhos siab heev - kom ntseeg tau tias txhua lub valve ua tau raws li cov qauv thoob ntiaj teb kev ntseeg tau thiab kev ua tau zoo.
