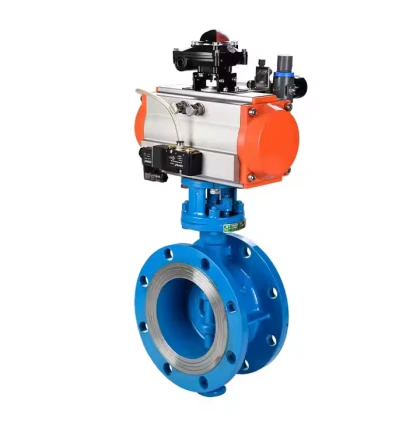

Pneumatic huv npauj npaim valve yog tsim tshwj xeeb rau kev lag luam xws li khoom noj khoom haus, tshuaj, thiab bioengineering uas yuav tsum muaj kev huv huv heev. Hauv cov kev lag luam no, cov txheej txheem tsim khoom yuav tsum ua kom tau raws li cov xwm txheej nruj xws li kev tsis muaj menyuam, tsis muaj qhov seem, thiab kev tu yooj yim. Thaum tsim thiab tsim cov npauj npaim valve no, cov khoom siv uas ua tau raws li cov qauv kev nyiam huv raug xaiv thiab cov qauv uas sib haum nrog lawv tau txais, uas tuaj yeem ua kom ntseeg tau tias yuav tsis muaj kev phom sij thaum lub sijhawm thauj mus los nruab nrab.
Core tsim cov cai
Khoom siv kev ruaj ntseg lav
Valve lub cev thiab valve phaj: Txais 316L stainless hlau khoom. Cov hlau no muaj cov yam ntxwv qis carbon tsawg thiab zoo heev corrosion kuj. Nws nto yog kho los ntawm electrolytic polishing, thiab qhov roughness ntawm Ra tsawg dua los yog sib npaug rau 0.8μm, zoo tiv thaiv microbial txuas thiab kev loj hlob thiab ua kom muaj kev nyiam huv thiab kev nyab xeeb thaum siv.
Cov ntsaws ruaj ruaj: Xaiv cov zaub mov- qib EPDM, silica gel lossis PTFE cov ntaub ntawv. Cov ntaub ntawv sealing no tsis yog tsuas yog tsis yog - tshuaj lom tab sis kuj tuaj yeem siv ruaj khov hauv qhov kub ntawm -20℃txog 150℃. Tib lub sijhawm, lawv ua raws li FDA / EC1935 cov qauv, muab kev ruaj ntseg sealing lav rau kev thauj mus los nruab nrab.
Kev xav txog kev ua kom zoo dua qub
Tuag-angle-dawb qauv: Ua kom muaj kev hloov pauv ntawm lub phaj valve thiab lub valve lub cev yam tsis muaj grooves lossis qhov khoob. Qhov kev tsim qauv no tshem tawm qhov muaj peev xwm ntawm cov seem nruab nrab thiab muab kev txhawb zog rau qhov siab - qhov chaw huv huv ntau lawm.
Detachable tsim: Lub rooj zaum valve thiab lub cev lub cev tau txais kev ceev- tso tawm txoj kev sib txuas, uas yooj yim rau CIP (kev ntxuav hauv qhov chaw) thiab SIP (steam sterilization) ua haujlwm. Nws tuaj yeem ua tau zoo thiab ua tiav huv thiab ua kom tsis muaj menyuam kom ntseeg tau tias cov cuab yeej ua tau raws li cov qauv kev nyiam huv.
Kev xaiv txoj kev sib txuas
Clamp ceev- nruab kev sib txuas: Txhawb clamp ceev-nruab txoj kev xws li Tri-Clamp thiab DIN11851. Los ntawm kev nyiam huv clamps, kev sib txuas nrog lub raj xa dej tuaj yeem ua tiav sai sai yam tsis siv cov bolts, kom tsis txhob muaj teeb meem kev ua qias tuaj uas yuav tshwm sim los ntawm kev sib txuas bolt. Kev ua haujlwm yog yooj yim thiab huv si.
Welded kev twb kev txuas: Rau txoj kev sib txuas ncaj qha siv argon arc vuam ntawm lub raj xa dej thiab lub valve lub cev, xoom- cov nyhuv sealing tuaj yeem ua tiav. Nws yog tshwj xeeb tshaj yog haum rau aseptic systems uas tsis tshua muaj siab sealing yuav tsum tau, kom muaj kev ruaj ntseg thiab stability ntawm nruab nrab kev thauj mus los.
