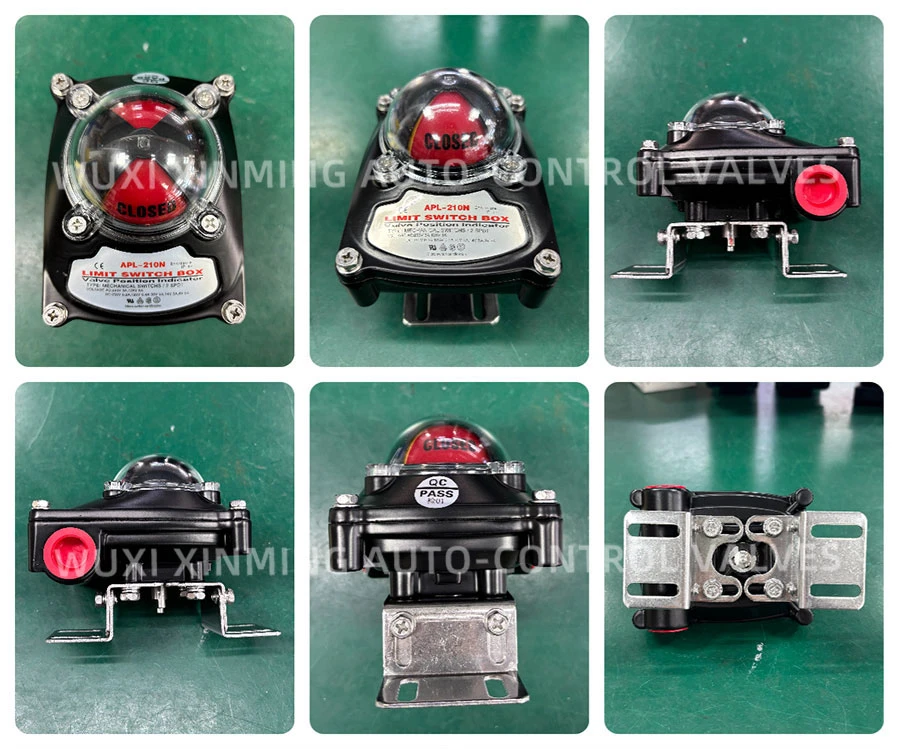

APL-210N txwv hloov lub thawv yog tsim los txhim khu kev qha valve txoj hauj lwm tawm tswv yim hauv pneumatic actuator systems siv hauv kev lag luam automation. Nws muab cov lus qhia meej qhib / kaw thiab hluav taws xob hloov hluav taws xob los txhawb kev saib xyuas thiab tswj lub quarter-tig li qub xws li pob li qub thiab npauj npaim li qub.

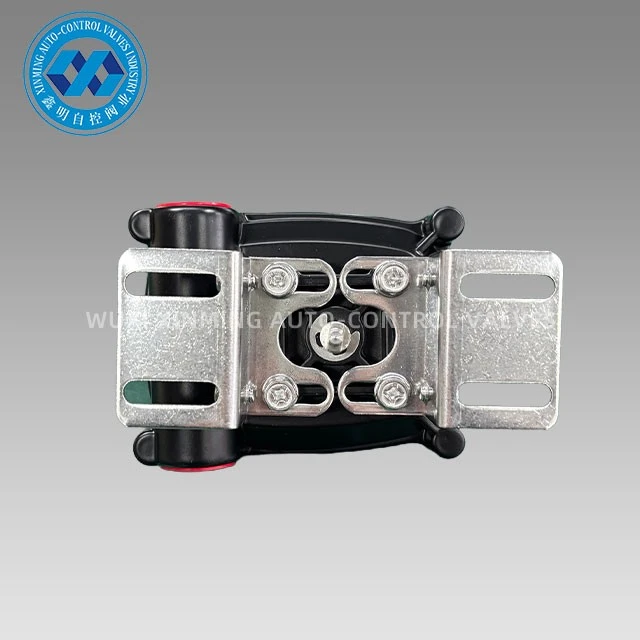

Mounted ncaj qha rau ntawm tus actuator, lub cuab yeej hloov pauv lub valve txav mus rau hauv cov khoom siv hloov pauv. Cov teeb liab no feem ntau raug xa mus rau PLC lossis DCS cov tshuab, ua kom muaj tseeb qhov tseeb ntawm qhov kev lees paub hauv cov txheej txheem kev tswj hwm thiab kev nyab xeeb cuam tshuam kev siv.
Khoom Specifications
| Qauv | APL-210 N |
| Khoom siv | Aluminium Diecasting / Stainless Hlau (304/316) |
| Plhaub |
IP67 |
| Ambient kub | -25℃~ +85 degree |
| Qhov taw qhia qhov chaw | ntawm -daj; tawm -red |
| Cable nkag | 2-1/2 NPT; PT1/2; PF 1/2; M20; PIB 13.5 |
Kev tsim vaj tsev thiab kev tiv thaiv ib puag ncig
Lub kaw lus muaj nyob rau hauv txhuas tuag- nrum los yog stainless hlau (304/316), nyob ntawm corrosion thiab durability yuav tsum tau.
- Aluminium vaj tse: kev pabcuam kev lag luam
- Stainless hlau vaj tsev: corrosive los yog offshore ib puag ncig
IP67 tiv thaiv kev ntsuam xyuas ua kom muaj kev tiv thaiv tiv thaiv plua plav tawm thiab kev tso dej ib ntus, ua rau nws tsim nyog rau kev teeb tsa sab hauv.
Mechanical Position Feedback System
Lub cam sab hauv-tsav mechanism muab ncaj qha actuation ntawm mechanical switches raws li kev sib hloov valve.

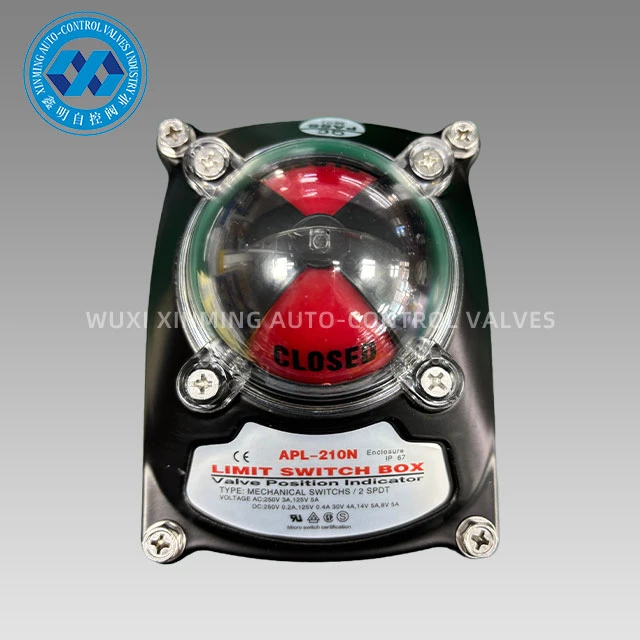

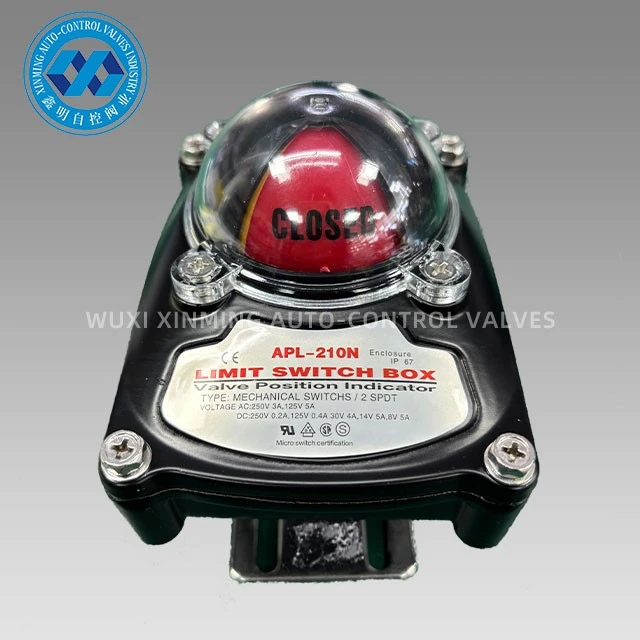

Qhov taw qhia txoj hauj lwm yog muab los ntawm qhov taw qhia qhov muag:
- Yellow: valve qhib
- Liab: valve kaw
Qhov no tso cai rau kev txheeb xyuas ncaj qha ntawm qhov xwm txheej valve yam tsis muaj kev tswj hwm qhov system nkag.

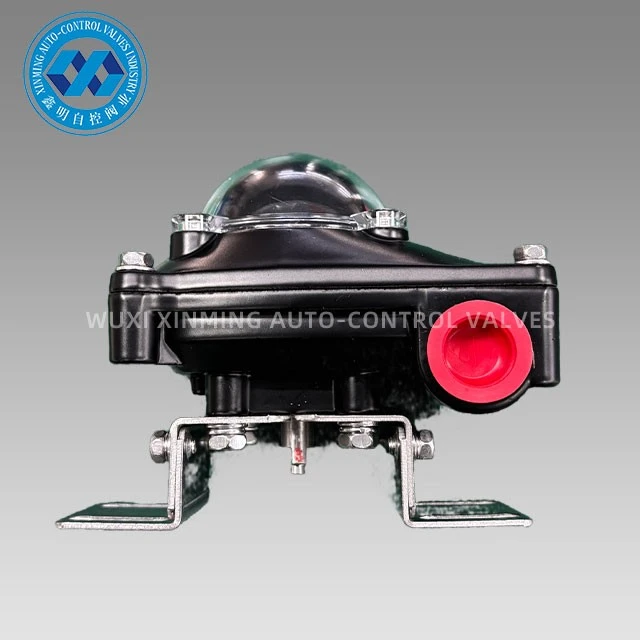

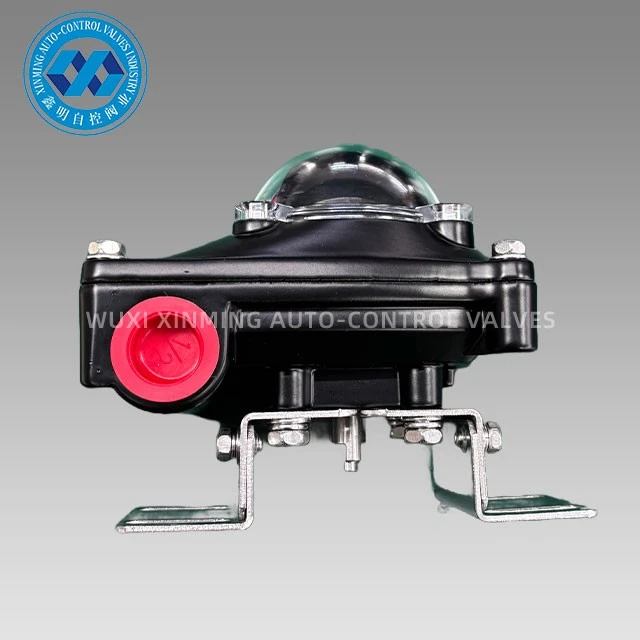

Hluav taws xob sib xyaw thiab Cable nkag
APL-210N txhawb nqa ntau qhov kev nkag mus rau cable rau kev teeb tsa thoob ntiaj teb:
- 2 × 1/2" NPT
- PIB 1/2
- PF 1/2
- M20
- PIB 13.5
Qhov kev hloov pauv no txhawb kev koom ua ke rau hauv cov qauv sib txawv hauv cheeb tsam thiab cov actuator tswj architectures.
Daim Ntawv Thov Scope
APL-210N yog siv nyob rau hauv valve automation systems yuav tsum tau txhim khu kev qha txoj hauj lwm tawm tswv yim, xws li:
- Pneumatic actuator sib dhos
- Lub quarter- tig valve systems
- Roj thiab roj pipeline infrastructure
- Tshuaj ua cov nroj tsuag
- Dej thiab dej khib nyiab systems
- General kev lag luam txheej txheem tswj
Mechanical txwv hloov lub thawv tseem siv dav hauv kev lag luam automation vim lawv ua siab ntev rau thaj chaw, kev hloov pauv tus cwj pwm, thiab kev sib raug zoo nrog tus qauv actuator interfaces. APL-210N yog qhov chaw rau cov ntawv thov uas muaj kev ruaj ntseg thiab kev ua haujlwm zoo ib yam yog qhov tseem ceeb tshaj qhov kev kuaj mob siab tshaj plaws.
