TECHNICAL CHARACTERISTICS
Intergrading nrog cov qauv tshwj xeeb, cov thev naus laus zis siab tshaj, kev tsim khoom raug, kev siv nyiaj txiag zoo, txuag chaw, tsim qauv, XM series Tuam Tshoj ib leeg ua yeeb yam Rack thiab Pinion Actuator tuaj yeem nruab lwm yam khoom siv ncaj qha kom nce kev ua haujlwm thiab kev lag luam.
Cov ntaub ntawv dav dav: Qhov siab tshaj plaws ntsuas cua siab yog 8 bar thiab qhov tsawg kawg nkaus: cua siab yog 2.5 bar.
Kev khiav hauj lwm kub: Txuj: -20 degree C (-4 degree F) rau ntxiv rau 80 degree C (ntxiv rau 176 degree F)
Kub kub: -15 degree (ntxiv rau 5 degree F) rau ntxiv rau 150 degree (ntxiv rau 302 degree F)
Tsis tshua muaj kub: -40 degree (-40 degree F) rau ntxiv rau 80 degree (ntxiv rau 176 degree F)
Siv tau cov pa roj: ntxuav cov roj uas tsis muaj corrosive uas tau qhuav lim los yog lubricated.
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 10000 units ib hlis Pneumatic Rotary Actuator
Packing & Delivery
Packing nthuav dav: 1). cais thawv nrog npuas ntim hauv
2). plywood rooj plaub rau kev xa khoom hiav txwv
3). Plywood pallet rau huab cua xa khoom
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
|
Quantity (Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Sijhawm (hnub) |
Cov khoom hauv Tshuag |
7 |
20 |
Yuav tsum sib tham |
Khoom Taw Qhia

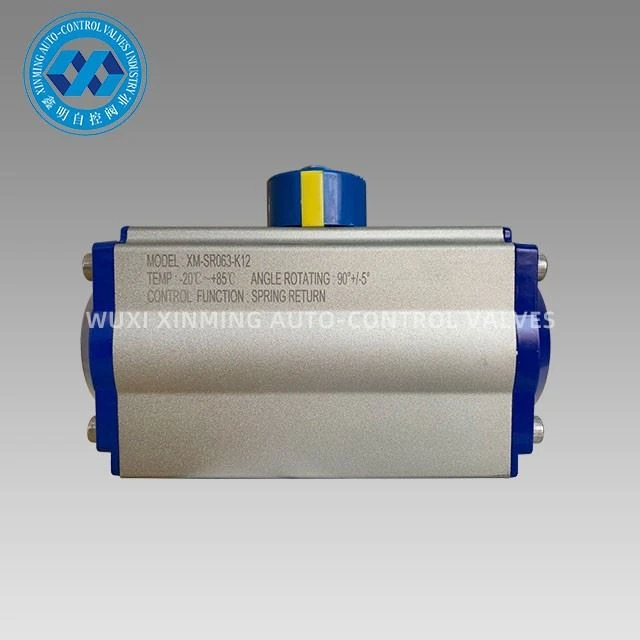

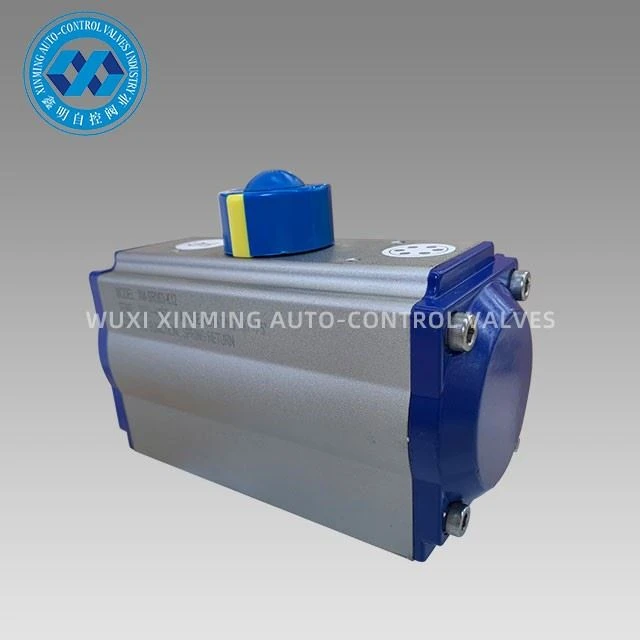

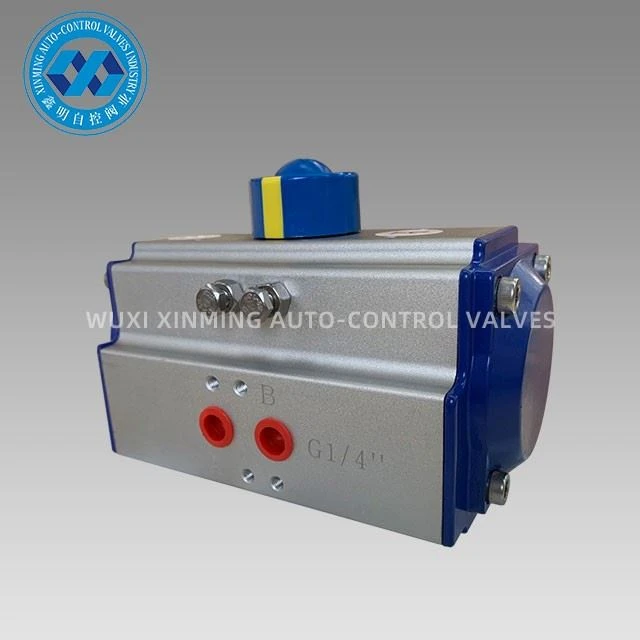

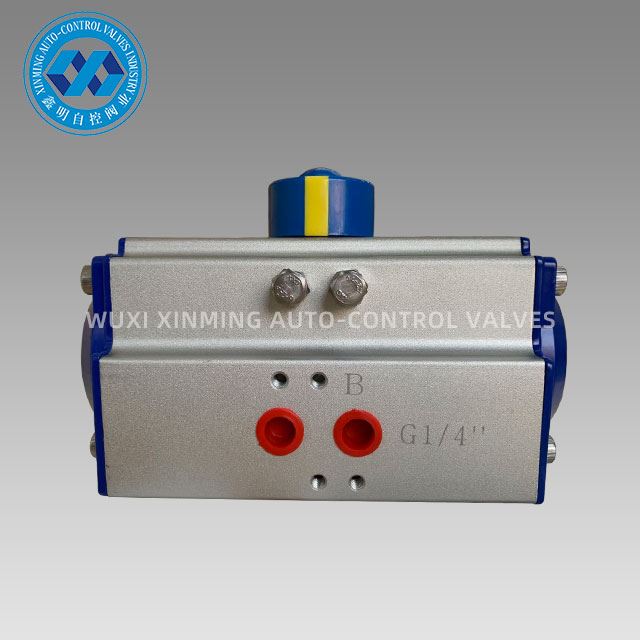

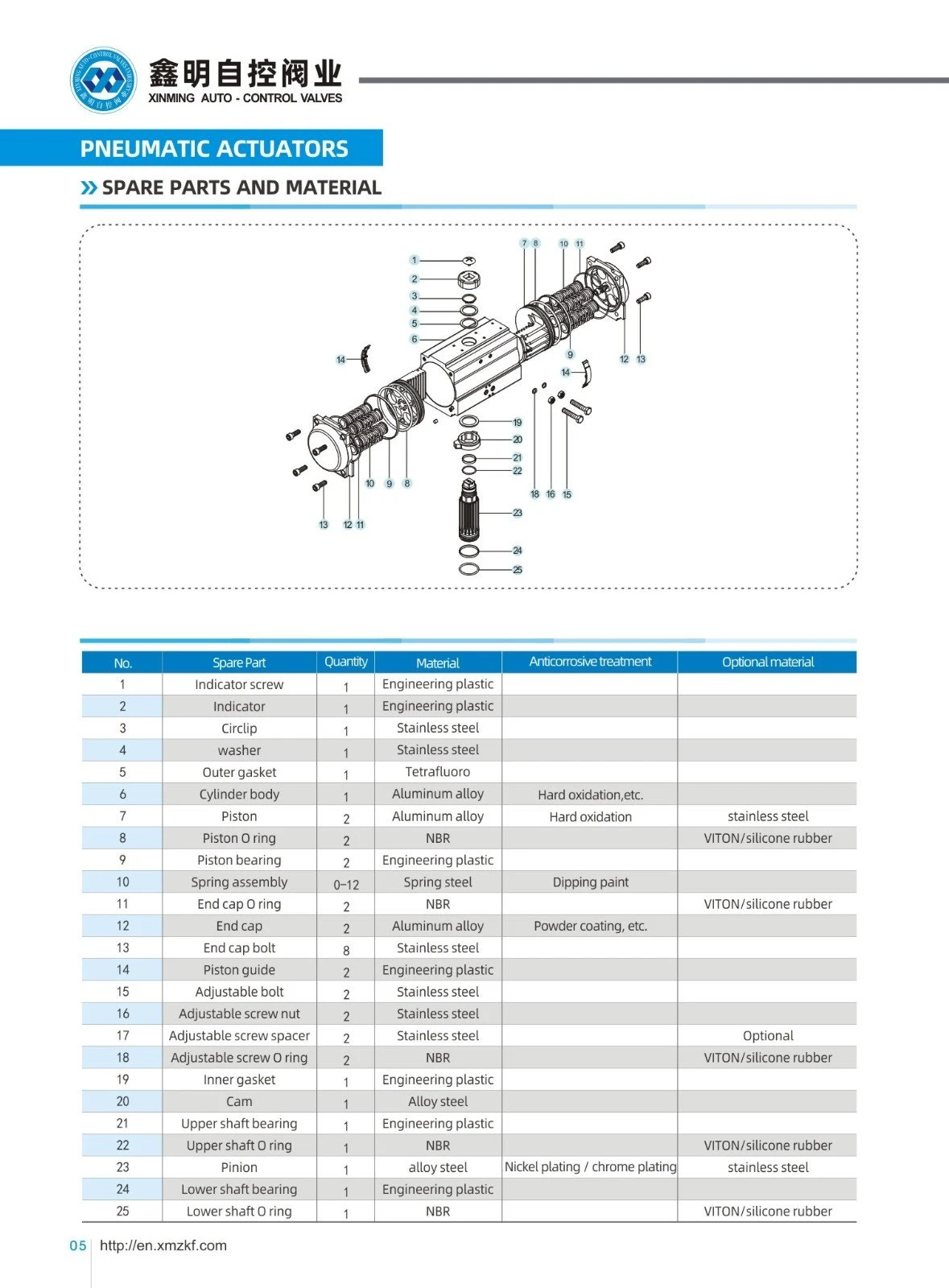

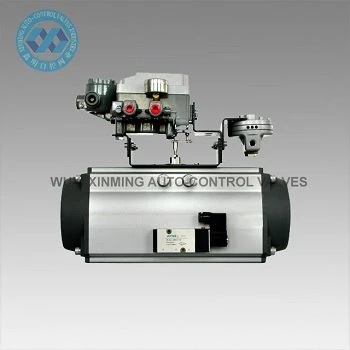

XM series Tuam Tshoj ib leeg ua yeeb yam Rack thiab Pinion Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau. Precision tuag-casting aluminium alloy ob-rack pistons nrog nyuaj oxidation kev kho mob txhim kho lub kaum sab xis qhov tseeb thiab lub luag haujlwm lub neej. Lub cev actuator nrog nyuaj-oxidation tuaj yeem zam qhov khawb tau zoo.
Qhov zoo
1) Tag nrho cov khoom tseem ceeb yuav raug kho nrog nyuaj-anodization los txhim kho lub zog mus rau qib zoo kom ntseeg tau tias kev ua haujlwm zoo thiab lub neej ua haujlwm.
2) Tag nrho cov txheej txheem yog ib zaug-tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.
Daim ntawv thov
Tuam Tshoj ib leeg ua yeeb yam Rack thiab Pinion Actuator tuaj yeem tsim rau ntau yam flammable, corrosive, plua plav, muaj zog hlau nplaum, hluav taws xob, kev co corrosive ib puag ncig sab hauv tsev lossis sab nraum zoov, uas tau siv dav hauv kev lag luam hluav taws xob, petrochemical, metallurgy, roj av, roj, lub zos, kev tsim kho, dej ntws, tshuaj lom neeg kev lag luam, roj refining, mining, fais fab nroj tsuag, metallurgy, architecture, tshuaj, zaub mov, roj, kev tshawb fawb, thiab lwm yam.

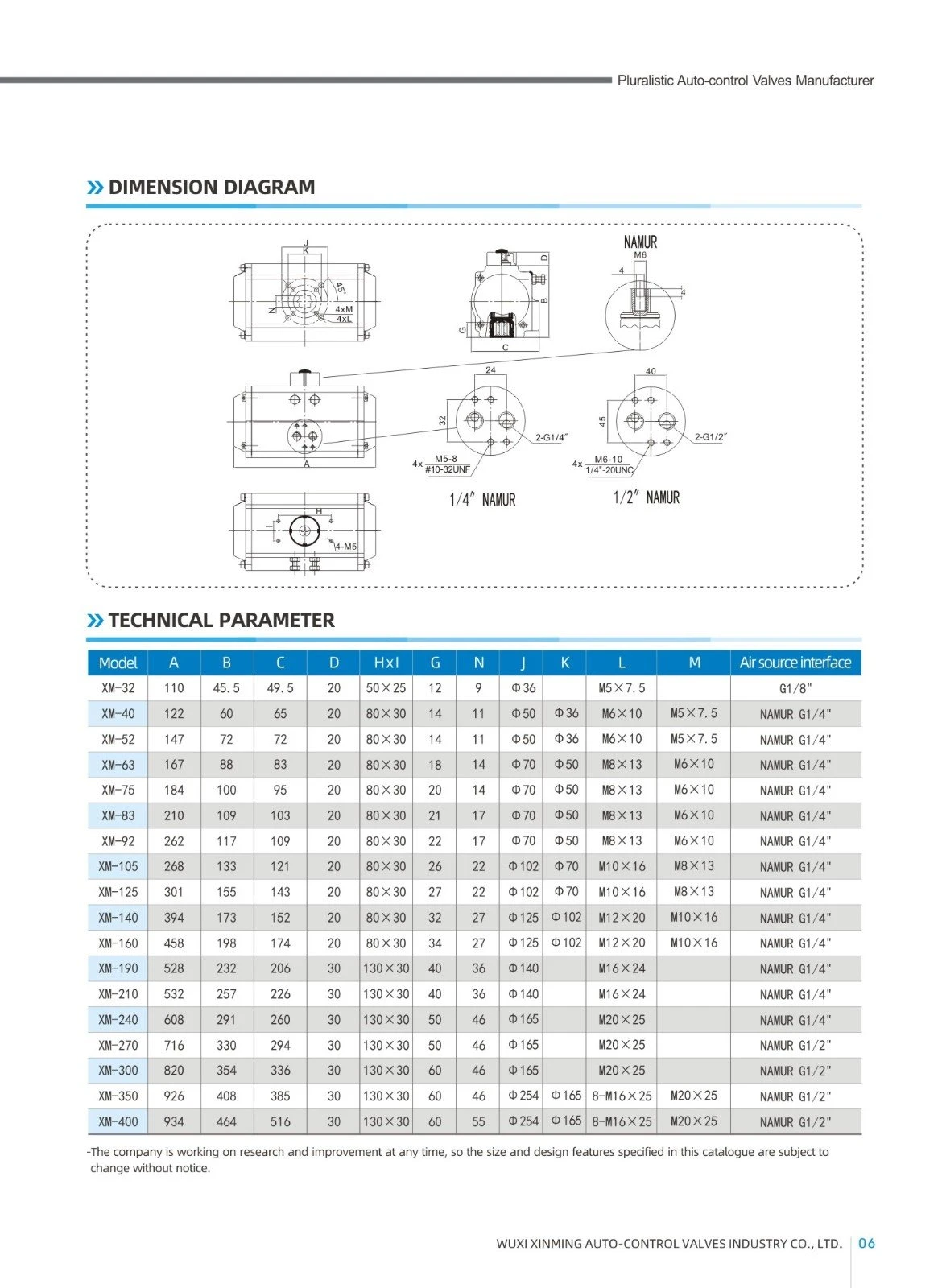

Technical Parameter
XM PNEUMATIC RACK THIAB PINION ACTUTOR OUTPUT TORQUE TABLE
|
XM series Caij Nplooj Hlav Rov Qab Pneumatic Actuator |
|||||||||||||
|
Qauv |
Caij nplooj ntoos hlav QTY |
Caij nplooj ntoos hlav Output Torque (Nm) |
Input cua siab (unit: bar) |
||||||||||
|
3 |
4 |
5 |
6 |
7 |
|||||||||
|
Cua siab tso zis torque (Nm) |
|||||||||||||
|
0degree |
90degree |
0degree |
90degree |
0degree |
90degree |
0degree |
90degree |
0degree |
90degree |
0degree |
90degree |
||
|
XM-SR52 |
5 |
4.0 |
6.2 |
8.1 |
5.8 |
12.1 |
9.8 |
|
|
|
|
|
|
|
6 |
4.7 |
7.4 |
7.3 |
4.6 |
11.3 |
8.6 |
|
|
|
|
|
|
|
|
7 |
5.5 |
8.7 |
6.5 |
3.3 |
10.5 |
7.3 |
14.5 |
11.3 |
|
|
|
|
|
|
8 |
6.3 |
9.9 |
|
|
9.7 |
6.1 |
13.7 |
10.1 |
|
|
|
|
|
|
9 |
7.1 |
11.2 |
|
|
8.9 |
4.8 |
12.9 |
8.8 |
16.9 |
12.8 |
|
|
|
|
10 |
7.9 |
12.4 |
|
|
8.1 |
3.6 |
12.1 |
7.6 |
16.1 |
11.6 |
20.1 |
15.6 |
|
|
11 |
8.7 |
13.6 |
|
|
7.3 |
2.4 |
11.3 |
6.4 |
15.3 |
10.4 |
19.3 |
14.4 |
|
|
12 |
9.5 |
14.9 |
|
|
|
|
10.5 |
5.1 |
14.5 |
9.1 |
18.5 |
13.1 |
|
|
XM-SR63 |
5 |
6.8 |
10.4 |
14.9 |
11.3 |
22.1 |
18.5 |
|
|
|
|
|
|
|
6 |
8.2 |
12.5 |
13.5 |
9.2 |
20.7 |
16.4 |
|
|
|
|
|
|
|
|
7 |
9.6 |
14.6 |
12.1 |
7.1 |
19.3 |
14.3 |
26.5 |
21.5 |
|
|
|
|
|
|
8 |
10.9 |
16.7 |
|
|
18.0 |
12.2 |
25.2 |
19.4 |
|
|
|
|
|
|
9 |
12.3 |
18.9 |
|
|
16.6 |
10.0 |
23.8 |
17.2 |
31.1 |
24.5 |
|
|
|
|
10 |
13.7 |
20.9 |
|
|
15.2 |
8.0 |
22.4 |
15.2 |
29.7 |
22.5 |
36.9 |
29.7 |
|
|
11 |
15.0 |
22.9 |
|
|
|
|
21.1 |
13.2 |
28.4 |
20.5 |
35.6 |
27.7 |
|
|
12 |
16.4 |
25.0 |
|
|
|
|
19.7 |
11.1 |
27.0 |
18.4 |
34.2 |
25.6 |
|
|
XM-SR75 |
5 |
10.0 |
15.0 |
20.0 |
15.0 |
30.0 |
25.0 |
|
|
|
|
|
|
|
6 |
12.0 |
18.0 |
18.0 |
12.0 |
28.0 |
22.0 |
|
|
|
|
|
|
|
|
7 |
14.0 |
21.0 |
16.0 |
9.0 |
26.0 |
19.0 |
|
|
|
|
|
|
|
|
8 |
16.0 |
24.0 |
|
|
24.0 |
16.0 |
34.0 |
26.0 |
|
|
|
|
|
|
9 |
18.0 |
27.0 |
|
|
22.0 |
13.0 |
32.0 |
23.0 |
42.0 |
33.0 |
|
|
|
|
10 |
20.0 |
30.0 |
|
|
20.0 |
10.0 |
30.0 |
20.0 |
40.0 |
30.0 |
50.0 |
40.0 |
|
|
11 |
22.0 |
33.0 |
|
|
18.0 |
7.0 |
28.0 |
17.0 |
38.0 |
27.0 |
48.0 |
37.0 |
|
|
12 |
24.0 |
36.0 |
|
|
|
|
26.0 |
14.0 |
36.0 |
24.0 |
46.0 |
34.0 |
|
|
XM-SR83 |
5 |
15.5 |
23.0 |
30.5 |
23.0 |
46.5 |
39.0 |
|
|
|
|
|
|
|
6 |
18.6 |
27.6 |
27.4 |
18.4 |
43.4 |
34.4 |
|
|
|
|
|
|
|
|
7 |
21.7 |
32.2 |
|
|
40.3 |
29.8 |
56.3 |
45.8 |
|
|
|
|
|
|
8 |
24.8 |
36.8 |
|
|
37.2 |
25.2 |
53.2 |
41.2 |
|
|
|
|
|
|
9 |
27.9 |
41.4 |
|
|
34.1 |
20.6 |
50.1 |
36.6 |
65.1 |
51.6 |
|
|
|
|
10 |
31.0 |
46.0 |
|
|
31.0 |
16.0 |
47.0 |
32.0 |
62.0 |
47.0 |
77.0 |
62.0 |
|
|
11 |
34.1 |
50.6 |
|
|
|
|
43.9 |
27.4 |
58.9 |
42.4 |
73.9 |
57.4 |
|
|
12 |
37.2 |
55.2 |
|
|
|
|
40.8 |
22.8 |
55.8 |
37.8 |
70.8 |
52.8 |
|
|
XM-SR92 |
5 |
23.0 |
33.0 |
44.6 |
34.7 |
67.1 |
57.2 |
|
|
|
|
|
|
|
6 |
27.6 |
39.5 |
40.0 |
28.1 |
62.5 |
50.6 |
|
|
|
|
|
|
|
|
7 |
32.2 |
46.1 |
|
|
57.9 |
44.0 |
80.4 |
66.5 |
|
|
|
|
|
|
8 |
36.8 |
52.7 |
|
|
53.3 |
37.4 |
75.8 |
59.9 |
|
|
|
|
|
|
9 |
41.4 |
59.3 |
|
|
48.7 |
30.8 |
71.2 |
53.3 |
93.8 |
75.9 |
|
|
|
|
10 |
46.0 |
65.9 |
|
|
44.1 |
24.2 |
66.6 |
46.7 |
89.2 |
69.3 |
111.7 |
91.8 |
|
|
11 |
50.6 |
72.5 |
|
|
|
|
62.0 |
40.1 |
84.6 |
62.7 |
107.1 |
85.2 |
|
|
12 |
55.2 |
79.1 |
|
|
|
|
57.4 |
33.5 |
80.0 |
56.1 |
102.5 |
78.6 |
|
|
XM-SR105 |
5 |
31.8 |
49.3 |
66.0 |
48.4 |
98.6 |
81.0 |
|
|
|
|
|
|
|
6 |
38.1 |
59.2 |
59.6 |
38.5 |
92.2 |
71.1 |
|
|
|
|
|
|
|
|
7 |
44.5 |
69.0 |
|
|
85.9 |
61.3 |
118.5 |
93.9 |
|
|
|
|
|
|
8 |
50.8 |
78.9 |
|
|
79.5 |
51.4 |
112.1 |
84.0 |
|
|
|
|
|
|
9 |
57.2 |
88.7 |
|
|
73.2 |
41.6 |
105.8 |
74.2 |
138.4 |
106.8 |
|
|
|
|
10 |
63.5 |
98.6 |
|
|
66.8 |
31.7 |
99.4 |
64.3 |
132.0 |
96.9 |
164.5 |
129.4 |
|
|
11 |
69.9 |
108.5 |
|
|
|
|
93.1 |
54.4 |
125.7 |
87.0 |
158.2 |
119.5 |
|
|
12 |
76.2 |
118.3 |
|
|
|
|
86.7 |
44.6 |
119.3 |
77.2 |
151.8 |
109.7 |
|
|
XM-SR125 |
5 |
50 |
78 |
100 |
72 |
150 |
122 |
|
|
|
|
|
|
|
6 |
60 |
94 |
90 |
56 |
140 |
106 |
|
|
|
|
|
|
|
|
7 |
70 |
109 |
|
|
130 |
91 |
181 |
142 |
|
|
|
|
|
|
8 |
80 |
125 |
|
|
120 |
75 |
171 |
126 |
|
|
|
|
|
|
9 |
90 |
140 |
|
|
110 |
60 |
161 |
110 |
211 |
161 |
|
|
|
|
10 |
100 |
156 |
|
|
100 |
44 |
151 |
95 |
201 |
145 |
251 |
195 |
|
|
11 |
110 |
172 |
|
|
|
|
141 |
79 |
191 |
129 |
241 |
179 |
|
|
12 |
120 |
187 |
|
|
|
|
131 |
64 |
181 |
114 |
231 |
164 |
|
|
XM-SR140 |
5 |
86 |
129 |
174 |
131 |
261 |
218 |
|
|
|
|
|
|
|
6 |
103 |
155 |
157 |
105 |
244 |
192 |
|
|
|
|
|
|
|
|
7 |
120 |
181 |
|
|
227 |
166 |
314 |
253 |
|
|
|
|
|
|
8 |
138 |
206 |
|
|
209 |
141 |
296 |
228 |
|
|
|
|
|
|
9 |
155 |
232 |
|
|
192 |
115 |
279 |
202 |
366 |
289 |
|
|
|
|
10 |
172 |
258 |
|
|
175 |
89 |
262 |
176 |
349 |
263 |
436 |
350 |
|
|
11 |
189 |
284 |
|
|
|
|
245 |
150 |
332 |
237 |
585 |
324 |
|
|
12 |
206 |
310 |
|
|
|
|
228 |
124 |
315 |
211 |
402 |
298 |
|
|
XM-SR160 |
5 |
140 |
193 |
258 |
205 |
390 |
337 |
|
|
|
|
|
|
|
6 |
167 |
231 |
230 |
166 |
362 |
298 |
|
|
|
|
|
|
|
|
7 |
195 |
270 |
|
|
334 |
260 |
467 |
393 |
|
|
|
|
|
|
8 |
223 |
308 |
|
|
306 |
221 |
439 |
354 |
|
|
|
|
|
|
9 |
251 |
347 |
|
|
278 |
183 |
411 |
316 |
543 |
448 |
|
|
|
|
10 |
279 |
385 |
|
|
250 |
144 |
383 |
277 |
515 |
409 |
647 |
541 |
|
|
11 |
307 |
424 |
|
|
|
|
355 |
239 |
487 |
371 |
619 |
503 |
|
|
12 |
335 |
462 |
|
|
|
|
327 |
200 |
459 |
332 |
591 |
464 |
|
|
XM-SR190 |
5 |
190 |
320 |
451 |
320 |
664 |
533 |
|
|
|
|
|
|
|
6 |
227 |
384 |
413 |
256 |
626 |
469 |
|
|
|
|
|
|
|
|
7 |
265 |
448 |
|
|
588 |
405 |
802 |
619 |
|
|
|
|
|
|
8 |
303 |
512 |
|
|
550 |
341 |
764 |
555 |
|
|
|
|
|
|
9 |
341 |
576 |
|
|
512 |
277 |
726 |
491 |
939 |
704 |
|
|
|
|
10 |
379 |
640 |
|
|
474 |
213 |
688 |
427 |
901 |
640 |
1114 |
853 |
|
|
11 |
417 |
704 |
|
|
|
|
650 |
363 |
863 |
576 |
1076 |
789 |
|
|
12 |
455 |
768 |
|
|
|
|
612 |
299 |
825 |
512 |
1038 |
725 |
|
|
XM-SR210 |
5 |
261 |
440 |
619 |
439 |
912 |
732 |
|
|
|
|
|
|
|
6 |
313 |
528 |
566 |
351 |
859 |
644 |
|
|
|
|
|
|
|
|
7 |
365 |
616 |
|
|
807 |
556 |
1101 |
850 |
|
|
|
|
|
|
8 |
417 |
704 |
|
|
755 |
468 |
1049 |
762 |
|
|
|
|
|
|
9 |
469 |
792 |
|
|
703 |
380 |
997 |
674 |
1290 |
967 |
|
|
|
|
10 |
521 |
880 |
|
|
651 |
292 |
945 |
586 |
1238 |
879 |
1531 |
1172 |
|
|
11 |
573 |
968 |
|
|
|
|
893 |
498 |
1186 |
791 |
1479 |
1084 |
|
|
12 |
625 |
1056 |
|
|
|
|
841 |
410 |
1134 |
703 |
1427 |
996 |
|
|
XM-SR240 |
5 |
389 |
583 |
766 |
572 |
1151 |
957 |
|
|
|
|
|
|
|
6 |
467 |
700 |
688 |
455 |
1073 |
840 |
|
|
|
|
|
|
|
|
7 |
545 |
816 |
|
|
995 |
724 |
1379 |
1108 |
|
|
|
|
|
|
8 |
622 |
933 |
|
|
918 |
607 |
1302 |
991 |
|
|
|
|
|
|
9 |
700 |
1049 |
|
|
840 |
491 |
1224 |
875 |
1610 |
1261 |
|
|
|
|
10 |
778 |
1166 |
|
|
762 |
374 |
1146 |
758 |
1532 |
1144 |
1916 |
1528 |
|
|
11 |
856 |
1283 |
|
|
|
|
1068 |
641 |
1454 |
1027 |
1838 |
1411 |
|
|
12 |
934 |
1399 |
|
|
|
|
990 |
525 |
1376 |
911 |
1760 |
1295 |
|
|
XM-SR270 |
5 |
505 |
960 |
1250 |
795 |
1835 |
1380 |
|
|
|
|
|
|
|
6 |
606 |
1152 |
1149 |
603 |
1734 |
1188 |
|
|
|
|
|
|
|
|
7 |
707 |
1344 |
|
|
1633 |
996 |
2217 |
1580 |
|
|
|
|
|
|
8 |
808 |
1536 |
|
|
1532 |
804 |
2116 |
1388 |
|
|
|
|
|
|
9 |
909 |
1728 |
|
|
1431 |
612 |
2015 |
1196 |
2601 |
1782 |
|
|
|
|
10 |
1010 |
1920 |
|
|
1330 |
420 |
1914 |
1004 |
2500 |
1590 |
3085 |
2175 |
|
|
11 |
1111 |
2112 |
|
|
|
|
1813 |
812 |
2399 |
1398 |
2984 |
1983 |
|
|
12 |
1212 |
2304 |
|
|
|
|
1712 |
620 |
2298 |
1206 |
2883 |
1791 |
|
|
XM-SR300 |
5 |
725 |
1145 |
1522 |
1102 |
2271 |
1851 |
|
|
|
|
|
|
|
6 |
870 |
1374 |
1377 |
873 |
2126 |
1622 |
|
|
|
|
|
|
|
|
7 |
1015 |
1603 |
|
|
1981 |
1393 |
2730 |
2142 |
|
|
|
|
|
|
8 |
1160 |
1832 |
|
|
1836 |
1164 |
2585 |
1913 |
|
|
|
|
|
|
9 |
1305 |
2061 |
|
|
1691 |
935 |
2440 |
1684 |
3189 |
2433 |
|
|
|
|
10 |
1450 |
2290 |
|
|
1546 |
706 |
2295 |
1455 |
3044 |
2204 |
3793 |
2953 |
|
|
11 |
1595 |
2519 |
|
|
|
|
2150 |
1226 |
2899 |
1975 |
3648 |
2724 |
|
|
12 |
1740 |
2748 |
|
|
|
|
2005 |
997 |
2754 |
1746 |
3503 |
2495 |
|
|
XM-SR350 |
5 |
1173 |
1703 |
2003 |
1474 |
3145 |
2616 |
|
|
|
|
|
|
|
6 |
1408 |
2043 |
1768 |
1133 |
2910 |
2275 |
|
|
|
|
|
|
|
|
7 |
1642 |
2384 |
|
|
2676 |
1935 |
3818 |
3077 |
|
|
|
|
|
|
8 |
1877 |
2724 |
|
|
2441 |
1594 |
3583 |
2736 |
|
|
|
|
|
|
9 |
2111 |
3065 |
|
|
2207 |
1254 |
3349 |
2396 |
4491 |
3538 |
|
|
|
|
10 |
2346 |
3405 |
|
|
1972 |
913 |
3114 |
2055 |
4256 |
3197 |
5398 |
4339 |
|
|
11 |
2581 |
3746 |
|
|
|
|
2879 |
1715 |
4021 |
2857 |
5413 |
3999 |
|
|
12 |
2815 |
4086 |
|
|
|
|
2645 |
1374 |
3787 |
2516 |
4928 |
3658 |
|
|
XM-SR400 |
7 |
1837 |
2881 |
2812 |
1768 |
|
|
|
|
|
|
|
|
|
8 |
2099 |
3292 |
2550 |
1225 |
|
|
|
|
|
|
|
|
|
|
9 |
2362 |
3704 |
2259 |
768 |
3887 |
2396 |
|
|
|
|
|
|
|
|
10 |
2624 |
4115 |
1967 |
311 |
3595 |
1939 |
5223 |
3567 |
|
|
|
|
|
|
11 |
2886 |
4527 |
|
|
3303 |
1482 |
4931 |
3110 |
6559 |
4738 |
|
|
|
|
12 |
3149 |
4938 |
|
|
3012 |
1025 |
4641 |
2653 |
6268 |
4281 |
7895 |
5908 |
|
|
13 |
3411 |
5350 |
|
|
|
|
4348 |
2195 |
5976 |
3823 |
7603 |
5450 |
|
|
14 |
3674 |
5761 |
|
|
|
|
4057 |
1738 |
5685 |
3366 |
7312 |
4993 |
|
|
15 |
3936 |
6173 |
|
|
|
|
3765 |
1281 |
5393 |
2909 |
7020 |
4536 |
|
|
16 |
4198 |
6584 |
|
|
|
|
|
|
5101 |
2452 |
6728 |
4079 |
|
Tuam txhab Taw Qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb tsuas yog tsim XM Angular Stoke Pneumatic Actuators, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic / Hluav Taws Xob Tswj Valve, thiab lwm yam.
Peb lub tuam txhab muaj cov cuab yeej ua haujlwm siab heev thiab cov cuab yeej zoo tshaj plaws. Peb cov cuab yeej ua haujlwm suav nrog lathes, milling tshuab, tho txawv tshuab, planer, drilling tshuab, CNC lathes, CNC machining chaw thiab lwm yam khoom siv. Muaj tag nrho 30 teeb, ntawm cov uas muaj 5 teev imported ntsug tshuab chaw thiab ob peb teev advanced CNC lathes.
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Kev pab cuam tom qab muag zoo heev
5) Kev pab cuam hauv online
6) Lub sijhawm xa khoom sai
FAQ
Q 1: Cov nqe lus them nqi muaj peev xwm?
A1: T / T, L / C, Western Union.
Q 2: Cov nqe lus ua lag luam?
A 2: Raws li Incoterms 2010, feem ntau nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q 3: Kev lees paub ntawm kev hais lus?
A3: Hauv 30 hnub.
Q 4: Hom kev xa khoom xa tuaj?
A 4: Los ntawm hiav txwv, los ntawm huab cua, los ntawm kev nthuav qhia, lossis los ntawm kev tsheb ciav hlau.
Q 5: Warranty?
A 5: Ib xyoos lav zoo pub dawb, thiab kev pabcuam them tag nrho.
Q 6: Kev teeb tsa thiab kev cob qhia?
A 6: ib txwm yees duab qhia rau kev teeb tsa. Yog tias tsim nyog, them nyiaj txawv teb chaws engineering muab kev pabcuam.
Cim npe nrov: Tuam Tshoj ib leeg ua yeeb yam khib thiab pinion actuator, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, yuav, nqe, kev muag, Tshuag, dawb qauv
