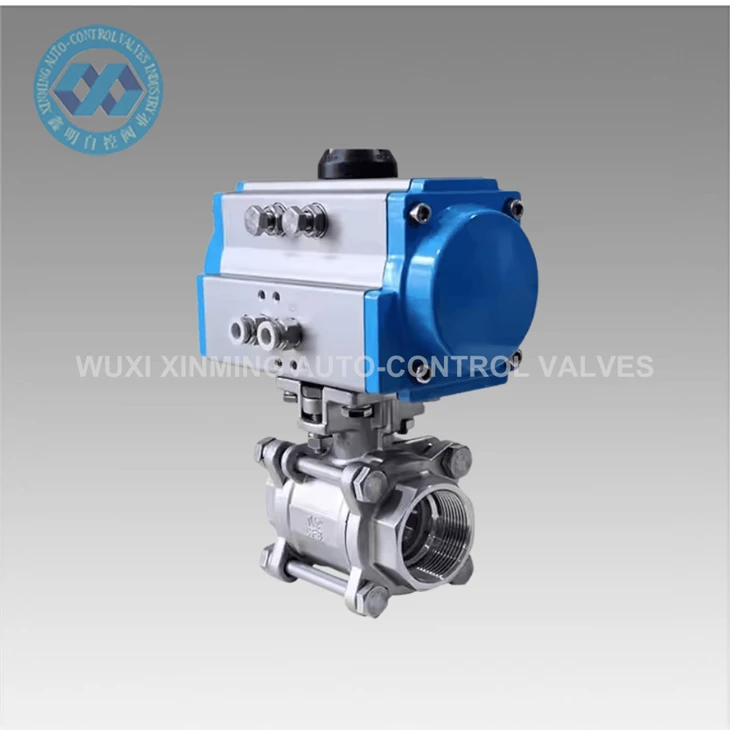

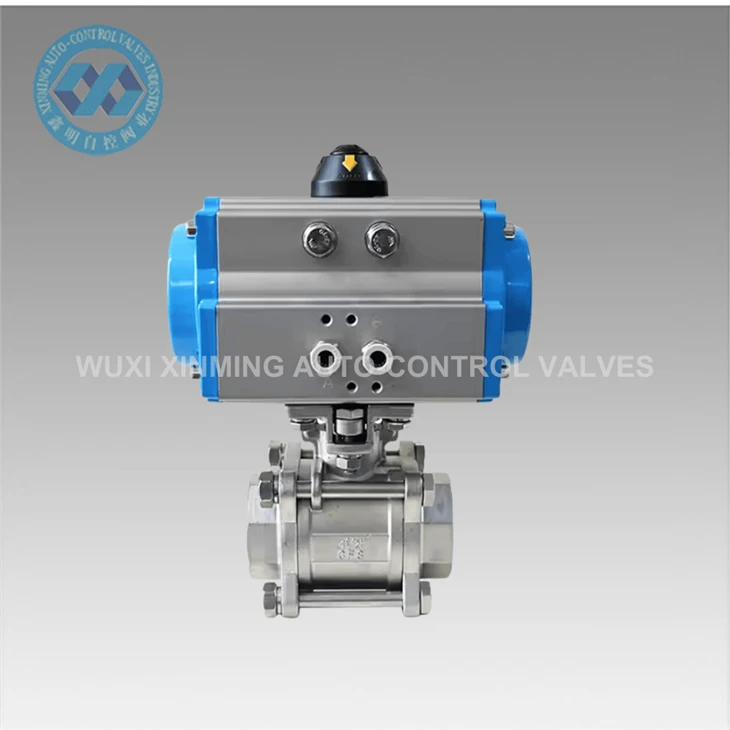

Pneumatic threaded pob valve

Lub Pneumatic Threaded Ball Valve yog ib qho kev tswj xyuas cov dej ntws tawm uas tsim los rau kev kaw ceev -tawm thiab kev tswj xyuas meej hauv cov kav dej. Featuring ib tug threaded kev twb kev txuas (NPT, BSPP, BSPT) thiab pneumatic actuation, nws ua kom cov lus teb sai, durability ...

Xa kev nug

Hauj lwm lawm

CovPneumatic Threaded Pob Valveyog ib qho automated flow control solution tsim los ceev ceev -tawm thiab cov kev cai meej hauv cov kav dej. Featuring ib tug threaded kev twb kev txuas (NPT, BSPP, BSPT) thiab pneumatic actuation, nws ua kom cov lus teb sai, durability, thiab leak{2}} pov thawj kev ua tau zoo nyob rau hauv siab - siab thiab siab - kub daim ntawv thov.

product-789-393

Performance Specification:

Khoom npe	Pneumatic threaded pob valve
Siv tau qhov kub thiab txias	-20 ~ 280 degree
Ua hauj lwm siab	PN63/1000WOG
Siv tau nruab nrab	Dej, roj, roj
Tsim thiab tsim khoom	GB / T-12224 / ANSI B16.34
Xov txheem	BSPT / BSP / NPT / DIN / JIS / RC / G
Kev tshuaj xyuas thiab kev sim	GB / T-13927 / API 598
Kev ntsuas huab cua	0.8MPA
Kev tsim tshwj xeeb	Kev tawg- pov thawj valve qia, tag nrho bore

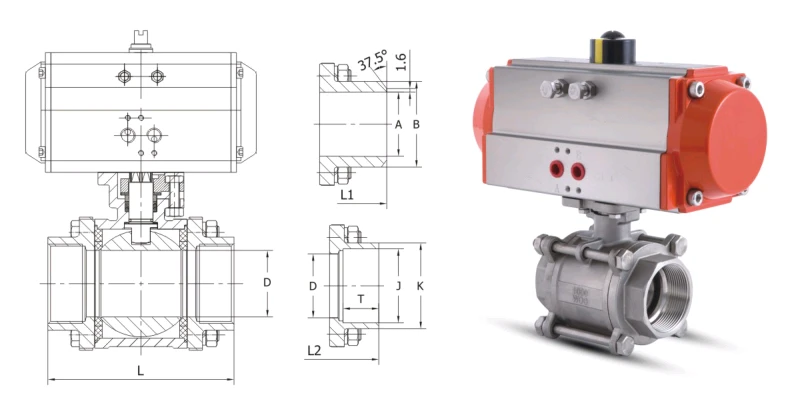

Technical Parameters:

SIZE	D	L	L1	L2	A	B	J	K	T	万	标准
1/2″	15	62	75	65	16	22.5	16	22.4	10	9	F04/F05
3/4″	20	74	90	76.5	21	27	21	27.8	13	9	F04/F05
1″	25	86	100	86	26	34.5	26.5	34.7	13	11	F04/F05
1-1/4″	32	96	110	98	32	43	35	43.3	13	11	F04/F05
1-1/2″	38	108	125	114	40	49	41	49.3	13	14	F05/F07
2″	50	120	150	132	51	62	52	61.4	16	14	F05/F07
2-1/2″	65	160	190	164	65	76.5	66	75	16	17	F07/F10
3″	78	185	220	182	80	92	80.5	90	16	17	F07/F10
4″	100	225	270	235	100	115.5	104.6	115.6	19	17	F07/F10

Vim Li Cas Xaiv Peb Lub Valve?
✅ High Durability: Engineered rau lub neej ua haujlwm ntev hauv cov xwm txheej nyuaj
✅ Kev sib txuas ntau yam: Ntau cov qauv xov rau kev sib raug zoo thoob ntiaj teb
✅ Kev tsom mus rau kev nyab xeeb: tawg- qauv pov thawj raws li cov qauv kev lag luam nruj

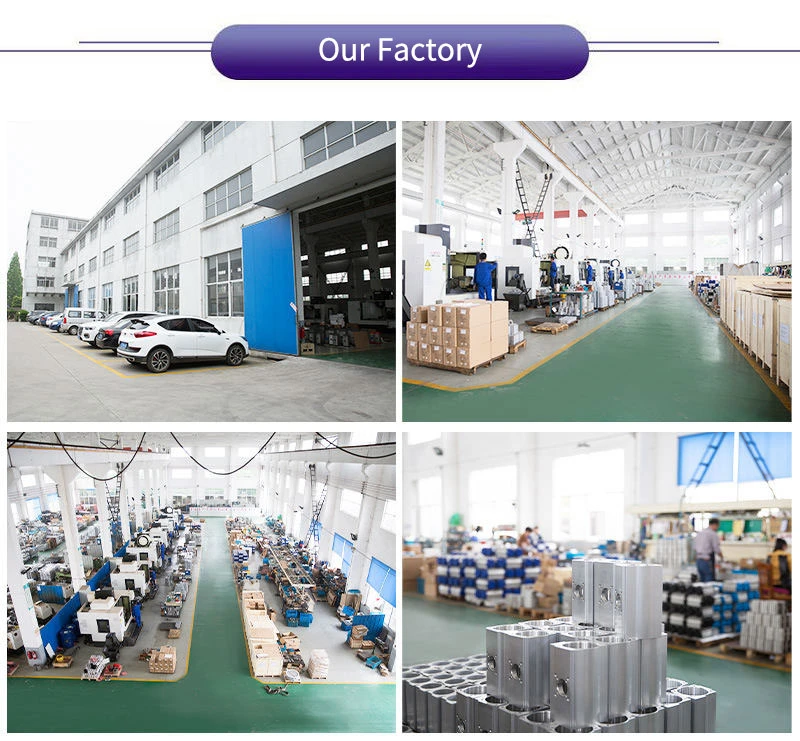

Our Factory
