Ntawm Wuxi Xinming Auto-Control Valves Industry Co., Ltd., peb tau pom ntau txoj haujlwm automation qeeb vim tias tus neeg yuav khoom xaiv tus actuator nkaus xwb los ntawm tus nqi qis tshaj. Lub caij nplooj ntoos hlav rov qab pneumatic teb actuator tsis yog ib daim hlau xwb; nws yog koj txoj kab kawg ntawm kev tiv thaiv thaum huab cua tsis ua haujlwm.
Tom qab txhawb nqa ntau pua lub valve automation tej yaam num thoob ntiaj teb, peb pab neeg engineering tau distilled 10 qhov tseem ceeb tshaj plaws, feem ntau -tsis pom zoo yam uas koj yuav tsum tau txheeb xyuas ua ntej muab qhov kev txiav txim.
1. Fail -Safe Direction
Qhov no yog lub hom phiaj tseem ceeb ntawm lub caij nplooj ntoos hlav rov qab actuator. Xyoo tas los, cov nroj tsuag tshuaj nyob rau sab hnub tuaj Asia yuav luag tau teev "ua tsis tiav-qhib" actuator rau cov kab txias txias. Thaum peb tshuaj xyuas kev kos duab, peb ntes tau qhov yuam kev thiab hloov nws mus rau "ua tsis tiav-kaw" txhawm rau tiv thaiv kom tsis txhob muaj cua sov txaus thaum huab cua poob. Ib txwm txhais koj lub xeev nyab xeeb ua ntej.
2. Tiag -Lub Ntiaj Teb Torque & Kev Nyab Xeeb Margins
Tsis txhob sib piv cov actuator torque rau lub valve torque ntawm qhov sib piv 1: 1 nruj. Peb ib zaug pom ib qhov project uas qhov ua tau zoo kawg nkaus tau nres rau lub caij ntuj no vim tias qhov nruab nrab viscosity nce. Ntawm Xinming, peb ib txwm suav thiab siv 20% mus rau 30% kev nyab xeeb margin dhau lub valve qhov siab tshaj plaws breakaway torque.
3. Qhov tseeb cog cua siab
Nameplates yuav hais tias "6 bar," tab sis qhov tseeb huab cua siab kawg ntawm lub Hoobkas kav dej feem ntau poob rau 4.5 bar. Txij li thaum lub caij nplooj ntoos hlav rov qab quab yuam yog khi ncaj qha rau huab cua siab, sizing raws li theoretical siab yuav ua rau tsis muaj zog los yog ua tsis tiav rov qab stroke. Peb ib txwm nug cov neeg siv khoom rau lawv qhov tsawg kawg nkaus lav cog cua siab.
4. ISO 5211 Mounting Compatibility
Kev sib txuas ntawm kev sib txuas tsis sib haum ua rau raug nqi ntawm - hloov kho qhov chaw. Peb xyuas kom tag nrho peb cov actuators nruj me ntsis ua raws li ISO 5211 tus qauv, tab sis peb tseem muab ob npaug rau - xyuas lub valve lub flange qhov ntev thiab tsav ncej loj (xws li lub hnub qub lossis square) ua ntej tsim los lav qhov poob - haum.
5. Ambient Kub & Cov ntaub ntawv foob
Standard NBR (Nitrile) seals ua haujlwm zoo hauv cov huab cua me me. Txawm li cas los xij, rau ib qhov project nyob rau sab qaum teb Tuam Tshoj qhov kub poob mus rau -30 degree, txheem seals ua nkig thiab xau. Rau qhov chaw ib puag ncig zoo li no, peb nquag hloov kho mus rau qhov kub thiab txias polyurethane lossis FKM (Viton) cov ntsaws ruaj ruaj kom ntseeg tau tias lub neej ntev.
6. Lub Sijhawm Stroke Requirements
Kev kaw thaum muaj xwm txheej ceev feem ntau xav tau 2-rau-3-thib ob lub sijhawm stroke. Ua tiav qhov no txhais tau tias ntxiv cov khoom siv caij nplooj ntoos hlav ntxiv, uas ua rau kom cov cua ntim yuav tsum tau qhib lub valve. Peb pab cov neeg siv khoom sib npaug nrawm nrog lawv lub peev xwm compressor.
7. Daim ntawv pov thawj thaj chaw muaj kev puas tsuaj
Yog tias koj tus actuator mus rau cov roj & roj platform lossis cov chaw muaj plua plav, cov khoom siv yuav tsis dhau kev tshuaj xyuas. Peb xyuas kom meej tias peb tawg tau - pov thawj txwv hloov pauv thiab solenoid li qub nqa cov ntawv pov thawj tsim nyog ATEX lossis IECEx rau koj thaj chaw tshwj xeeb.

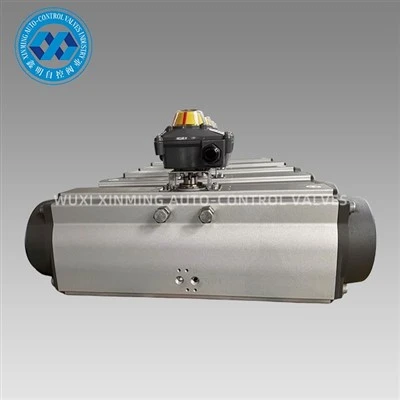

8. Cov lus pom zoo ntawm txoj haujlwm
Chav tswj yuav tsum paub meej tias lub valve nyob qhov twg. Peb pom zoo kom sib koom ua ke cov neeg kho tshuab muaj zog lossis inductive txwv hloov lub thawv. Lub teeb liab tawm tswv yim txhim khu kev qha tiv thaiv qhov muag tsis pom kev ua haujlwm kim.
9. Kev saib xyuas- Kev Tsim Kho Tus phooj ywg
Kev poob qis yog kim. Peb cov actuators yog tsim los nrog lub tshuab luam ntawv modular. Yog tias lub caij nplooj ntoos hlav lossis lub foob xav tau hloov pauv tom qab xyoo kev pabcuam, cov neeg saib xyuas tuaj yeem ua rau ntawm -qhov chaw yam tsis tau tshem tag nrho cov actuator los ntawm cov kav dej.
10. Kev them nyiaj yug Engineering, Tsis yog Kev Muag Khoom xwb
Kev yuav tus actuator yog yuav kev thaj yeeb ntawm lub siab. Ntawm Wuxi Xinming, peb tsis yog xa tus nqi nqe lus xwb. Peb muab ib daim ntawv qhia ntxaws torque, 3D mounting drawings, thiab ncaj qha mus rau peb daim ntawv thov engineers.
Npaj los Qhia Nrog Kev Ntseeg?
Tsis txhob tso koj qhov system kev nyab xeeb rau kev kwv yees. Yog tias koj tab tom nrhiav lub caij nplooj ntoos hlav rov qab pneumatic teb actuator, qhia koj tus qauv valve, nruab nrab, kub, thiab cua siab nrog peb. Peb yuav muab pub dawb, muaj kev pheej hmoo - pub dawb torque suav thiab cov kev daws teeb meem uas haum rau koj cov kev xav tau ua haujlwm.
Hu rau Wuxi Xinming Auto-Control Valves Industry Co., Ltd. hnub no los tham txog koj qhov project valve automation tom ntej.
