Khoom Taw Qhia

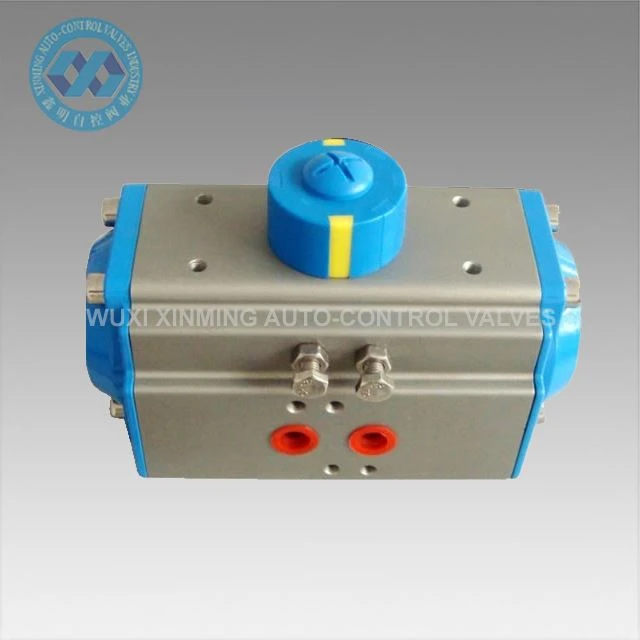

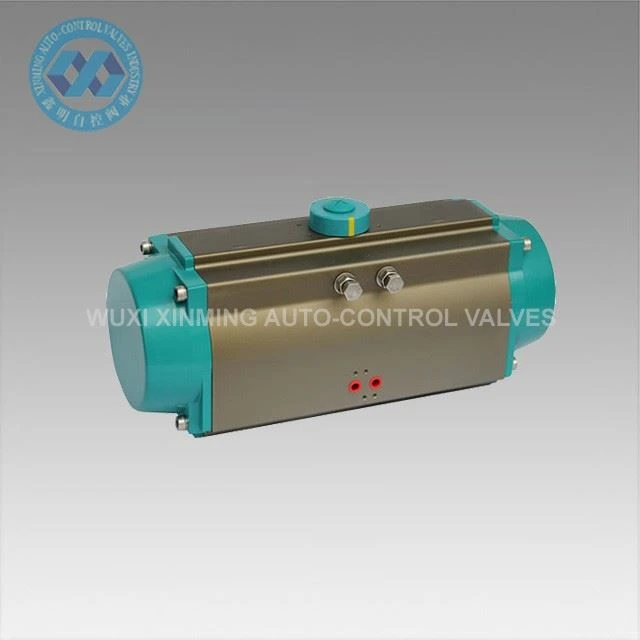

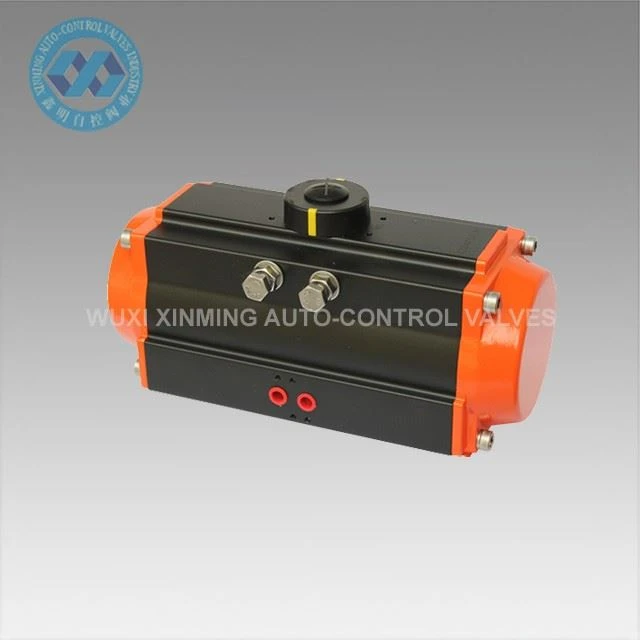

Single Acting Pneumatic Valve Actuator yog cov khoom muag kub hauv xyoo 2022, uas yog nrog cov qauv tsim, kev pab lub neej ntev, zoo siab, iav thiab iav khib. Cov khoom no yog siv rau 90 degree rotational li qub, xws li, Pob vales, npauj npaim li qub, ntsaws li qub thiab lwm yam Peb lub tuam txhab muab cov khoom zoo ua thawj txoj haujlwm, siv cov khoom siv ntau tshaj plaws thiab cov cuab yeej technology, zoo dua li cov khoom lag luam zoo sib xws ntawm ob qho tib si khoom zoo thiab kev ua haujlwm.
Technical Parameter
Nta |
1. Dual Position Rack |
2. Integrated Design |
3. High Output Torque |
4. Qhov tseeb Rotary Angle |
5. Lub neej ua haujlwm ntev |
6. Stainless hlau fasteners rau lub sij hawm ntev corrosion kuj |
7. Lub interface ntawm piston, pinion thiab lub cev yog ua los ntawm cov khoom siv tsis tshua muaj kev sib txhuam |
Specifications |
1). Siab Ntau Yam: Max. Ua haujlwm siab 10bar |
2). Cua siab: 2.5bar ~ 8bar |
3). Kev hloov kho: 90 degree ± 5 degree |
4). ambient kub: -20 ~ ntxiv rau 90 degree C |
5). Hom: Ib leeg-ua yeeb yam (caij nplooj ntoos hlav rov qab), ua ob zaug |
6). Cov khoom siv xaiv tau: Solenoid li qub, txwv hloov, hluav taws xob txoj hauj lwm |
7). Lubrication: Txhua qhov txav mus los yog coated nrog lubricants, txuas ntxiv lawv lub neej kev pab |
8). Lub Sijhawm Lub Neej: Ib lab lub sijhawm |
Cov qauv |
A. Interface ntawm actuator thiab valve: 4 lossis 8 ntsia liaj qhov rooj orifices raws li DIN / ISO |
5211, lub qag sib sau ua ke orifice raws li DIN 3337 |
B. Interface ntawm actuator thiab tswj valve: 7100 D/S-7350 D/S raws li |
NAMUR los yog VDI/VDE 3845, 7040 D/S-7090 D/S txuas ntawm lub phaj adapter |
C. Interface ntawm actuator thiab teeb liab lub thawv: Raws li VDI/VDE 3845 |
Taw qhia |
I. Actuator Lub Cev |
Tub cov khoom yog alumina alloy. Sab hauv thiab sab nrauv yog kho nrog anodize oxidation thiab polishing. Sab nrauv yog npib tsib xee plated kom cov ntawv pov thawj tiv thaiv corrosion ntawm actuator thiab kev sib txhuam yam tsawg kawg nkaus tiv thaiv pistons tuaj yeem lav. |
II. End Cover |
Cov khoom siv npog kawg yog tuag-casting aluminium Qhov kawg npog yog kho nrog epoxy polyester thiaj li ua tau zoo tshaj plaws lav qhov kev tiv thaiv corrosion. |
III. Tsav ncej |
Cov khoom siv tsav tsheb yog nruab nrab carbon steel nrog kev ua haujlwm zoo thiab nickle plating kom cov pistons muaj qhov zoo dua hauv kev tiv thaiv corrosion, tiv thaiv kev sib txhuam, thiab lwm yam. |
IV. Piston |
Cov khoom siv Piston yog tuag-casting aluminium alloy. Qhov siab tshaj plaws torque tuaj yeem tso tawm thaum lub actuator yog actuated nrog qee qhov siab. |
V. Piston Foob |
NBR-70 roj hmab sealing yog siv los xyuas kom meej qhov ua tau zoo thiab txhim khu kev qha ntawm actuator nyob rau hauv qhov kub thiab txias. FPM tuaj yeem siv tau raws li cov neeg siv khoom xav tau. |
VI. Kev Kho Kev Mus Los |
Ntxiv/Minus 5 degree mus txawv tebchaws tuaj yeem hloov kho los ntawm ob lub bolts. |
Daim ntawv thov
Pneumatic Rotary Actuators tuaj yeem tsim rau ntau yam flammable, corrosive, lub luag haujlwm, muaj zog magnetic teb, hluav taws xob, kev co corrosive ib puag ncig sab hauv tsev lossis sab nraum zoov, uas tau siv dav hauv kev lag luam hluav taws xob, petrochemical, metallurgy, roj av, roj, hauv nroog, kev tsim kho dej. , chemical kev lag luam, roj refining, mining, fais fab nroj tsuag, metallurgy, architecture, tshuaj, zaub mov, roj, kev tshawb fawb, thiab lwm yam.
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Kev pab cuam tom qab muag zoo heev
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
