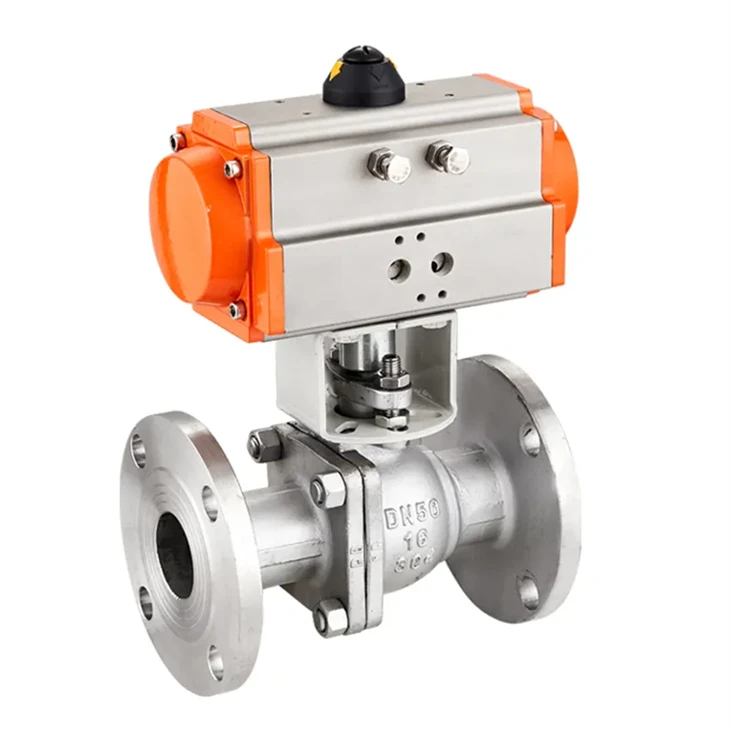

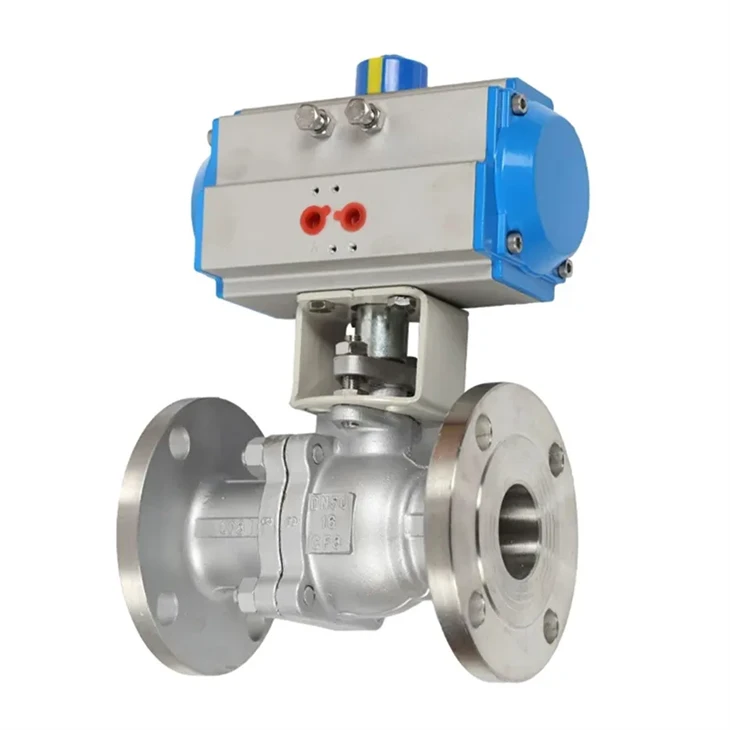

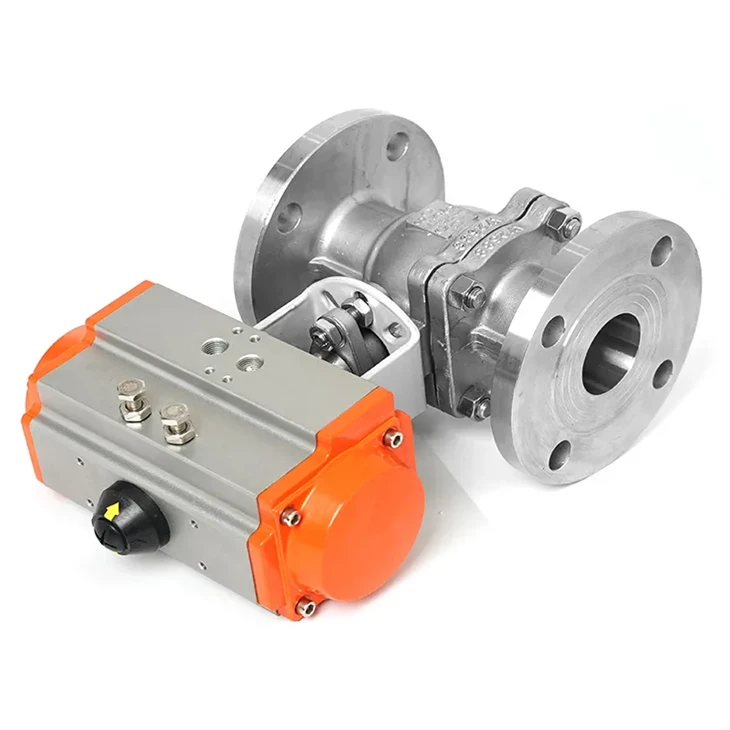

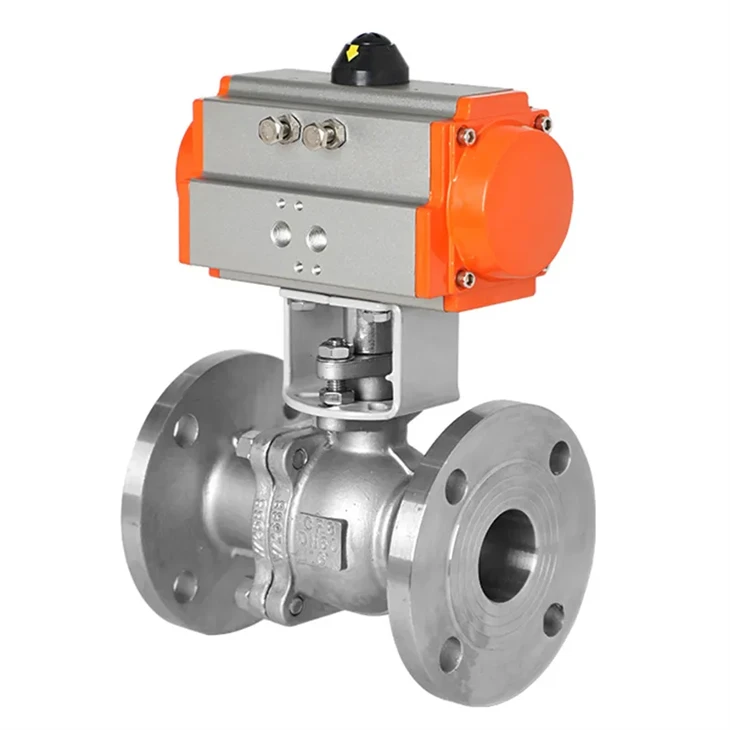

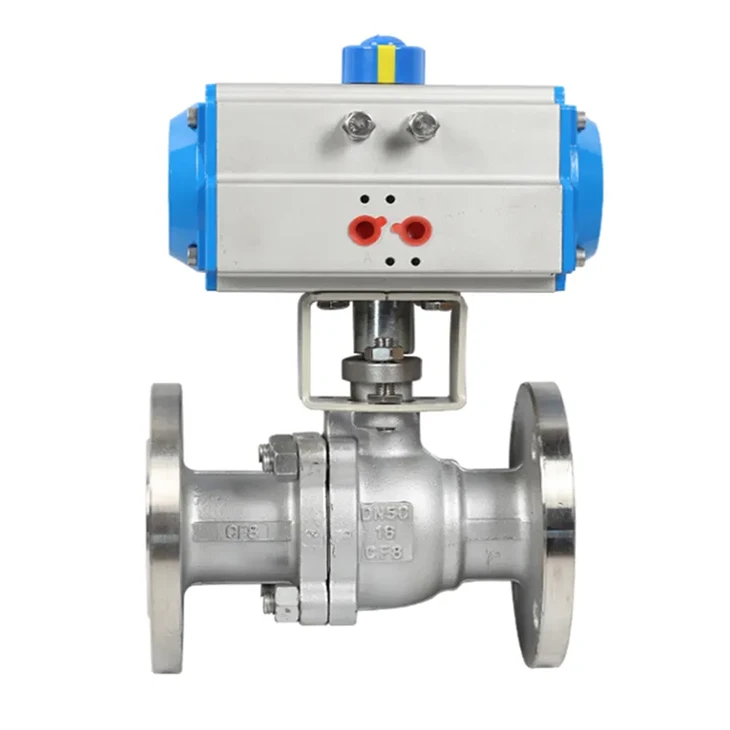

Stainless hlau Flanged Pob Valve

Stainless hlau pneumatic flanged pob valve yog lub tshuab hluav taws xob uas ua ke nrog cov khoom siv hlau tsis muaj steel, pneumatic actuator, thiab flange kev sib txuas. Nws lub luag haujlwm tseem ceeb yog kom txiav tawm sai sai lossis tswj qhov nruab nrab hauv cov raj xa dej los ntawm kev tswj pneumatic, thiab nws yog siv rau kev ceev ceev ntawm - tawm lossis khiav tswj kev tshaj tawm (xws li kua, gases, thiab slurries). Ua tsaug rau nws cov kev tiv thaiv corrosion, cov lus teb sai, thiab kev ntseeg siab, stainless hlau pneumatic flanged pob valve tau dhau los ua cov khoom tseem ceeb hauv kev lag luam automation.

Xa kev nug

Hauj lwm lawm

Qhov no Stainless Hlau Flanged Pob Valve yog qhov siab -kev ua haujlwm muaj lub valve tsim los rau kev ua haujlwm hnyav, sib txuas cov hlau tsis muaj steel, pneumatic actuator, flange kev twb kev txuas, thiab kub tsis kam.

Khoom nta
1. Lub cev lub cev ntawm Stainless Hlau Flanged Pob Valve yog ua los ntawm siab - zoo stainless hlau
2. Nws muaj zoo heev corrosion kuj thiab mechanical zog
3. Kev tsim tshwj xeeb tuaj yeem tiv taus qhov kub thiab txias
4. Kub sealing system ua kom zoo sealing nyob rau hauv thermal cycles
5. Stainless Hlau Flanged Pob Valve yog nruab nrog siab -kev ua haujlwm pneumatic actuator
6. Kev hloov ceev tuaj yeem ua tiav
7. Ib leeg - ua yeeb yam lossis ob - hom yeeb yam tuaj yeem xaiv tau
8. Txheem flange kev twb kev txuas
9. Ib qho yooj yim installation thiab txhim khu kev qha kev twb kev txuas
10. Tag nrho - tho los yog txo - qauv tsim yog xaiv tau
11. Tsawg ntws tsis kam, siab ntws coefficient
12. Bidirectional sealing kev ua tau zoo

Txoj cai ua haujlwm
1. Lub pneumatic actuator tau txais lub teeb liab los ntawm huab cua (feem ntau yog 0.4 - 0.7 MPa compressed cua), hloov cov cua siab mus rau hauv txhua yam torque los ntawm lub piston los yog diaphragm los ua ke, thiab tsav lub pob kom tig ib ncig ntawm lub valve qia.
2. Thaum lub qhov ntawm lub pob yog sib npaug rau cov kav dej axis, lub valve qhib tag nrho thiab qhov ntws tsis kam yog tsawg; Thaum lub qhov ntawm lub pob yog perpendicular mus rau lub raj xa dej axis, lub valve tau kaw tag nrho, lub sealing nto haum nruj, thiab qhov nruab nrab yog txiav tawm.
3. Tom qab xaiv tus positioner, kev faib ua feem yuav ua tiav (piv txwv li, siv lub teeb liab 4 - 20 mA). Tus nqi ntws tuaj yeem tswj tau los ntawm kev kho lub kaum sab xis ntawm lub pob (0℃txog 90 degree).
Thov hu rau peb yog tias koj xav tau cov ntaub ntawv ntxaws ntxaws ntxiv lossis cov lus qhia ua haujlwm hloov kho rau Stainless Steel Pneumatic Control High -kub Resistant Flanged Ball Valve. Peb tuaj yeem muab cov kev txwv tshwj xeeb (media, kub, siab, thiab lwm yam) rau kev hloov kho ntxiv.

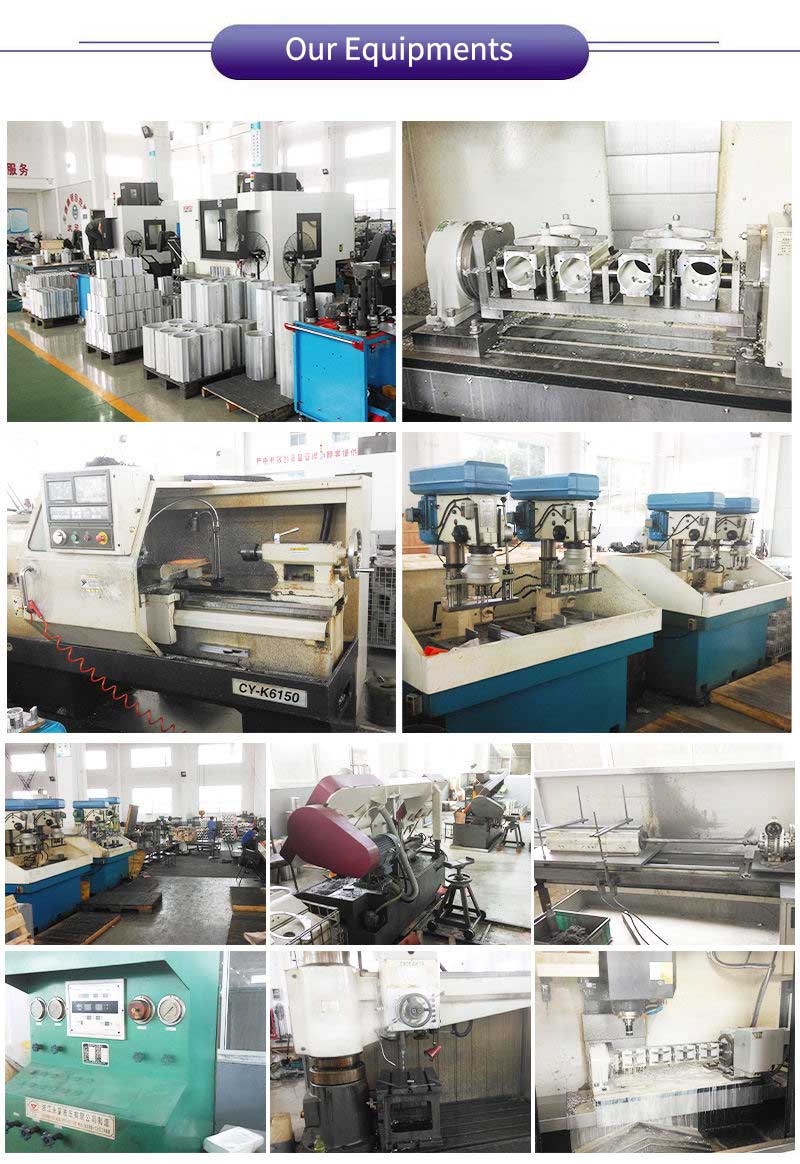

Production Equipment Diagram
