Khoom Taw Qhia
AT Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab tshuab nrog kev txav mus los tau. Precision die-casting aluminium alloy ob-khib pistons nrog kev kho oxidation nyuaj txhim kho lub kaum sab xis raug thiab lub luag haujlwm lub neej. XM series khib thiab pinion pneumatic rotary actuators yog qhov tshwj xeeb hauv cov qauv, qib siab hauv thev naus laus zis, qhov tseeb hauv kev tsim khoom, kev lag luam thiab kev cog lus hauv kev tsim, thiab tuaj yeem ncaj qha nruab nrog lwm yam khoom ntxiv txhawm rau txhim kho kev ua haujlwm thiab kev lag luam.
Paub meej sai

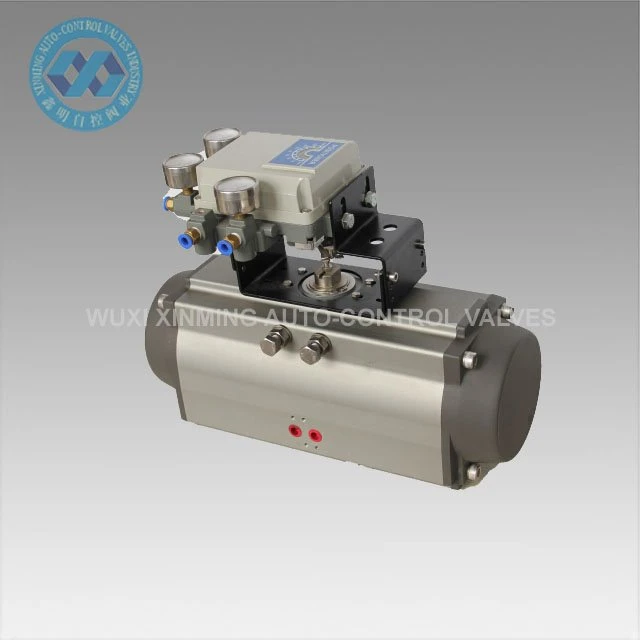

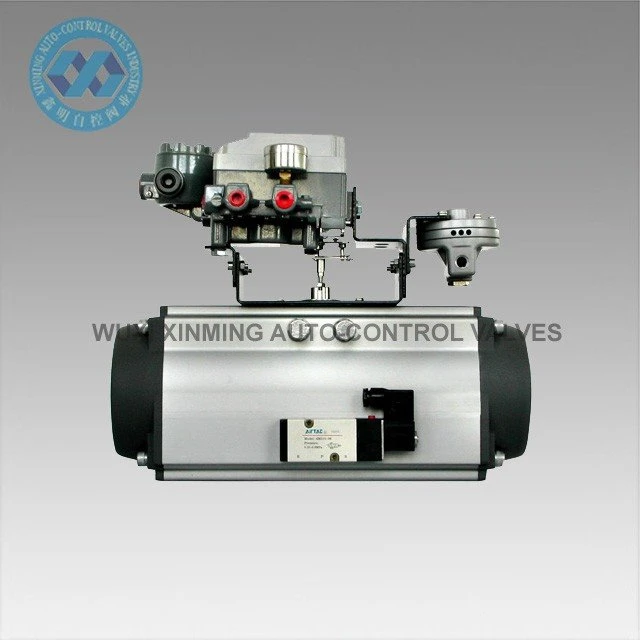

Khoom Lub Npe: AT Pneumatic Actuator
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Actuator loj: 32mm-400mm
Teb lub kaum ntse ntse: 0 ° ~ 90 ° (± 5 °)
Ua Haujlwm Kub Ntau Yam: -20 ℃ ~ +80 ℃ (tus qauv)
-40 ℃ ~ +80 ℃ (qis kub)
-15 ℃ ~ 150 ℃ (kub siab)
Cua txaus siab: 0.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI/VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Cov qauv: khib thiab pinion, ob chav pistons
Actuator lub cev kho qhov chaw: tawv anodized, lossis poob oxidation
Xaus Cap Xim: dub txho, dub, tsaus nti xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016
Parameter kev
XM AT PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Tawm tswv yim cua siab (chav: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

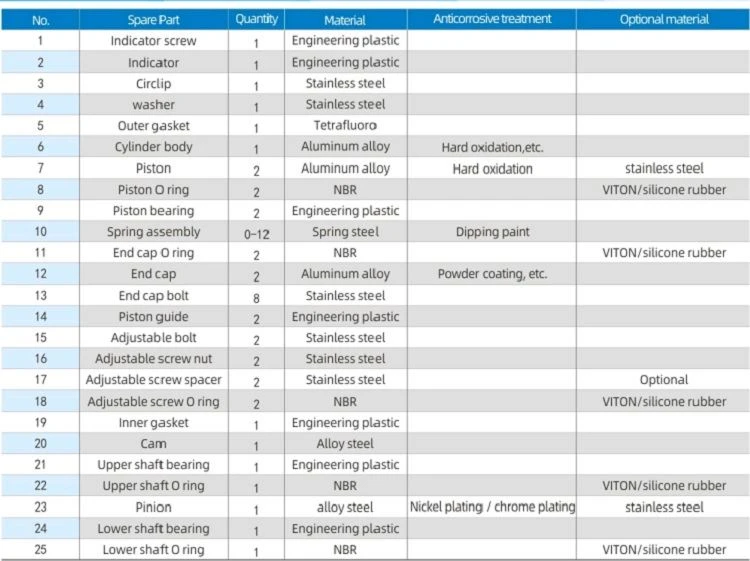

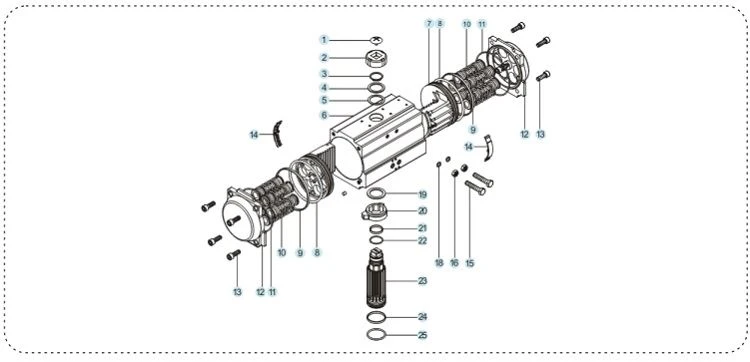

Khoom seem thiab khoom siv

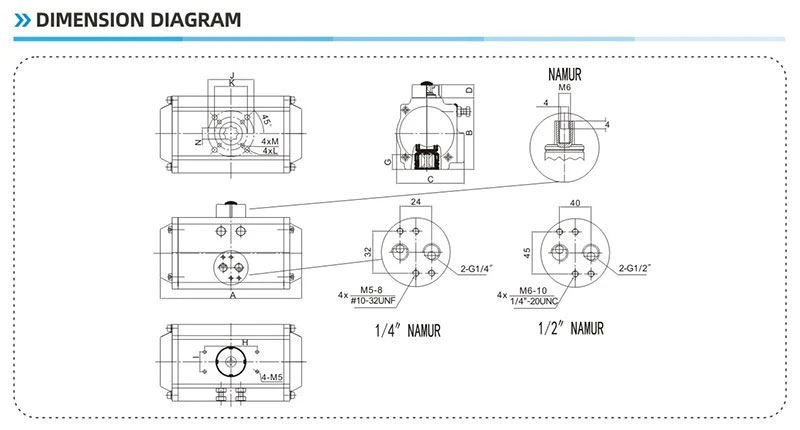

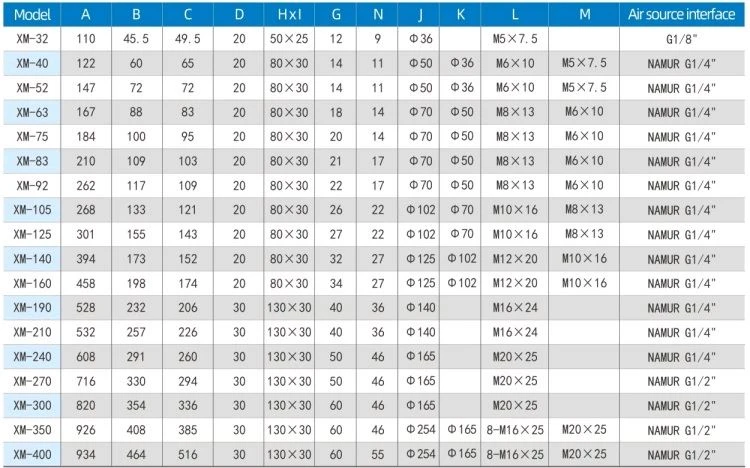

Daim duab Dimension
Qhov Zoo
1) Txhua qhov khoom seem tseem ceeb yuav raug kho nrog nyuaj-anodization txhawm rau txhim kho lub zog kom zoo rau qib kom ntseeg tau tias kev ua tau zoo thiab lub luag haujlwm lub neej.
2) Txhua txoj hauv kev yog ib zaug-tsim los ntawm CNC kom ntseeg tau tias cov txheej txheem raug thiab lub luag haujlwm lub neej.
Tuam txhab Taw qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb feem ntau tsim Pneumatic Actuator, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic/Hluav Taws Xob Tswj Valve, thiab lwm yam.

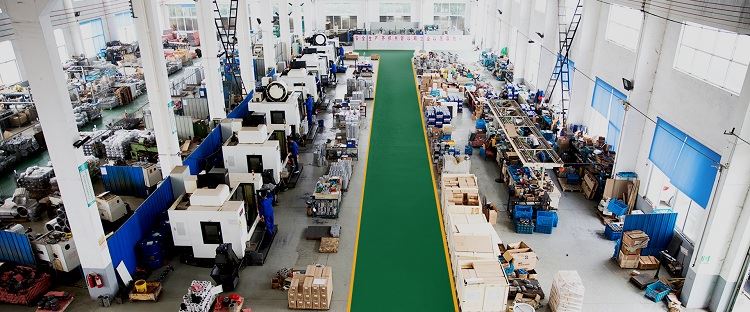

Peb lub tuam txhab muaj cov cuab yeej ua tiav thiab cov cuab yeej ntsuas zoo. Peb cov cuab yeej ua tiav suav nrog tshuab dhos, tshuab milling, tshuab tho txawv, npaj, tshuab drilling, CNC tshuab dhos, CNC chaw ua haujlwm thiab lwm yam khoom siv. Muaj tag nrho 30 teeb tsa, ntawm qhov uas muaj 5 teeb tsa txawv teb ntsug tshuab nruab nrab thiab ob peb teeb tsa siab CNC tshuab dhos.
