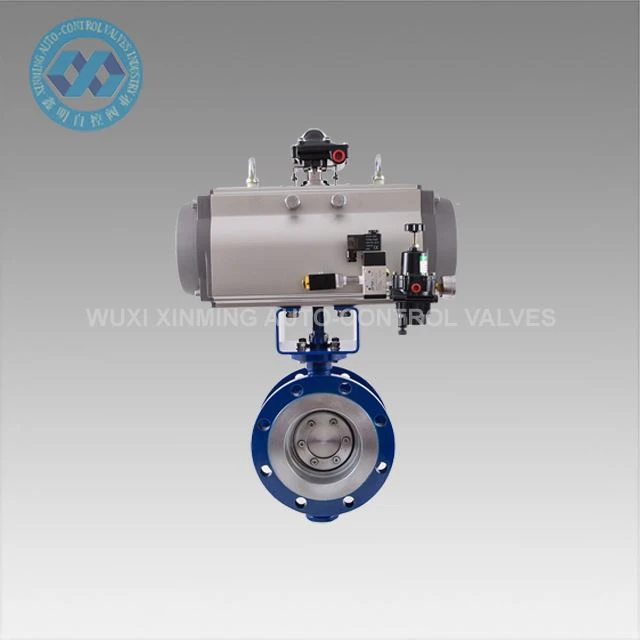

Peb Npauj Npaim Valve nrog hlau rau hlau yog ib qho kev sib cog lus, sib sib zog nqus, thiab tus nqi -kev tswj xyuas zoo uas muaj ntau yam kev ua tau zoo thoob plaws ntau yam kev siv. Tsim nrog lub wafer-style configuration rau yooj yim flange installation, nws yog tshwj xeeb tshaj yog haum rau qhov chaw - txwv piping systems nyob rau hauv dej, huab cua, roj, thiab tshuaj me me cov kev pab cuam. Lub valve ua tau zoo nyob rau hauv cov kev xav tau, suav nrog siab - kub, siab - siab, thiab cua sov- khaws cia cov kav dej, muab kev qhib / kaw ua haujlwm tau zoo thiab muaj peev xwm hloov pauv tau meej. Nws txoj kev tsim kho kom zoo sib xyaw ua ke nrog cov qauv kev cog lus, me me hneev taw, thiab kev tsim kho lub teeb nrog kev ua haujlwm yooj yim rau kev siv yooj yim hauv ntau qhov chaw ua haujlwm.

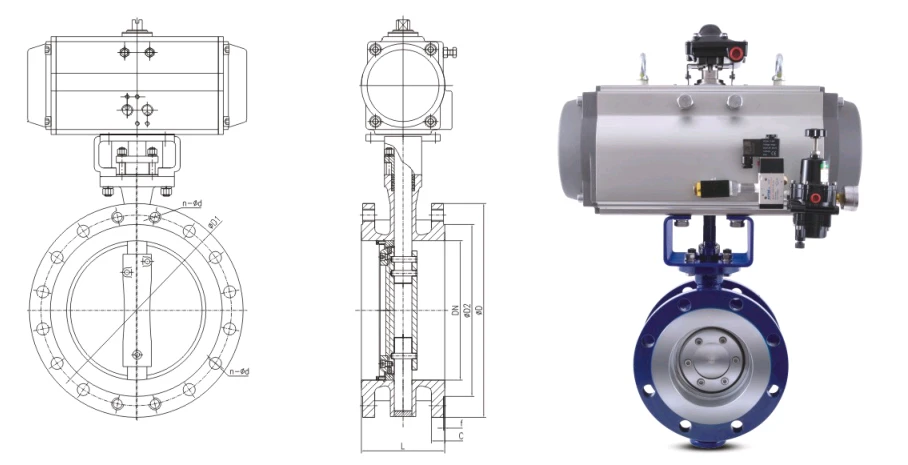

Technical Parameter:
| Nominal txoj kab uas hla DN (mm) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | C (mm) | H (mm) | n-d |
|---|---|---|---|---|---|---|---|
| 80 | 114 | 200 | 160 | 132 | 20 | 310 | 8-18 |
| 100 | 127 | 220 | 180 | 156 | 22 | 325 | 8-18 |
| 125 | 140 | 250 | 210 | 184 | 22 | 360 | 8-18 |
| 150 | 140 | 285 | 240 | 211 | 24 | 395 | 8-22 |
| 200 | 152 | 340 | 295 | 266 | 24 | 480 | 12-22 |
| 250 | 165 | 405 | 355 | 319 | 26 | 550 | 12-26 |
| 300 | 178 | 460 | 410 | 370 | 28 | 610 | 12-26 |
| 350 | 190 | 520 | 470 | 429 | 30 | 710 | 16-26 |
| 400 | 216 | 580 | 525 | 480 | 32 | 755 | 16-30 |
| 450 | 222 | 640 | 585 | 548 | 40 | 835 | 20-30 |
| 500 | 229 | 715 | 650 | 609 | 44 | 900 | 20-33 |
| 600 | 267 | 840 | 770 | 720 | 54 | 1060 | 20-36 |
| 700 | 292 | 910 | 840 | 794 | 40 | 1170 | 24-36 |
| 800 | 318 | 1025 | 950 | 901 | 42 | 1320 | 24-39 |
| 900 | 330 | 1125 | 1050 | 1001 | 44 | 1440 | 28-39 |
| 1000 | 410 | 1255 | 1170 | 1112 | 46 | 1640 | 28-42 |
| 1200 | 470 | 1485 | 1390 | 1328 | 52 | 1850 | 32-48 |
| 1400 | 530 | 1685 | 1590 | 1530 | 58 | 2040 | 36-48 |
| 1600 | 600 | 1930 | 1820 | 1750 | 64 | 2280 | 40-55 |
| 1800 | 670 | 2130 | 2020 | 1950 | 68 | 2495 | 44-55 |
| 2000 | 760 | 2345 | 2230 | 2150 | 70 | 2685 | 48-60 |
| Tus txheej txheem tswj hwm | Scope ntawm daim ntawv thov | |||
| Tsim thiab tsim khoom | JB / T8527, GB / T12224, API 609, ASME B16.34 thiab lwm yam. | Nominal txoj kab uas hla | DN50-DN3600 2"-144" |
Txawv li qub muaj qhov sib txawv. Thov hu rau kom paub meej |
| Kev sib txuas flange | GB / T9113.1 ~ 9113.4, ASME B16.5, ASME B16.47 thiab lwm yam. | Nominal siab | PN2.5-PN260 Class150-Class1500 | |
| Qauv ntev | GB / T12221API609 IS05752, thiab lwm yam.Standard | Qhov kub thiab txias | -196C-600C | |
| Kev tshuaj xyuas thiab kev sim | JB / T9092 GB / T26480 API598 IS05208 thiab lwm yam.Standard | Txoj kev sib txuas | Flange hom, buttweld hom, wafer hom, lug hom, thiab lwm yam. | |
| Khoom siv lub cev | Carbon steel, chrome molybdenum hlau, austenitic stainless hlau, duplex stainless hlau, titanium alloy, Hastelloy, Monel, thiab lwm yam. | |||
Khoom nta:
Premium Hlau Sealing: Hardened stainless hlau lub rooj thiab disc kom ntseeg tau tias kaw - tawm txawm tias tom qab siv ntev
High -Temp/High-Pressure Design: Haum rau cov kev pab cuam txog li 650℃thiab ANSI Class 600 siab ntsuas
Compact & Lightweight: 30% sib dua li lub rooj vag li qub nrog kev sib piv
Bi-Directional Flow: Kev sib khi zoo heev hauv ob qho kev qhia ntws
Tsim Qhov Zoo:
Triple- qauv offset tiv thaiv hnav thiab ua kom tsis muaj paug
Hluav taws kub- kev tsim kho kom zoo raws li API 607/6FA cov qauv
Tsawg ua haujlwm torque txo cov kev xav tau ntawm actuator
Kev tu- ua haujlwm dawb nrog lub neej ua haujlwm ntev
Cov ntawv thov raug:
Refinery thiab petrochemical txheej txheem
Fais fab nroj tsuag steam systems
High -kub kis tau tus mob
Kev ua tshuaj lom neeg nrog abrasive media
