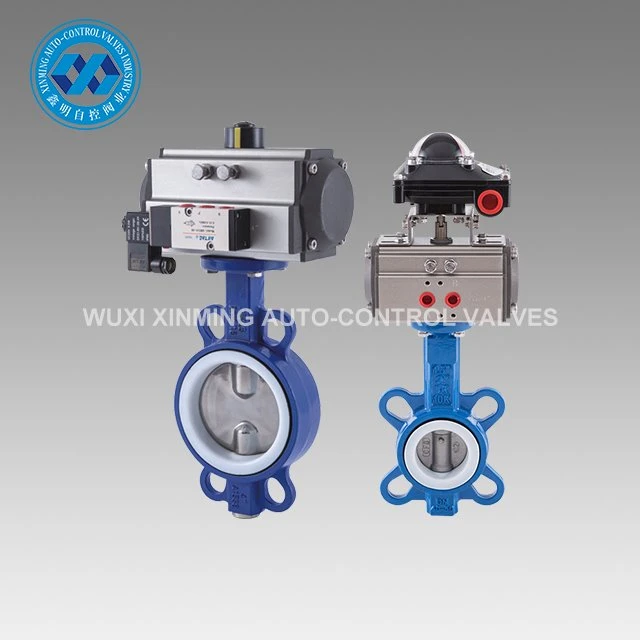

Cov hlau nplaum npauj npaim valve yog ib qho yooj yim regulating valve, thiab nws kuj tseem siv tau rau -tawm tswj ntawm qis - cov kav xa dej tawm. Txhawm rau pib thiab nres nres sai dua lub cev muaj zog- tsav li qub, uas ua haujlwm ntawm huab cua compressed. Koj yuav tsum tswj cov huab cua mus rau lub actuator siv ob qho tib si hluav taws xob tsav valve lossis phau ntawv qhib / tawm valve. Valves tsis tas yuav tsum muaj qhov qis qis qis ntawm qhov nkag thiab qhov hluav taws xob rau kev ua haujlwm.
Khoom Paub meej:
| Khoom npe | Hlau Npauj Npaim Valve |
| Hom lub npe | XM thiab OEM kuj txais |
| Npauj Npaim Valve loj | 25mm-1000mm |
| Daim ntawv pov thawj | CE, ATEX, SIL3, ISO9001: 2016 |
| Hom Valve | Npauj npaim |
| Rau Siv Nrog | Dej, roj, huab cua, roj, nkev, dej haus |
| Khoom siv foob | hlau-rau- hlau |
| Specifications Tau | API 609 Cov |

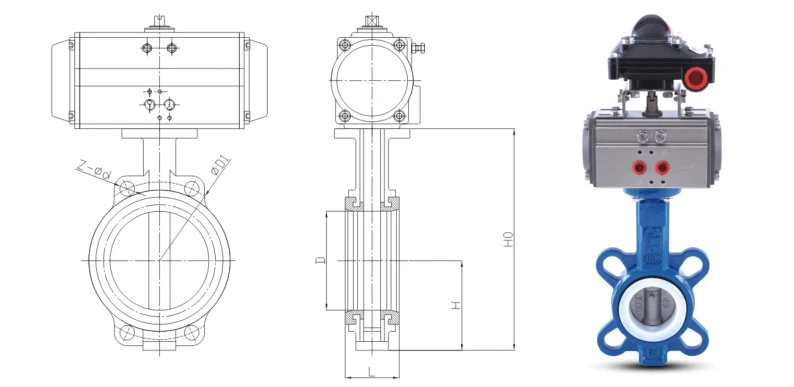

Technical Parameter:
| Nominal txoj kab uas hla | D (mm) | D1 (mm) | H (mm) | H0 (mm) | L (mm) | Z-Ød | |
|---|---|---|---|---|---|---|---|
| mm | nti | ||||||
| 50 | 2" | 52.9 | 120 | 80 | 241 | 42 | 4-23 |
| 65 | 2.5" | 65.5 | 136.2 | 89 | 264 | 44.7 | 4-26.5 |
| 80 | 3" | 78.8 | 160 | 95 | 276 | 45.2 | 8-18 |
| 100 | 4" | 104 | 185 | 114 | 314 | 52.1 | 4-24.5 |
| 125 | 5" | 123.3 | 215 | 127 | 340 | 54.4 | 4-23 |
| 150 | 6" | 155.6 | 238 | 139 | 364 | 55.8 | 4-25 |
| 200 | 8" | 202.5 | 295 | 175 | 435 | 60.6 | 4-25/23 |
| 250 | 10" | 250.5 | 357 | 203 | 495 | 65.6 | 4-29 |
| 300 | 12" | 301.6 | 407 | 242 | 579 | 76.5 | 4-29 |
| 350 | 14" | 333.3 | 467 | 267 | 635 | 76.5 | 4-30 |
| 400 | 16" | 389.6 | 515/525 | 309 | 709 | 86.5 | 4-26/30 |
| 450 | 18" | 440.5 | 565/585 | 328 | 750 | 105.5 | 4-26/30 |
| 500 | 20" | 491.6 | 620/650 | 361 | 841 | 131.8 | 4-26/33 |
| 600 | 24" | 592.5 | 725/770 | 459 | 1021 | 152 | 20-30/36 |
| 700 | 28" | 695 | 840 | 520 | 1144 | 163 | 24-30/20-36 |
| 800 | 32" | 794.7 | 950 | 591 | 1263 | 188 | 24-33/39 |
| 900 | 36" | 864.7 | 1050 | 656 | 1376 | 203 | 24-33 |
| 1000 | 40" | 965 | 1160 | 721 | 1521 | 216 | 24-36 |
| Valve tsim thiab tsim | Raws li GB / T12238 tus qauv | ||||||
| Valve flange loj | Raws li GB / T9113, GB / T17241.6 tus qauv | ||||||
| Cov qauv ntev ntawm lub valve | Raws li GB / T12221 tus qauv | ||||||
| Valve soj ntsuam thiab sim | Raws li GB / T13927 tus qauv | ||||||
Khoom nta:
• Siab- siab xoom xoom: Plaub hom vulcanized valve rooj: EPDM/Viton®/NBR/PTFE, bidirectional npuas- qib sealing, mus txog 16 bar.
• Lub teeb yuag: Qhov hnyav ntawm tib lub caliber tsuas yog 30-40% ntawm lub pob valve, txo cov nqi txhawb nqa kav dej.
• Lub neej ntev: Lub qia valve yog ua los ntawm 416/316 SS duplex stainless hlau, thiab cov kabmob siv tus kheej -lubricating non-hlau bushing los tiv thaiv qaug dab peg.
• Rwb thaiv tsev-tus phooj ywg: Lub caj dab txuas ntxiv tuaj yeem npog nrog 2" txheej rwb thaiv tsev, haum rau HVAC thiab cov kav dej sab nraud.
• Ntau yam tsav: tes tuav, gearboxes, hluav taws xob, pneumatic, thiab hydraulic actuators, txhua yam txuas nrog raws li ISO 5211 tus qauv flanges.
• Ua tiav cov ntawv pov thawj: WRAS, ACS daim ntawv tso cai dej haus, los ntawm API-609, BS EN 593, thiab ISO 5752.
Peb qhov kev pabcuam:
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Zoo heev Tom qab- kev pabcuam
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
Cov khoom siv:
• Cov dej kub thiab txias, dej hiav txwv, dej phwj tuaj, thiab cov kav dej sib txuas
• HVAC cua txias tshuab, hauv cheeb tsam cua sov
• Petroleum, tshuaj, khoom noj, tshuaj, thiab nkoj tsim
• Khoom noj khoom haus- qib kua: dej haus, cawv, dej huv
• Roj thiab lub tshuab nqus tsev vacuum: roj, compressed cua, tshuab nqus tsev
Hais txog peb:

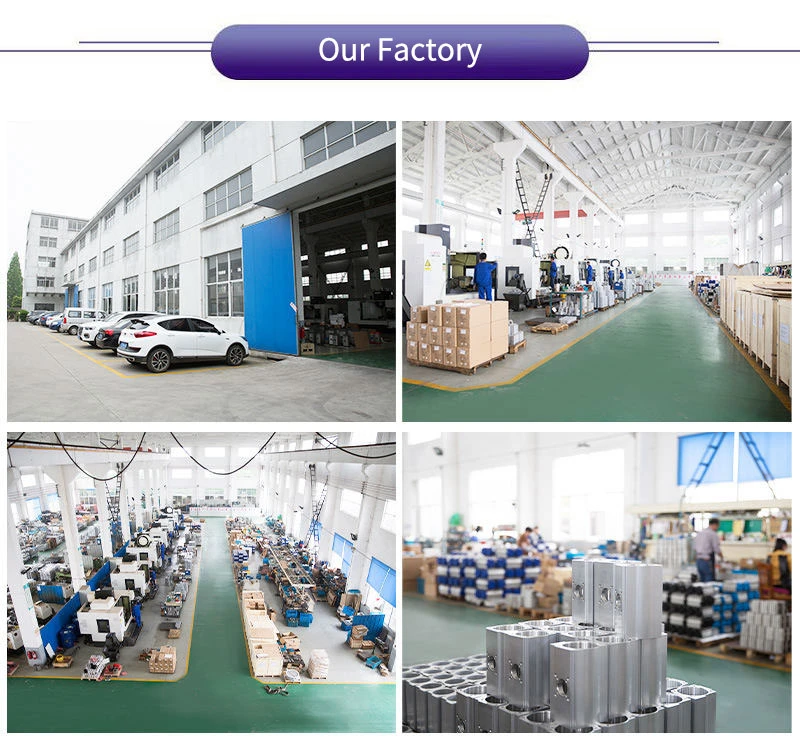

Wuxi Xinming Auto- tswj Valves Co., Ltd. tshwj xeeb hauv kev tsim ISO9001-certified XM series pneumatic actuators thiab tsis siv neeg tswj li qub, ua raws li ISO5211/DIN3337/VDI/VDE-3845/NAMUR cov qauv. Nrog rau R & D muaj peev xwm ua tau zoo thiab cov chaw tsim khoom, peb cov khoom ua haujlwm muaj ntau yam kev lag luam xws li roj & roj, tshuaj, thiab cov chaw tsim hluav taws xob, embodying peb txoj kev mob siab rau "Technology First, Quality Excellence" los ntawm cov kev daws teeb meem tshiab thiab kev ua tau zoo. Yog hais tias koj xav tau ib tug Ductile Iron Npauj Npaim Valve, thov hu rau peb.
