Khoom Taw Qhia

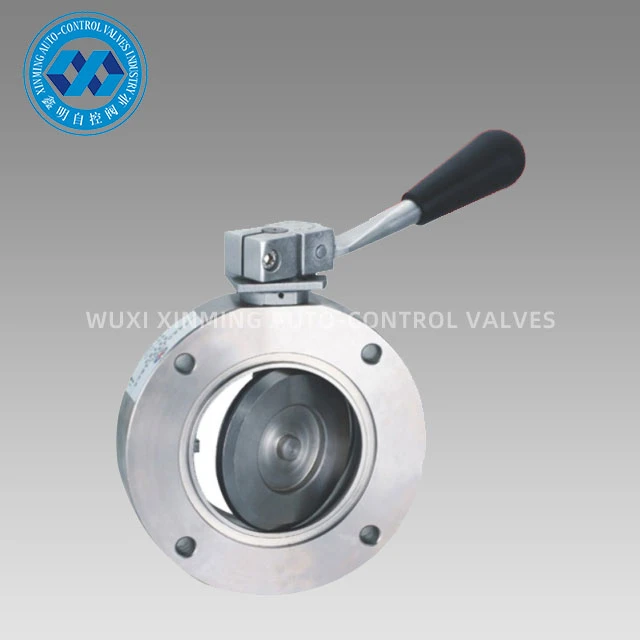

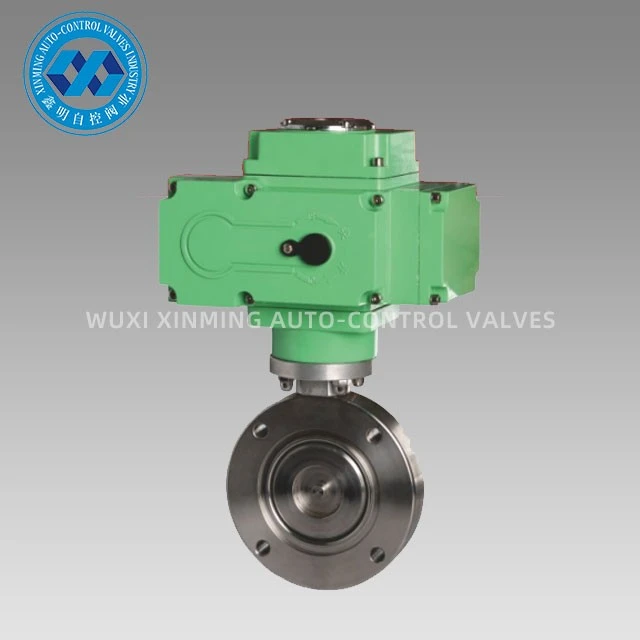

Lub Nqus Npauj Npaim Valve yog lub valve uas tau tsim los siv hauv cov khoom siv hluav taws xob tsawg - lub tshuab nqus tsev thiab cov kav dej nqus los tswj thiab cais cov pa tawm. Lub valve no, uas yog tsim los ntawm WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD., yog zoo meej rau cov haujlwm xws li semiconductor manufacturing, chemical processing, pharmaceutical equipment, and vacuum coating systems that need clean, leak-free flow ib puag ncig vim nws superior sealing kev ua tau zoo, compact tsim, thiab kev ua haujlwm zoo.

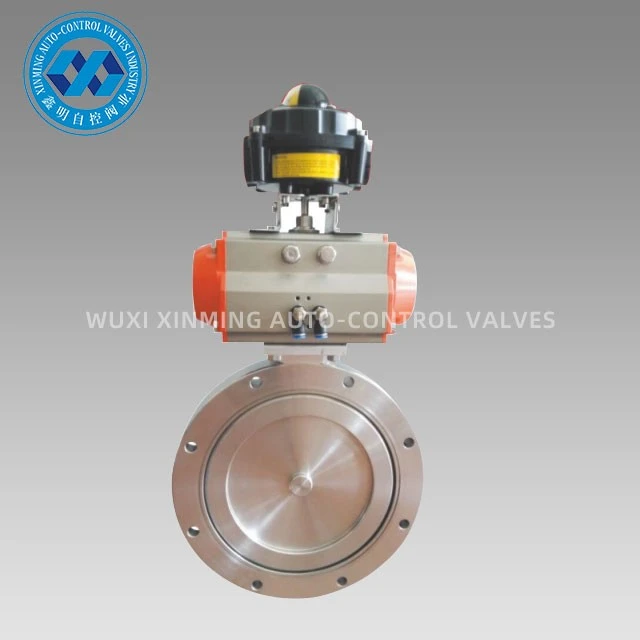

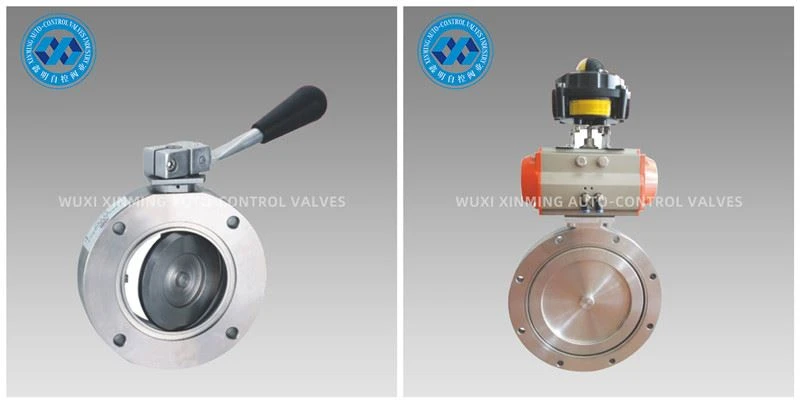

Peb Lub Nqus Npauj Npaim Valve ua kom lub neej ua haujlwm ntev txawm tias nyob hauv lub tshuab nqus tsev siab lossis cov pa roj corrosive los ntawm kev sib txuas qhov tseeb thiab ua haujlwm ntev. Nws muaj versatility rau ntau yam automation xav tau vim nws los nyob rau hauv ob qho tib si phau ntawv thiab pneumatic hom.
Cov ntsiab lus ceev
| Khoom npe | Nqus Npauj Npaim Valve |
| Hom lub npe | XM, thiab OEM kuj txais |
| Npauj Npaim Valve loj | 25mm-1000mm |

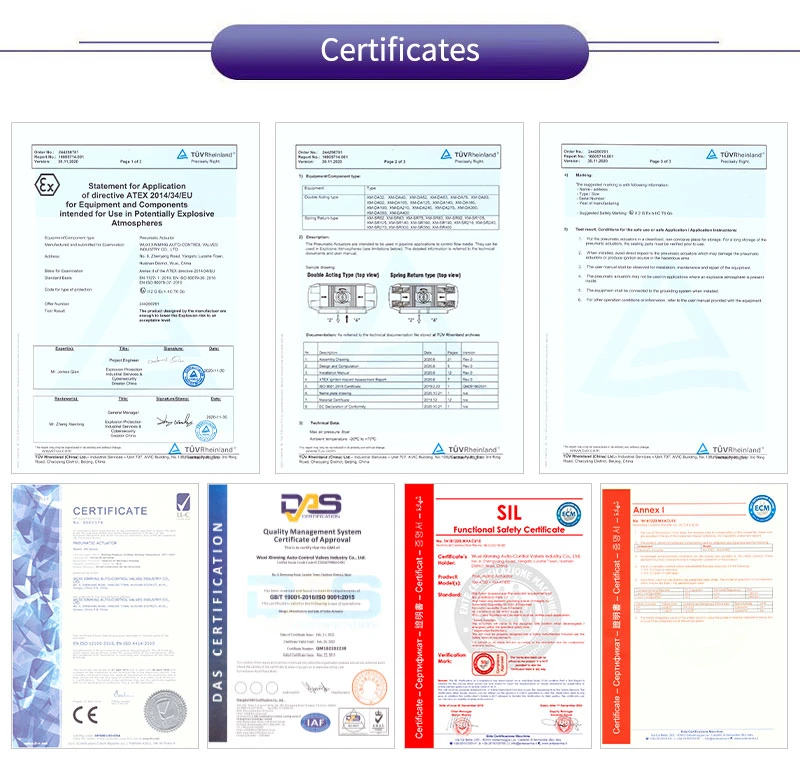

| Daim ntawv pov thawj | CE, ATEX, SIL3, ISO9001: 2016 |
Khoom nta
1. Valve Qhov ntau thiab tsawg ntawm 1/2 "mus rau 6"
2. Forged lub cev thiab disc kom zoo dua.
3. Cov ntaub ntawv txheem yog 304 thiab 316L stainless hlau.
4. Vacuum Range: Ntau dua lossis sib npaug ntawm 10-8 Torr
5. Ntau phau ntawv qhia lossis tsis siv neeg ua haujlwm muaj.
6. Polyacetal bushings rau lub valve disc txo kev sib txhuam thiab ua kom lub neej voj voog.
7. Ib qho kev xaiv tis txiv ntoo cov khoom siv muaj rau kev sib koom ua ke ntawm lub valve thiab disassembly.
8. Npauj npaim li qub yog muab los ntawm kev ua tiav. Lwm cov khoom tiav kuj muaj.
9. Lub kaw lus muaj peev xwm them taus mus txog 400℉ (200 degree). Txawm li cas los xij, cov cua kub siab tshaj 302 ℉ (150 degree) tuaj yeem ua rau lub gasket tsis zoo.

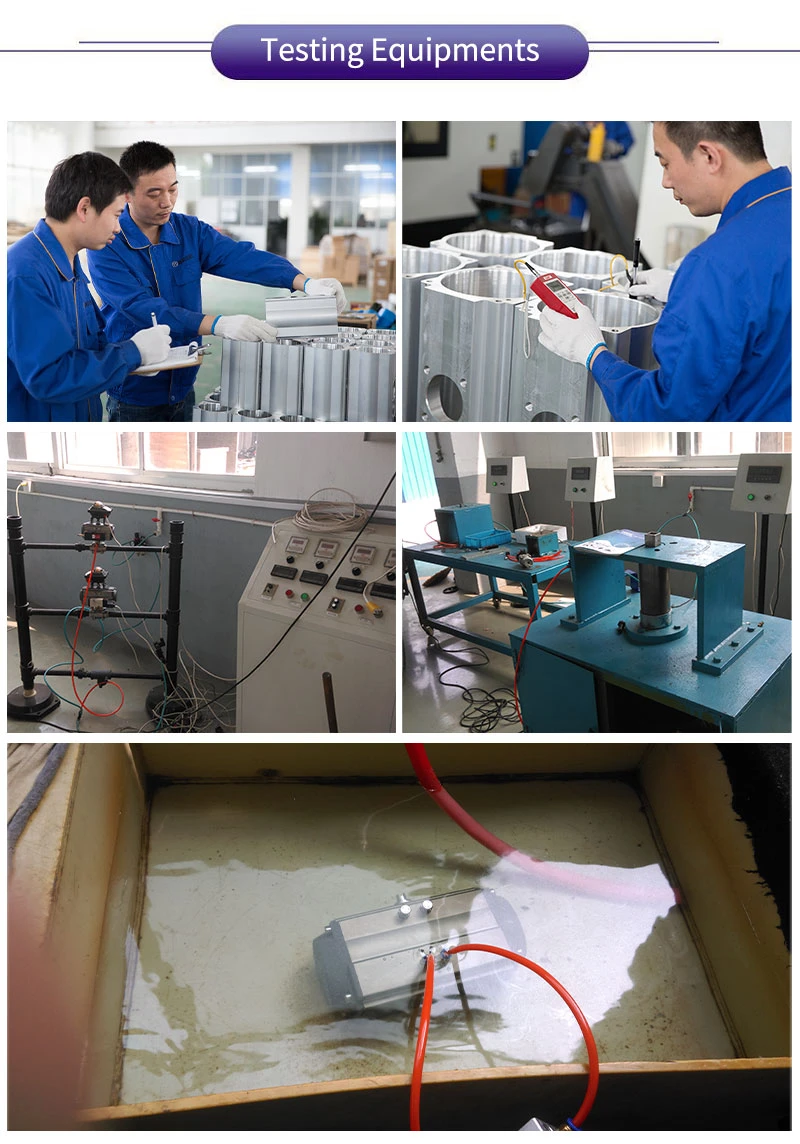

10. Valve sets yog 100% kuaj ua ntej shipping.
11. Cov ntaub ntawv zaum hauv Viton, Silicon, thiab EPDM.
12. Seat Temperature Range:
Fluorocarbon FKM (Viton): -5℃-204℃(23℉-399℉)
Silicon: -50℃-180℃(-58 ℉-356 ℉)
Ethylene Propylene Diene Monomer (EPDM): -50℃-135℃(-58℉-275℉)

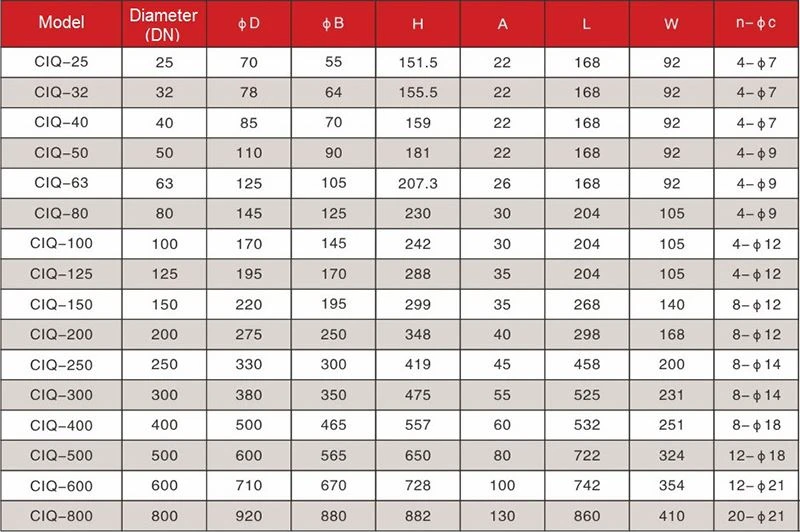

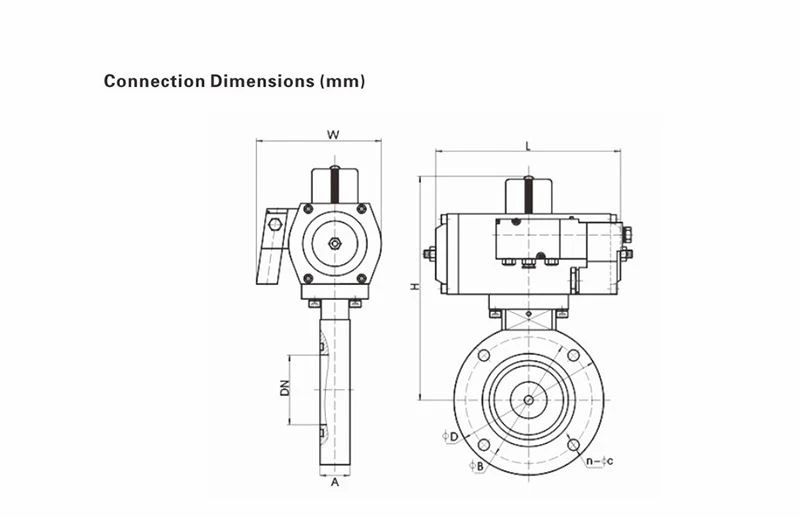

Technical Parameter
Cov khoom siv
Lub Nqus Npauj Npaim Valve yog dav siv hauv:
1
Vacuum pipelines thiab chambers
2
Semiconductor thiab cov khoom siv hluav taws xob
3
Tshuaj thiab kws tshuaj industries
4
Lub tshuab nqus tsev vacuum thiab txheej tshuab
5
Laboratory thiab kev tshawb fawb systems
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 1000 units ib hlis Pneumatic Npauj Npaim Valve

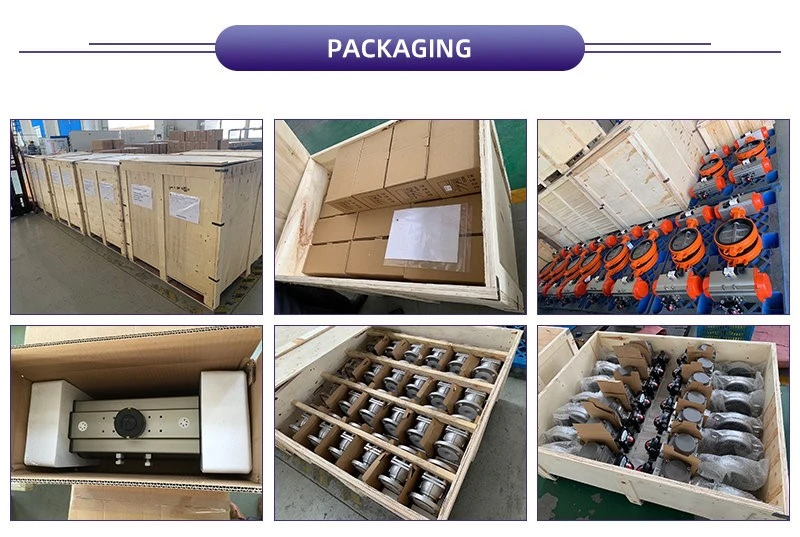

Packing & Delivery
Packing nthuav dav:
1) Yog tias muaj ntau, rooj plaub plywood
2) Yog tias muaj me me, Carton lossis Plywood pallet
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
| Quantity (Units) | 1-50 | 51-1000 | ＞1001 |
| Est. Sijhawm (hnub) | Cov khoom hauv Tshuag | 30 | Yuav tsum sib tham |

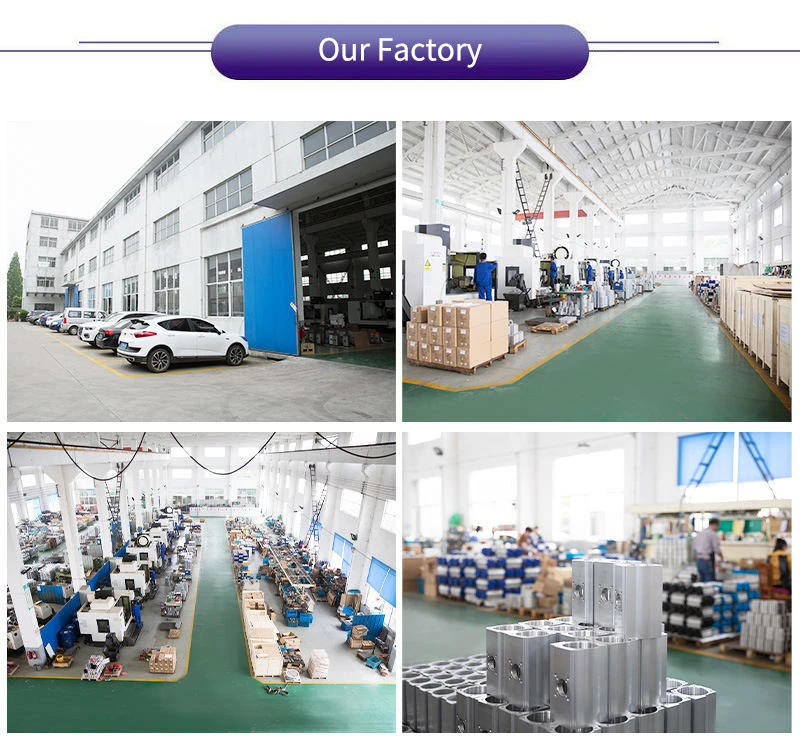

Tuam txhab Taw Qhia
- Tshaj li 15 xyoos ntawm kev tsim khoom Kev paub hauv kev tswj tsis siv neeg li qub thiab cov khoom siv lub tshuab nqus tsev.
- Cov khoom lag luam muaj xws li pneumatic actuators, pob li qub, npauj npaim li qub, thiab solenoid li qub.
- Advanced CNC Machining Equipment kom ntseeg tau tias precision, durability, thiab zoo ib yam khoom zoo.
- Ntiaj teb Export Experience - ntseeg tau los ntawm cov neeg siv khoom thoob ntiaj teb rau kev ua tau zoo thiab ua kom sai tom qab- kev muag khoom.
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Zoo heev tom qab- kev pabcuam
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
FAQ
Q 1: Cov nqe lus them nqi muaj peev xwm?
A1: T / T, L / C, Western Union.
Q 2: Cov nqe lus ua lag luam?
A 2: Raws li Incoterms 2010, feem ntau nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q 3: Kev lees paub ntawm kev hais lus?
A3: Hauv 30 hnub.
Q 4: Hom kev xa khoom xa tuaj?
A 4: Los ntawm hiav txwv, los ntawm huab cua, los ntawm kev nthuav qhia, lossis los ntawm kev tsheb ciav hlau.
Q 5: Warranty?
A 5: Ib xyoos lav zoo pub dawb, thiab kev pabcuam them tag nrho.
Q 6: Kev teeb tsa thiab kev cob qhia?
A 6: ib txwm yees duab qhia rau kev teeb tsa. Yog tias tsim nyog, them nyiaj txawv teb chaws engineering muab kev pabcuam.
