Khoom Taw Qhia

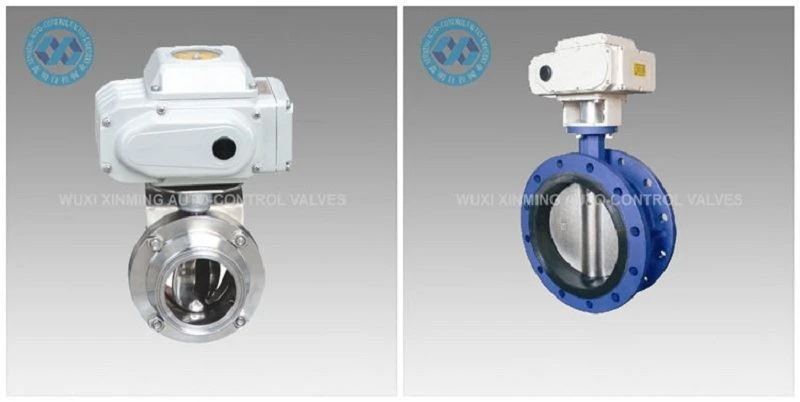

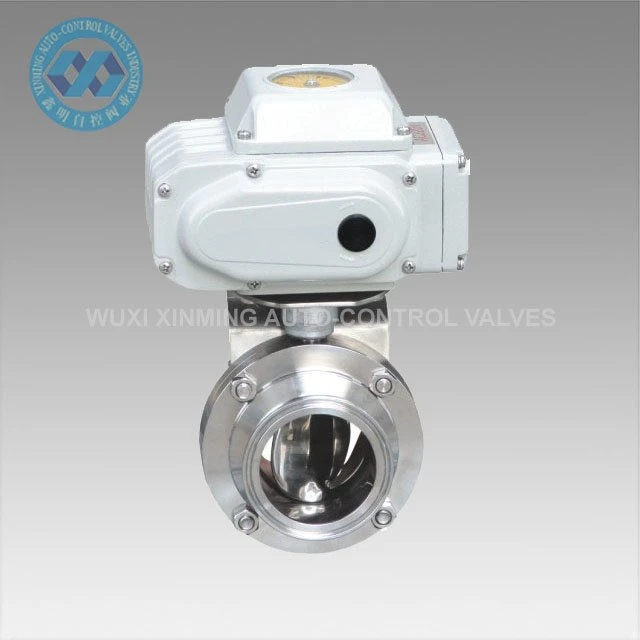

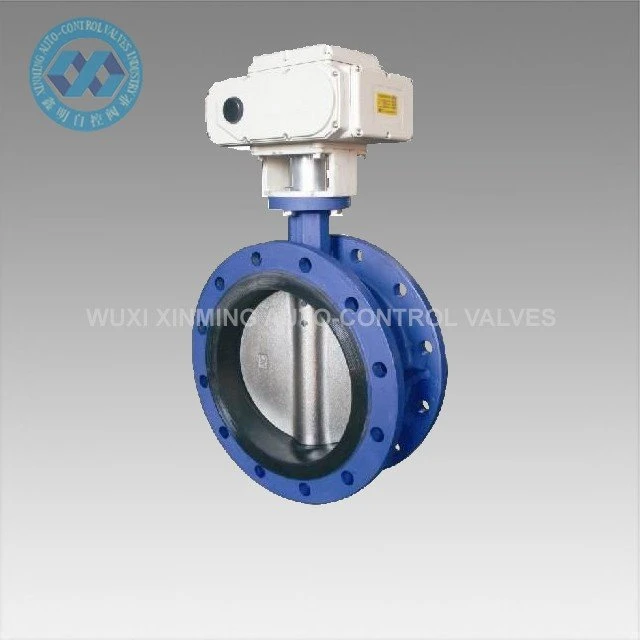

Tsis siv neeg pib thiab nres ntws hauv flanged pipelines nrog Hluav Taws Xob Npauj Npaim Valve uas ua haujlwm ntawm hluav taws xob. Tag nrho cov nquag qhib tshwj tsis yog actuated.Valves nrog phau ntawv override tuaj yeem ua haujlwm thaum muaj hluav taws xob.
Lub actuator yog ncaj qha mus rau lub valve lub cev kom txo qis zog thiab txo qhov hnav. Qhov taw qhia pom qhov muag nyob rau sab saum toj ntawm tus actuator qhia seb lub valve qhib lossis kaw. Ob tug ncej, ob chav pov (SPDT) pab hloov pauv tso cai rau koj los txuas cov li qub rau qhov kub thiab txias - cov khoom siv saib xyuas, programmable logic controllers, lossis conveyor sirens. Lub tshuab cua sov sab hauv yuav pib thaum lub valve yog actuated los tiv thaiv lub cev muaj zog puas tsuaj los ntawm condensation buildup. Tag nrho cov li qub yog lug style; lawv lub qhov qauv sib tw ANSI flanges ntawm tib lub yeeb nkab loj. Lawv tuaj yeem raug kaw ntawm ob lub flanges, los yog ntsia liaj qhov rooj ncaj qha mus rau ib qho flange rau kev pabcuam ib qho kawg ntawm cov kav dej tsis muaj kev ntxhov siab rau sab nraud.

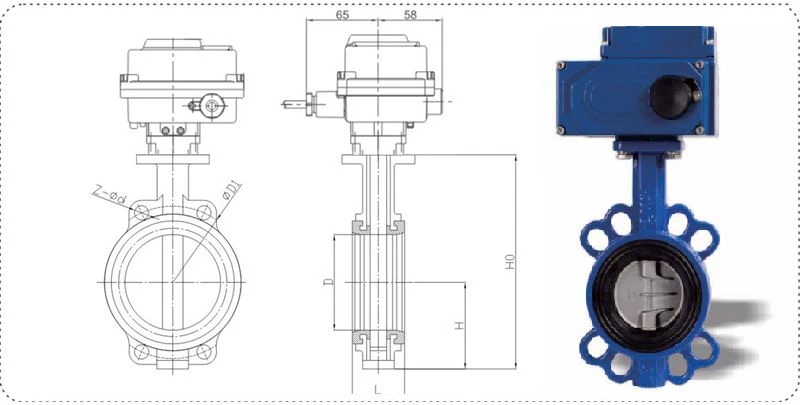

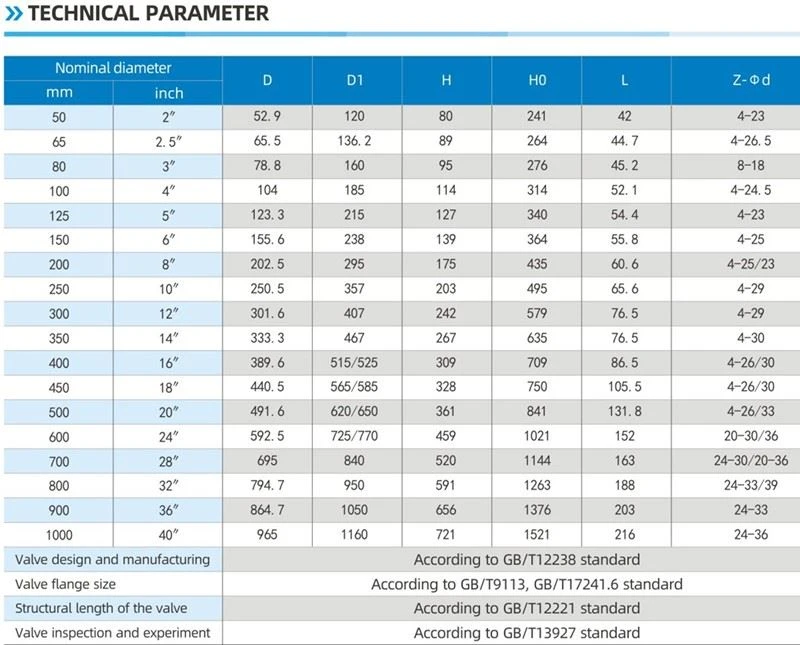

Technical Parameter
| Khoom npe | Hluav taws xob npauj npaim Valve |
| Hom lub npe | XM, thiab OEM kuj txais |
| Npauj Npaim Valve loj | 25mm-1000mm |
| Daim ntawv pov thawj | CE, ATEX, SIL3, ISO9001: 2016 |
| Hom Valve | Npauj npaim |
| Rau Siv Nrog | Dej, roj, cua, Natural Gas, Chav |
| Khoom siv foob | EPDM Roj Hmab |
| Specifications Tau | API 609 Cov |
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 1000 units ib hlis hluav taws xob Npauj Npaim Valve
Packing & Delivery
Packing nthuav dav:
1). Yog tias muaj ntau, cov ntaub ntawv plywood
2). Yog tias muaj me me, Carton lossis Plywood pallet
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
| Quantity (Units) | 1-50 | 51-1000 | ＞1001 |
| Est. Sijhawm (hnub) | Cov khoom hauv Tshuag | 30 | Yuav tsum sib tham |
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Zoo heev tom qab- kev pabcuam
5) Ntawm -txoj kev txhawb nqa
6) Lub sijhawm xa khoom sai
FAQ
Q 1: Cov nqe lus them nqi muaj peev xwm?
A1: T / T, L / C, Western Union.
Q 2: Cov nqe lus ua lag luam?
A 2: Raws li Incoterms 2010, feem ntau nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q 3: Kev lees paub ntawm kev hais lus?
A3: Hauv 30 hnub.
Q 4: Hom kev xa khoom xa tuaj?
A 4: Los ntawm hiav txwv, los ntawm huab cua, los ntawm kev nthuav qhia, lossis los ntawm kev tsheb ciav hlau.
Q 5: Warranty?
A 5: Ib xyoos lav zoo pub dawb, thiab kev pabcuam them tag nrho.
Q 6: Kev teeb tsa thiab kev cob qhia?
A 6: ib txwm yees duab qhia rau kev teeb tsa. Yog tias tsim nyog, them nyiaj txawv teb chaws engineering muab kev pabcuam.
Cim npe nrov: hluav taws xob npauj npaim valve, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, yuav, nqe, kev muag, Tshuag, dawb qauv
