Khoom Taw Qhia
Cov Npauj Npaim Npauj Npaim Zoo no muaj cov sab hauv uas tiv thaiv cov khoom lag luam thiab tiv thaiv kab mob kev loj hlob txhawm rau txhawm rau tswj cov txheej txheem huv hauv cov khoom noj thiab dej haus, Txhua tus muaj cov khoom siv huv huv kom yooj yim rau kev sib dhos yooj yim hauv cov kab ke uas xav tau kev tu ntau zaus. Lawv maj mam qhib thiab kaw kom kho thiab tswj kev ntws.
Paub meej sai

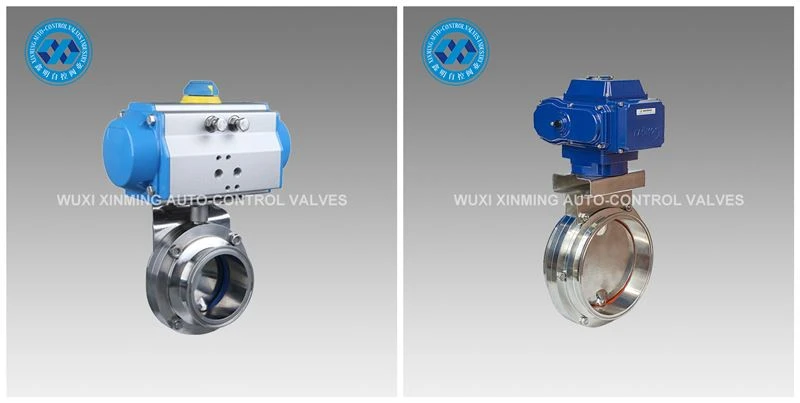

Khoom Lub Npe: Huv Npauj Npaim Valve
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Npauj npaim Valve loj: 25mm-1000mm
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016
Hom Valve: Npauj Npaim
Rau Siv Nrog: Khoom Noj, Dej Haus
Parameter kev
Cov Lus Qhia Tshwj Xeeb - Stainless Hlau Huv Npauj Npaim Valve rau Khoom Noj, Mis, Brewery thiab Biopharm thiab lwm yam.
Cov Nta Ntawm Cov Npauj Npaim Huv Huv | ||||
Siab Ua Haujlwm | DN20 ~ DN100 / ½ "~ 4" | 0 ~ 10 hli | ||
DN125 ~ DN150 / 5 ″ ~ 6 ″ | 0 ~ 8 hli | |||
DN200 ~ DN300 / 8 ″ ~ 12 ″ | 0 ~ 5 hli | |||
Ua hauj lwm | Nruam Ua Haujlwm Kub | -10 ° C ~ -121 ° C (EPDM) | ||
Kev Ua Kom Kub Kub | 150 ° C (Max. 20 feeb) | |||
Kev sib txuas | Cov Qauv Sib Txuas | DIN, SMS, 3A, ISO, RJT, IDF thiab lwm yam | ||

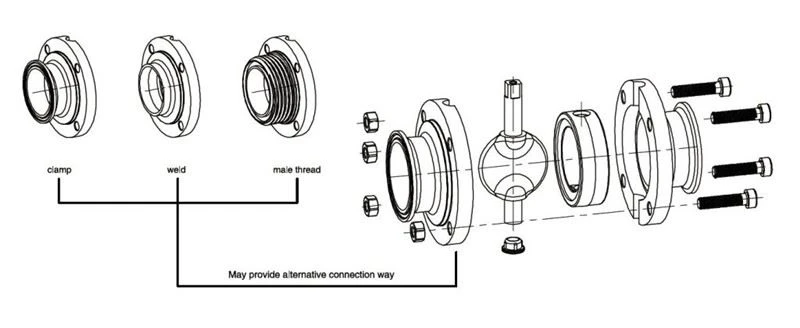

Txoj Kev Sib Txuas | Welded, Threaded, Clamped, Flanged | |||
Khoom siv | ||||
Hlau Khoom | Ntub Dej | 304 (1.4301) lossis 316L (1.4404) forged | ||
Lwm Cov Hlau | 304 (1.4301) | |||
Daim ntawv pov thawj EN 10204 3.1B muaj nyob ntawm kev thov. | ||||
Foob Khoom | Txuj | EPDM | ||
Kev xaiv | FPM, Silicone, NBR | |||
Txhua daim ntawv foob ua raws li FDA 177.2600. | ||||
Kev tuav tes& Pneumatic Actuator | ||||

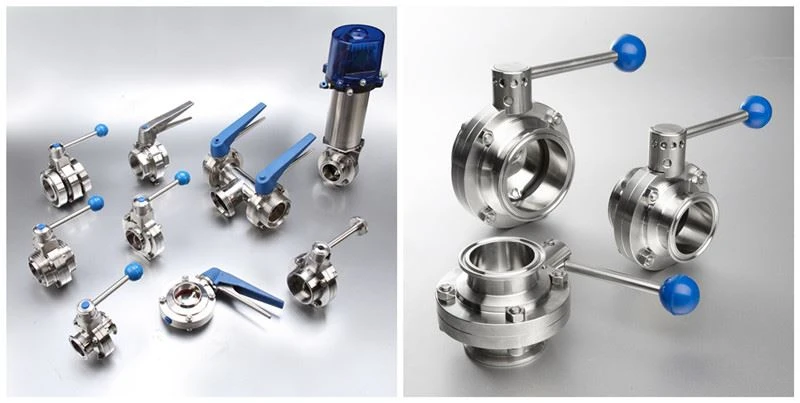

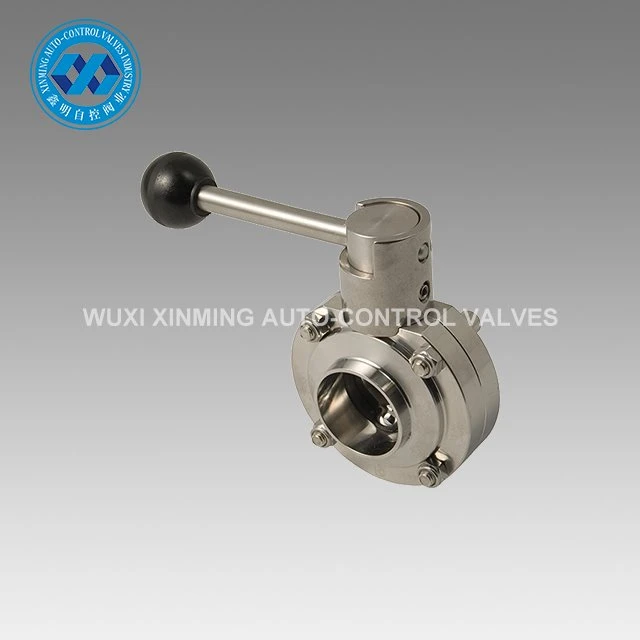

Kev tuav tes | Txuj | 4-txoj hauj lwm rub tuav | ||

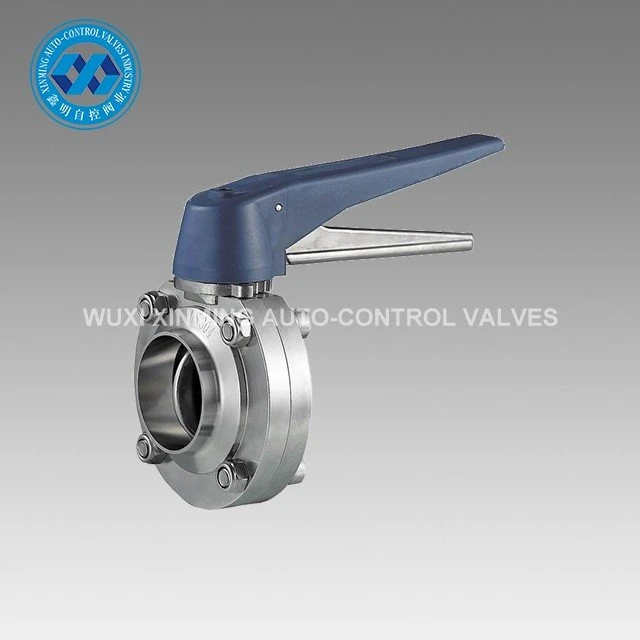

Kev xaiv | Yas ntau txoj haujlwm tuav (12 txoj haujlwm) | |||
Stainless hlau ntau txoj haujlwm tuav (12 txoj haujlwm) | ||||

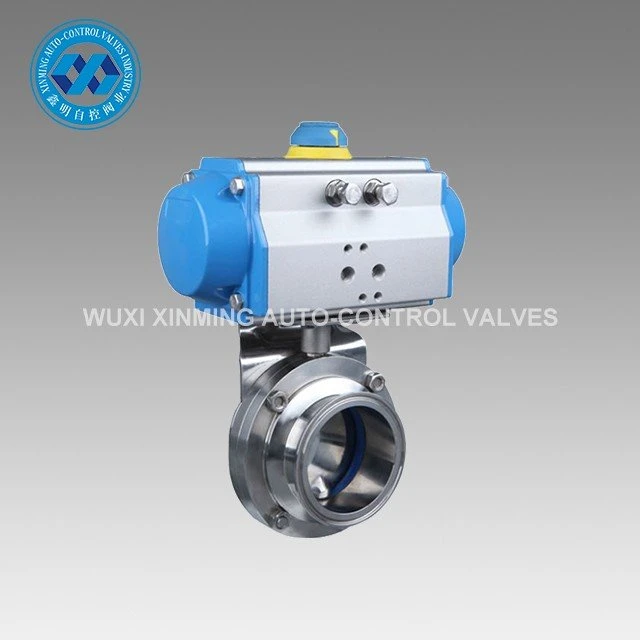

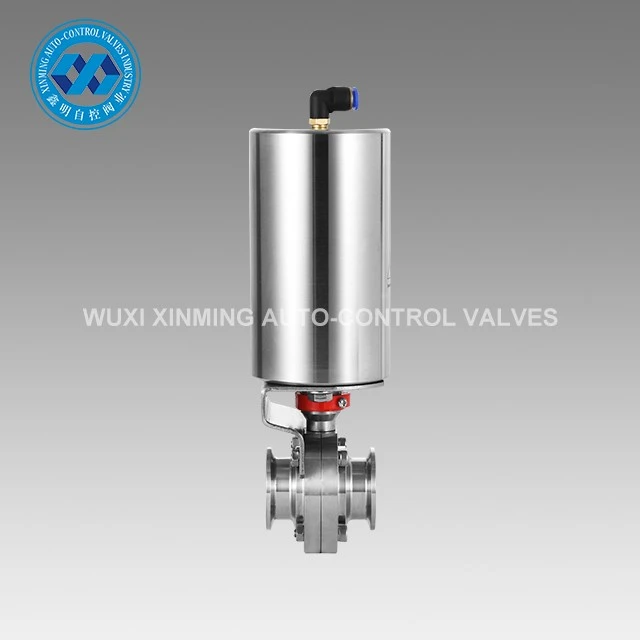

Pneumatic | Txuj | Stainless hlau Pneumatic | Txuj | Cua/Cua (A/A) |
Kev xaiv | Feem ntau Kaw (NC)/ Qhib Qhib (NO) | |||
Kev xaiv | Aluminium Alloy Pneumatic | Txuj | Cua/Cua (A/A) | |
Kev xaiv | Feem ntau Kaw (NC)/ Qhib Qhib (NO) | |||
Cov Khoom Siv Cua | Qhuav& Lim Cua Txias | |||
Muaj Peev Xwm Muaj Peev Xwm
Kev Muaj Peev Xwm: 1000 units hauv ib hlis Pneumatic Npauj Npaim Valve
Ntim& Kev xa khoom
Cov ntsiab lus ntim: 1). Yog tias muaj ntau, rooj plaub plywood
2). Yog tias muaj me me, Thawv lossis Plywood pallet
Chaw nres nkoj tawm mus: Shanghai, Suav
Lub Sijhawm Ua Haujlwm:
Quantity (Chav Nyob) | 1-50 | 51-1000 | ＞1001 |
Kwv yees Sijhawm (hnub) | Cov khoom hauv Tshuag | 30 | Yuav tsum tau sib tham |
Daim ntawv thov
Cov npauj npaim huv huv yog lub npauj npaim stainless hlau npauj npaim valve nrog qhov ua tau zoo thiab kev ua kom huv rau kev lag luam khoom noj khoom haus thiab dej haus, npias brewing, biopharmaceutical thiab tshuaj lom neeg zoo. Stainless hlau npauj npaim npauj npaim valve muaj cov qauv yooj yim, nws yog tsim los ntawm kev sib cais lub cev, lub pob valve, lub qia thiab kev tsav tsheb. Piv nrog lub pob huv huv, lub npauj npaim huv tsis tsuas yog muaj cov qauv yooj yim, qhov loj me, lub cev hnyav, kev siv cov khoom me, kev teeb tsa me me thiab lwm yam, tab sis kuj tseem muaj lub zog me me tsav, ua haujlwm yooj yim thiab nrawm, thiab kev tswj kom zoo , cov yam ntxwv sib khi thiab lwm yam. Thaum lub npauj npaim valve nyob hauv txoj haujlwm qhib, qhov tuab ntawm lub disc yog qhov tsuas tiv thaiv thaum nruab nrab ntws los ntawm lub cev lub cev. Yog li qhov kev poob siab tsim los ntawm npauj npaim valve me me, lub valve muaj cov yam ntxwv tswj tau zoo dua. Hauv kev lag luam qib zaub mov, npauj npaim huv huv yog ib qho ntawm qhov loj tshaj plaws thiab feem ntau huv huv.
Peb Qhov Kev Pabcuam
1) 7x24 teev xov tooj
2) Kev tswj kom nruj
3) Zoo zoo ntawm tus nqi tsim nyog
4) Zoo heev Tom qab-kev pabcuam
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
FAQ
Q1: Muaj peev xwm them nqe lus li cas?
A 1: T/T, L/C, Western Union.
Q2: Cov nqe lus lag luam?
A 2: Raws li Incoterms 2010, ib txwm nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q3: Kev siv tau cov lus hais?
A 3: Hauv 30 hnub.
Q4: Hom kev xa khoom?
A 4: Los ntawm hiav txwv, cua, nthuav qhia, lossis los ntawm kev tsheb nqaj hlau.
Q5: Warranty?
A 5: Ib xyoo lav zoo rau dawb, thiab them nyiaj tas mus li.
Q6: Kev teeb tsa thiab kev cob qhia?
A 6: cov lus qhia ib txwm siv rau kev teeb tsa. Yog tias tsim nyog, them nyiaj pabcuam kev tsim vaj tsev nyob txawv tebchaws.
