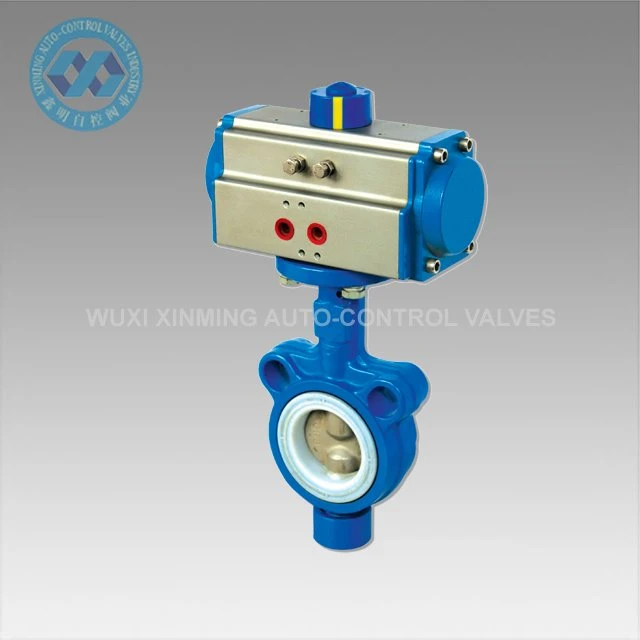

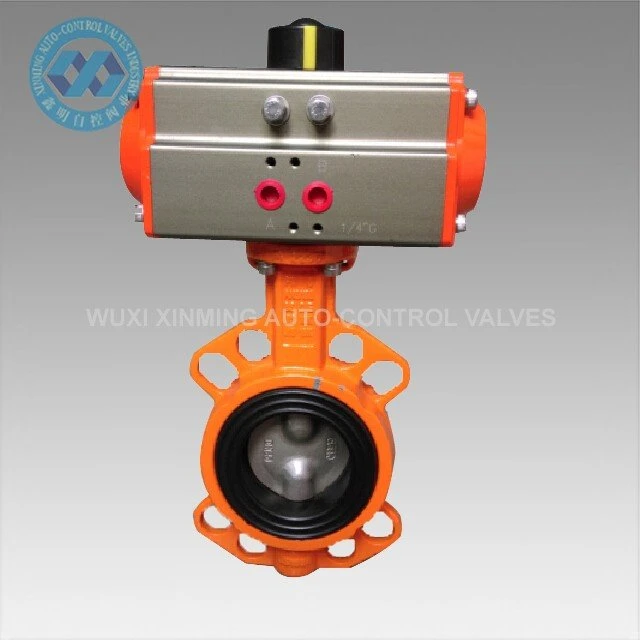

Lub wafer npauj npaim valve muaj cov qauv yooj yim, me me, lub teeb yuag, tus nqi qis, kev tswj tau yooj yim thiab kev ua haujlwm, qhov chaw zoo ncig, qhib thiab kaw nrawm, kev txuag hluav taws xob, thiab kev ua haujlwm zoo sealing, thiab nws muaj qhov zoo ntawm cov hlau tawv sealing thiab elastic seal.
Txhawm rau pib thiab nres nres sai dua lub cev muaj zog- tsav li qub, uas ua haujlwm ntawm huab cua compressed. Koj yuav tsum tswj cov huab cua mus rau lub actuator siv ob qho tib si hluav taws xob tsav valve lossis phau ntawv qhib / tawm valve. Valves tsis tas yuav tsum muaj qhov qis qis qis ntawm qhov nkag thiab qhov hluav taws xob rau kev ua haujlwm.
Lub actuator yog ncaj qha mus rau lub valve lub cev kom txo qis zog thiab txo qhov hnav. Qhov taw qhia pom qhov muag nyob rau sab saum toj ntawm tus actuator qhia seb lub valve qhib lossis kaw. Phau ntawv override tso cai rau koj khiav lub valve thaum lub hwj chim tawm.
Khoom Paub meej
| Khoom npe | Npauj Npaim Valve |
| Hom lub npe | XM thiab OEM kuj txais |
| Npauj Npaim Valve loj | 25mm-1000mm |
| Daim ntawv pov thawj | CE, ATEX, SIL3, ISO9001: 2016 |
| Hom Valve | Npauj npaim |
| Rau Siv Nrog | Dej, roj, huab cua, roj, nkev, dej haus |
| Khoom siv foob | EPDM Roj Hmab, NBR, PTFE, hlau-rau-hlau |
| Specifications Tau | API 609 Cov |

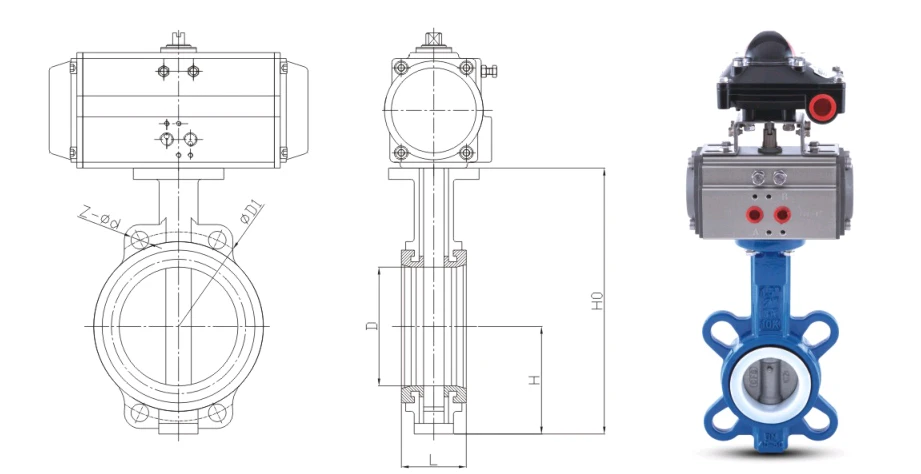

Technical Parameter:
| Nominal txoj kab uas hla | D (mm) | D1 (mm) | H (mm) | H0 (mm) | L (mm) | Z-Ød | |
|---|---|---|---|---|---|---|---|
| mm | nti | ||||||
| 50 | 2" | 52.9 | 120 | 80 | 241 | 42 | 4-23 |
| 65 | 2.5" | 65.5 | 136.2 | 89 | 264 | 44.7 | 4-26.5 |
| 80 | 3" | 78.8 | 160 | 95 | 276 | 45.2 | 8-18 |
| 100 | 4" | 104 | 185 | 114 | 314 | 52.1 | 4-24.5 |
| 125 | 5" | 123.3 | 215 | 127 | 340 | 54.4 | 4-23 |
| 150 | 6" | 155.6 | 238 | 139 | 364 | 55.8 | 4-25 |
| 200 | 8" | 202.5 | 295 | 175 | 435 | 60.6 | 4-25/23 |
| 250 | 10" | 250.5 | 357 | 203 | 495 | 65.6 | 4-29 |
| 300 | 12" | 301.6 | 407 | 242 | 579 | 76.5 | 4-29 |
| 350 | 14" | 333.3 | 467 | 267 | 635 | 76.5 | 4-30 |
| 400 | 16" | 389.6 | 515/525 | 309 | 709 | 86.5 | 4-26/30 |
| 450 | 18" | 440.5 | 565/585 | 328 | 750 | 105.5 | 4-26/30 |
| 500 | 20" | 491.6 | 620/650 | 361 | 841 | 131.8 | 4-26/33 |
| 600 | 24" | 592.5 | 725/770 | 459 | 1021 | 152 | 20-30/36 |
| 700 | 28" | 695 | 840 | 520 | 1144 | 163 | 24-30/20-36 |
| 800 | 32" | 794.7 | 950 | 591 | 1263 | 188 | 24-33/39 |
| 900 | 36" | 864.7 | 1050 | 656 | 1376 | 203 | 24-33 |
| 1000 | 40" | 965 | 1160 | 721 | 1521 | 216 | 24-36 |
| Valve tsim thiab tsim | Raws li GB / T12238 tus qauv | ||||||
| Valve flange loj | Raws li GB / T9113, GB / T17241.6 tus qauv | ||||||
| Cov qauv ntev ntawm lub valve | Raws li GB / T12221 tus qauv | ||||||
| Valve soj ntsuam thiab sim | Raws li GB / T13927 tus qauv | ||||||
Khoom nta:
• Lub teeb yuag thiab compact: Qhov hnyav ntawm tib lub caliber tsuas yog 1/6 ntawm lub rooj vag valve, thiab qhov chaw teeb tsa raug txo los ntawm 50%
• Bidirectional npuas- qib foob: EPDM/NBR/VITON/PTFE elastic valve lub rooj zaum, xoom leakage (ISO 5208 Rate A)
• Tsawg torque: Streamlined npauj npaim phaj + tus kheej- lub tes tsho lubricating, yooj yim tsav los ntawm phau ntawv, pneumatic, thiab hluav taws xob actuators
• Kev saib xyuas online: Lub cev valve tsis txuas mus rau hauv cov raj xa dej, thiab lub phaj npauj npaim tuaj yeem rub tawm los ntawm loosening plaub flange bolts rau disassembly thiab sib dhos.
• Multifunctional: Nws tuaj yeem qhib tag nrho thiab kaw, thiab tseem tuaj yeem raug kaw kom raug nyob rau hauv thaj tsam ntawm 15℃~ 75 degree
Khoom siv:
• Cov dej hauv nroog: dej nyoos, dej huv, dej phwj tuaj, twj tso kua mis cais tawm
• HVAC: lub hauv paus cua txias, cheeb tsam cua sov, dej txias ncig
• Khoom noj khoom haus thiab tshuaj: CIP/SIP tu system, FDA 3A sanitation qib xaiv tau
• Tshuaj thiab petrochemical: qaug zog acid thiab alkali, hnyav, hmoov, pneumatic conveying pipeline
• Lub zog fais fab: cua txias ntauwd, condensate, hluav taws kub sprinkler system
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 1000 units hauv ib hlis, Pneumatic Npauj Npaim Valve
Packing & Delivery
Packing nthuav dav:
1) Yog tias muaj ntau ntau, rooj plaub plywood
2) Yog tias muaj me me, Carton lossis Plywood pallet
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
|
Quantity (Units) |
1-50 |
51-1000 |
＞1001 |
|
Est. Sijhawm (hnub) |
Cov khoom hauv Tshuag |
30 |
Yuav tsum sib tham |
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Zoo heev tom qab- kev pabcuam
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
Kev xaiv thiab xaj cov lus qhia:
Thaum qhov nruab nrab muaj cov khoom loj dua lossis sib npaug li 2 hli, thov xaiv lub foob tawv tawv lossis ob chav eccentric qauv.
Thaum qhov hluav taws kub xav tau kev nyab xeeb, graphite muab tub lim + SS316L splint tuaj yeem xaiv.
Muab hluav taws xob 24 V / 220 V, pneumatic ob chav ua yeeb yam / caij nplooj ntoos hlav pib dua, txwv hloov, positioner tag nrho.
Yog tias koj xav tau Wafer Npauj Npaim Valve CAD cov duab kos, 3D qauv, lossis cov kev daws teeb meem, thov hu rau: WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD.
Hais txog peb:

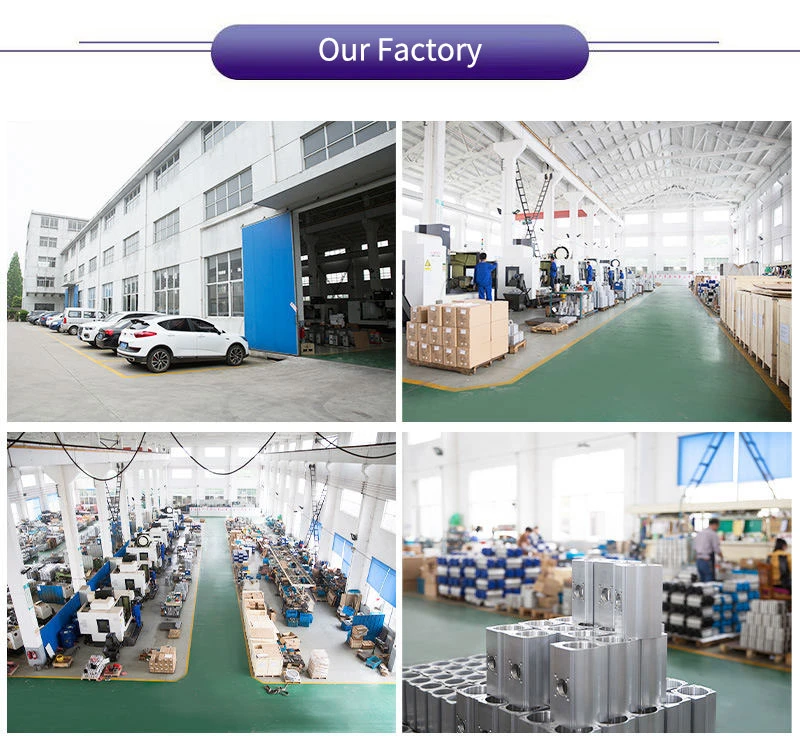

Wuxi Xinming Auto- tswj Valves Co., Ltd. tshwj xeeb hauv kev tsim ISO9001-certified XM series pneumatic actuators thiab tsis siv neeg tswj li qub, ua raws li ISO5211/DIN3337/VDI/VDE-3845/NAMUR cov qauv. Nrog rau R & D muaj peev xwm ua tau zoo thiab cov chaw tsim khoom, peb cov khoom ua haujlwm muaj ntau yam kev lag luam xws li roj & roj, tshuaj, thiab cov chaw tsim hluav taws xob, embodying peb txoj kev mob siab rau "Technology First, Quality Excellence" los ntawm cov kev daws teeb meem tshiab thiab kev ua tau zoo.
