Khoom Taw Qhia

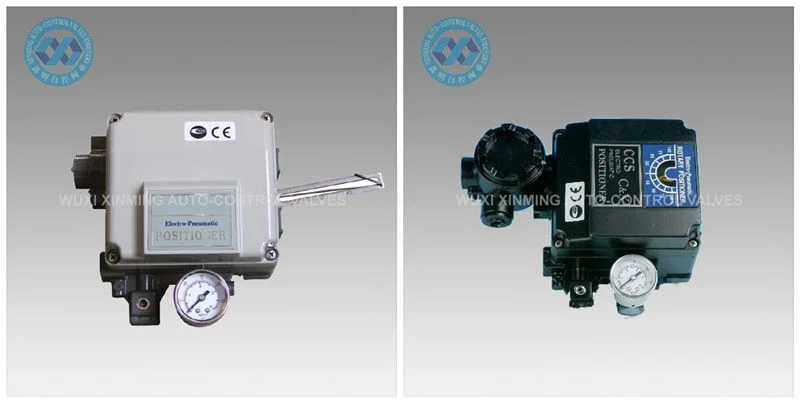

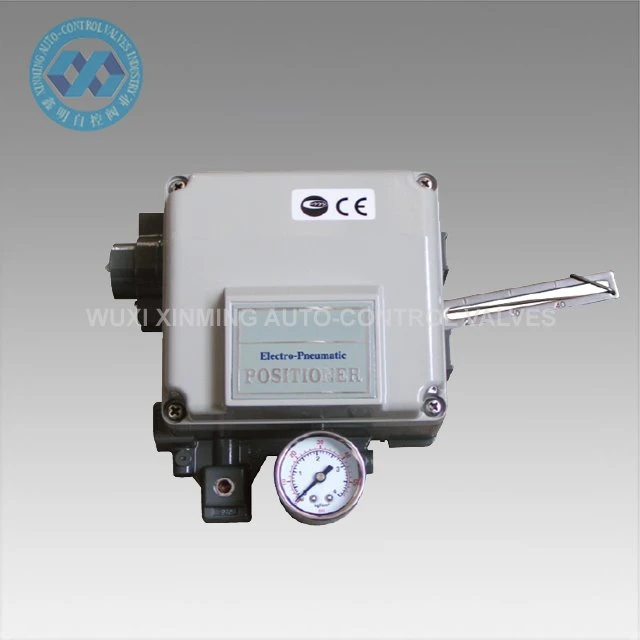

YT1000 Valve Positioner yog siv nrog pneumatic tswj valve los tsim lub voj kaw kaw. Lub teeb liab DC tam sim no tau muab los ntawm kev tswj hwm tau hloov mus rau hauv lub teeb liab roj uas tsav lub valve tswj kev ua haujlwm ntawm lub regulating valve. Nyob rau tib lub sijhawm, kev tawm tswv yim yog ua raws li qhov qhib qib ntawm kev tswj lub valve, kom lub valve txoj hauj lwm tuaj yeem raug muab tso rau raws li kev tswj cov teeb liab tawm los ntawm lub cev. Lub tshuab hluav taws xob tuaj yeem siv tau rau ib leeg ua yeeb yam (lub caij nplooj ntoo hlav-rov qab hom) thiab ob-ua yeeb yam pneumaticactuators.
Kev teeb tsa hluav taws xob-pneumatic valve positioners: Cov koob no yog hom kev hloov kho thiab yog tsim los rau ob leeg ua yeeb yam lossis ib leeg ua yeeb yam nrog cov tswv yim thiab tso tawm 4-20 mA cov lus qhia tawm tswv yim. Lub pneumatic actuator yog nruab nrog lub tshuab hluav taws xob-pneumatic valve positioner thiab bracket, txuas cov lus tawm tswv yim los ntawm lub pinion NAMUR qhov, uas yog fastened los ntawm 4 bolts. Lub raj xa hluav taws xob tuaj yeem txuas nrog kom paub txog kev hloov kho.
Technical Parameters
1000 series Hluav taws xob-pneumatic Valve Positioner yog siv nrog lub pneumatic tswj valve los tsim ib lub voj kaw controlloop.Lub DC tam sim no teeb liab muab los ntawm cov tswj system yog hloov dua siab tshiab rau hauv ib tug roj teeb liab uas tsav lub regulating valve los tswj qhov kev txiav txim ntawm lub regulating valve. , kev tawm tswv yim yog ua raws li qhov qhib degree ntawm lub regulating valve, kom lub valve txoj hauj lwm yuav becorrectly positioned raws li tus tswj lub teeb liab outputted los ntawm lub system.Lub fais positioner yuav siv tau rau ib leeg-acting (lub caij nplooj ntoos hlav-rov qab hom) thiab ob-acting Pneumaticactuators.Installation of Electric-pneumatic valve positioners: Thisseries yog kho hom thiab yog tsim los rau ob-actingor ib leeg-actuators nrog cov tswv yim thiab tso zis 4-20 mAfeedback signals.The pneumatic actuator yog nruab nrog hluav taws xob-pneumatic valve positioner thiab bracket , txuas cov lus tawm tswv yim los ntawm lub pinion NAMUR qhov, uas yog fastened los ntawm 4 bolts.Lub raj xa dej tuaj yeem txuas tau kom paub txog kev hloov kho.

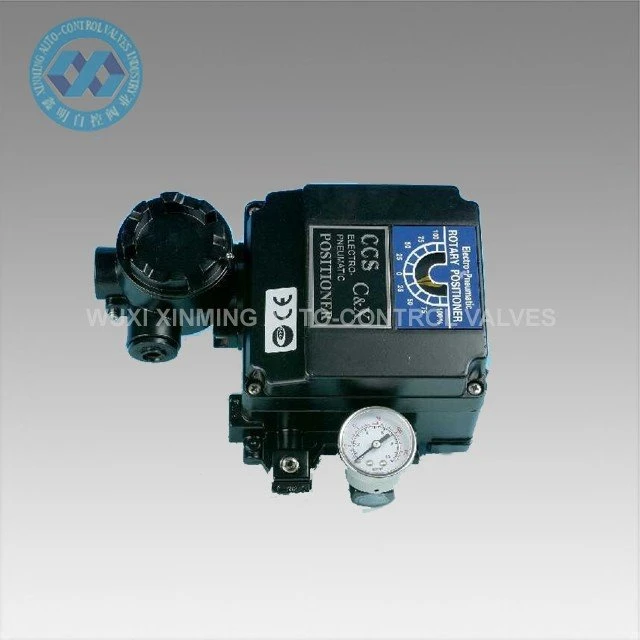

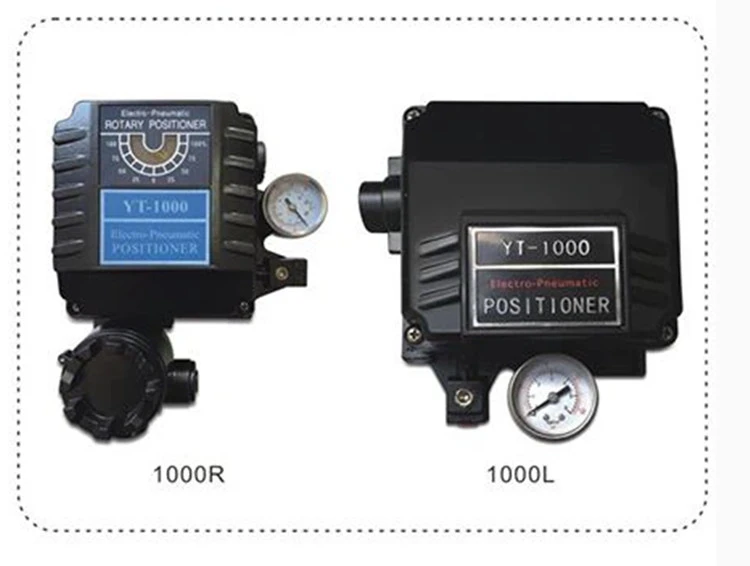

Yam khoom | Qauv | 1000L (Linear Hom) | 1000R (Rotary Hom) |
Ib leeg ua yeeb yam Ob chav ua yeeb yam | |||
Input signal, kuj | 4 ~ 20 Peb 250Ω±15Ω | ||
Gas muab siab | 1.4 ~ 7 kgf / cm 2²（20-100 psi） | ||
Mob stroke | 10 ~ 105 hli | 0-90degree | |
Hluav taws xob Interface | PT (NPT) 1/2 | ||
Qib-pov thawj | EXD II BT4/Exd II BT6/Exia II CT6 | ||
Qib tiv thaiv | IP66 | ||
Ambient kub | -20degree~70degreeRov ua dua ±0.5% | ||
Tawm | ±1%F.S ±2% F.S ±2% F.S | ||
Hysteresis | ±1%F.S rhiab heev±0.2%F.S ±0.5% F.S | ||
Cua zog noj | 3LPM(sup=1.4kgf/cm²,20 psi) | ||
Ntws | 80LPM(sup=1.4kgf/cm²,20 psi) | ||
Khoom siv | Cast aluminium | ||
Qhov hnyav | 2.7KG ~ 2.8KG | ||
Qauv | 1000L/R |
Hom | L: Hom kab, R: hom teb |
Daim ntawv ntawm kev ua | S: Ib qho kev txiav txim, D: Ob chav ua haujlwm |
Daim ntawv pov thawj tawg | M: tawg-pov thawj Exd II BT4 Exd II BT6, I: Intrinsically nyab xeeb Exia II CT6,n :zoo |
Cov lus teb lever | R1,M6*40L;R2,M8*40L;R,NAMUR; 1,10 ~ 40mm; 2,40 ~ 70 hli |
Orifice | 90,90~180,180 |
Hom interface | PT,NPT |
Kev xaiv | 0,+ PTM, +L/S |
