Khoom Taw Qhia
Aluminium Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau.
Tsim nta
1. Lub cev valve thiab piston yog nyuaj anodized.
2. Tshwj tsis yog qhov taw qhia ntsia hlau yog yas, tag nrho lwm cov ntsia hlau yog SS304.
3. Loj thiab me me tso zis torque yog xaiv tau.
Cov ntsiab lus ceev

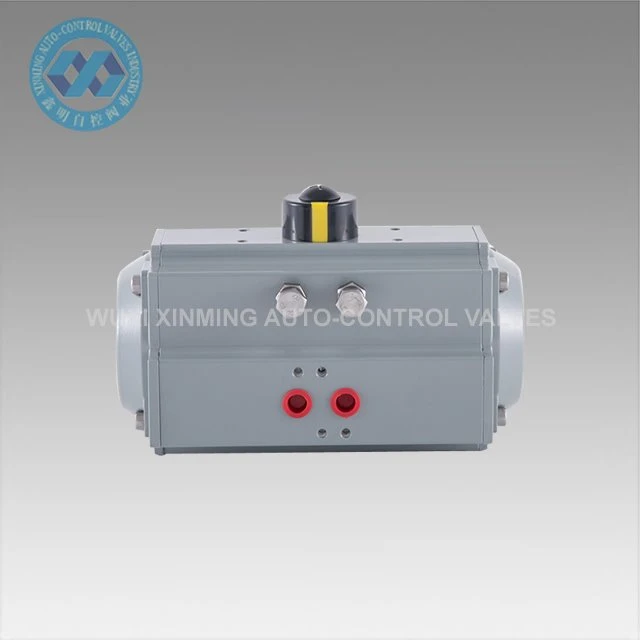

Khoom npe: Aluminium Pneumatic Actuator
Lub npe: XM, thiab OEM kuj txais
Actuator loj: 32mm -400mm
Lub kaum sab xis: 0 degree ~ 90 degree (± 5 degree)
Ua Haujlwm Kub Kub: -20 degree ~ ntxiv rau 80 degree (tus qauv)
-40 degree ~ ntxiv rau 80 degree (tsawg kub)
-15 degree ~ 150 degree (siab kub)
Huab cua siab: {{0}}.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI / VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Structure: khib thiab pinion, dual khib pistons
Actuator lub cev nto kev kho mob: nyuaj anodized nrog tag nrho Epoxy txheej (tawm tsam me me corrosive)
End Cap Xim: dub grey, dub, tsaus xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016
Technical Parameter
XM ALUMINIUM PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Input cua siab (unit: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Spare Parts thiab Khoom siv
Daim duab Dimension
Tuam txhab Taw Qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb tsuas yog tsim Pneumatic Actuator, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic / Hluav Taws Xob Tswj Valve, thiab lwm yam.
Peb lub tuam txhab muaj cov cuab yeej ua haujlwm siab heev thiab cov cuab yeej zoo tshaj plaws. Peb cov cuab yeej ua haujlwm suav nrog lathes, milling tshuab, tho txawv tshuab, planer, drilling tshuab, CNC lathes, CNC machining chaw thiab lwm yam khoom siv. Muaj tag nrho 30 teeb, ntawm cov uas muaj 5 teev imported ntsug tshuab chaw thiab ob peb teev advanced CNC lathes.
Muaj peev xwm muab khoom:10000 units ib hlis Pneumatic Rotary Actuator
Packing & Delivery
Packing nthuav dav: 1). cais thawv nrog npuas packing hauv
2). plywood rooj plaub rau kev xa khoom hiav txwv
3). Plywood pallet rau huab cua xa khoom
Chaw nres nkoj ntawm kev tawm mus:Shanghai, Suav
Lub Sijhawm Lead:
Quantity (Units) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
Est. Sijhawm (hnub) | Cov khoom hauv Tshuag | 7 | 20 | Yuav tsum sib tham |
