Khoom Taw Qhia

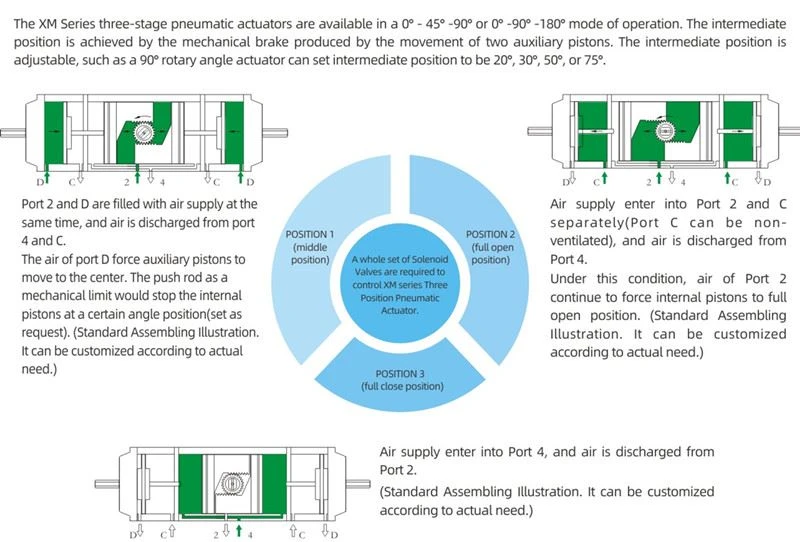

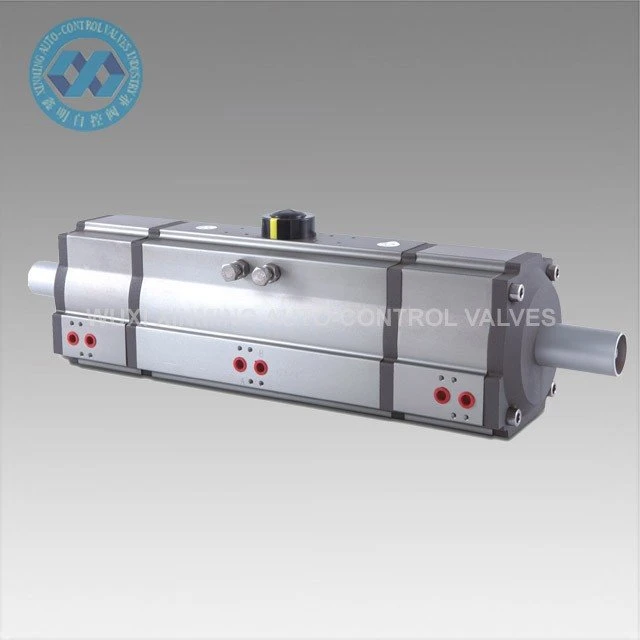

XM Series peb-theem pneumatic actuators muaj nyob rau hauv 0 degree - 45 degree -90 degree lossis 0 degree -90 degree -180 degree hom kev ua haujlwm. Txoj haujlwm nruab nrab yog ua tiav los ntawm cov neeg kho tshuab nres ua los ntawm kev txav ntawm ob lub piston pab. Qhov nruab nrab txoj hauj lwm yog adjustable, xws li 90 degree teb lub kaum sab xis actuator tuaj yeem teeb tsa qhov nruab nrab ntawm 20 degree, 30 degree, 50 degree, lossis 75 degree.
Cov ntsiab lus ceev

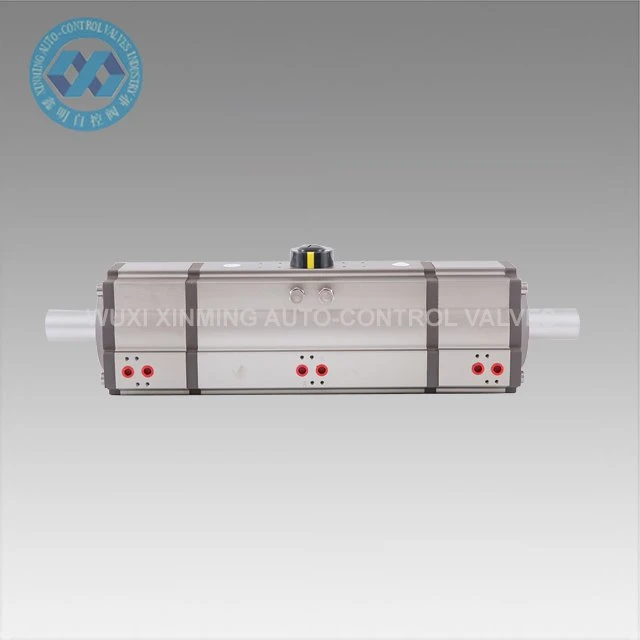

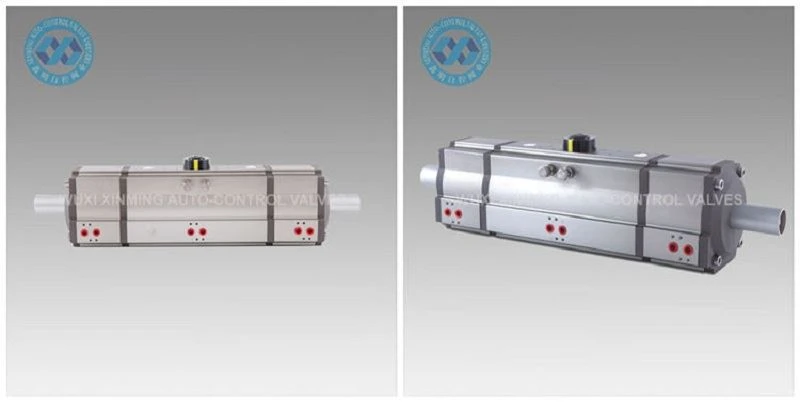

Khoom npe: 3 Txoj Haujlwm Pneumatic Actuator
Lub npe: XM, thiab OEM kuj txais
Actuator loj: 32mm -400mm

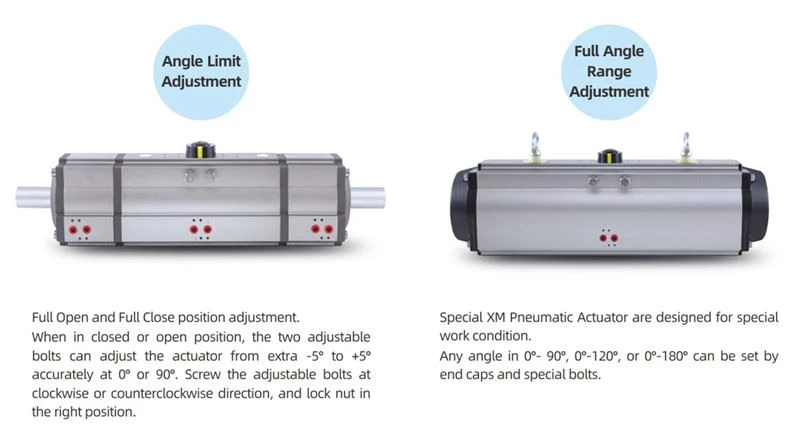

Lub kaum sab xis: 0 degree ~ 180 degree (± 5 degree)
Ua Haujlwm Kub Kub: -20 degree ~ ntxiv rau 80 degree (tus qauv)
-40 degree ~ ntxiv rau 80 degree (tsawg kub)
-15 degree ~ 150 degree (siab kub)
Huab cua siab: {{0}}.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI / VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Structure: khib thiab pinion, dual khib pistons
Actuator lub cev nto kho: nyuaj anodized, los yog dip oxidation
End Cap Xim: dub grey, dub, tsaus xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016
Qhov zoo ntawm Pneumatic Actuators
1. Txais cov teeb liab tsis tu ncua thiab tso zis tawm tawm (tom qab ntxiv cov khoom siv hluav taws xob / roj hloov pauv, nws tseem tuaj yeem lees txais cov teeb liab hluav taws xob tas li), thiab qee qhov tuaj yeem tso tawm qhov kev hloov pauv thaum nruab nrog lub caj npab rocker.
2. Nws muaj qhov zoo thiab qhov tsis zoo.
3. Kev txav ceev yog loj, tab sis qhov ceev yuav qeeb qeeb thaum lub load nce.
4. Lub zog tso zis muaj feem xyuam rau kev ua haujlwm siab.
5. Muaj kev ntseeg siab, tab sis lub valve tsis tuaj yeem khaws cia tom qab qhov chaw siv roj raug cuam tshuam (nws tuaj yeem khaws cia tom qab ntxiv lub valve).
6. Nws tsis yooj yim kom paub txog ntu kev tswj hwm thiab kev tswj hwm txoj haujlwm.
7. Kev saib xyuas yooj yim thiab hloov tau zoo rau ib puag ncig.
8. Lub zog tso zis yog loj.
9, nrog tawg-pov thawj muaj nuj nqi.
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 10000 units ib hlis Pneumatic Rotary Actuator
Packing & Delivery
Packing nthuav dav: 1). cais thawv nrog npuas packing hauv
2). plywood rooj plaub rau kev xa khoom hiav txwv
3). Plywood pallet rau huab cua xa khoom
Qhov zoo
1) Tag nrho cov khoom tseem ceeb yuav raug kho nrog nyuaj-anodization los txhim kho lub zog mus rau qib zoo kom ntseeg tau tias kev ua tau zoo thiab lub neej ua haujlwm.
2) Tag nrho cov txheej txheem yog ib zaug-tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.
Technical Parameter
XM 3 POSITION PNEUMATIC ACTUATOR tawm TORQUE TABLE
Qauv | Input cua siab (unit: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32-3S | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40-3S | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52-3S | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63-3S | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75-3S | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83-3S | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92-3S | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105-3S | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125-3S | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140-3S | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160-3S | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190-3S | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210-3S | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240-3S | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270-3S | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300-3S | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350-3S | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400-3S | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Kev pab cuam tom qab muag zoo heev
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
