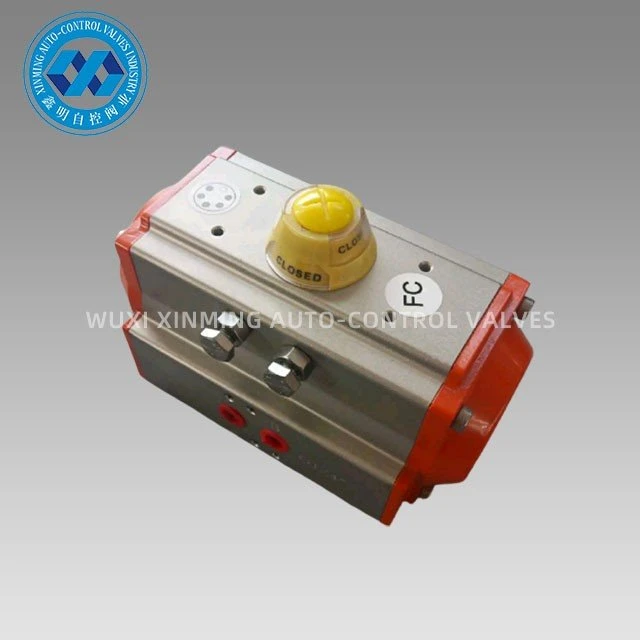

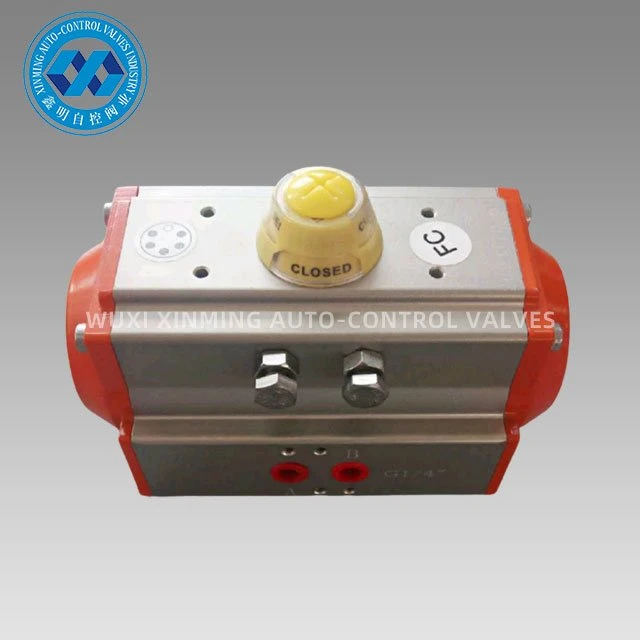

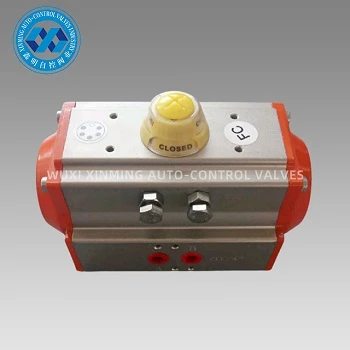

AT ob chav Acting Pneumatic Rotary Actuator tau kawm, tsim thiab tsim los ntawm kev siv cov thev naus laus zis tshiab, cov ntaub ntawv tshiab, cov txheej txheem tshiab thiab cov tswv yim tshiab hauv tsev thiab txawv teb chaws, muaj cov yam ntxwv hauv qab no:
1.Ua raws li kev cai thoob ntiaj teb: IS05211, DIN3337 thiab VDI/VDE-3845, NAMUR cov qauv.
2.To extruded high-strength aluminium lub tog raj kheej, lub puab nto yog finely hauv av thiab nyuaj anodized, nrog ntev kev pab cuam lub neej, tsis tshua muaj kev sib txhuam coefficient thiab ceev ceev.
3.Qhov zoo nkauj compact niaj hnub zoo thiab ntau yam specification ua rau kev xaiv ntau yig.
4.Txhua qhov chaw ua haujlwm tau txais cov kabmob zoo nrog kev sib txhuam qis, lub neej ntev thiab tsis muaj suab nrov.
5.Ob txoj kev ywj pheej kho mob stroke raug teeb tsa los kho ntxiv ± 5 degree ntawm qhov qhib qhib lossis tag nrho kaw txoj haujlwm yooj yim
6.Actuators nrog tib tus qauv sab nraud muaj nyob rau hauv ob chav ua yeeb yam thiab ib leeg ua yeeb yam (caij nplooj ntoos hlav-rov qab) versions. Ib leeg-ua yeeb yam version muaj ib txwm-kaw thiab ib txwm-qhib hom
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 10000 units ib hlis Pneumatic Rotary Actuator
Packing & Delivery
Packing nthuav dav: 1). cais thawv nrog npuas ntim hauv
2) plywood rooj plaub rau kev xa khoom hiav txwv
3) Plywood pallet rau huab cua xa khoom
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
|
Quantity (Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Sijhawm (hnub) |
Cov khoom hauv Tshuag |
7 |
20 |
Yuav tsum sib tham |
Khoom Taw Qhia
XM series AT Pneumatic Actuators yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau. Precision tuag-casting aluminium alloy ob-rack pistons nrog nyuaj oxidation kev kho mob txhim kho lub kaum sab xis qhov tseeb thiab lub luag haujlwm lub neej. Lub cev actuator nrog nyuaj-oxidation tuaj yeem zam qhov khawb tau zoo.
Qhov zoo
1) Tag nrho cov khoom tseem ceeb yuav raug kho nrog nyuaj-anodization los txhim kho lub zog mus rau qib zoo kom ntseeg tau tias kev ua tau zoo thiab lub neej ua haujlwm.
2) Tag nrho cov txheej txheem yog ib zaug-tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.
Daim ntawv thov
Pneumatic Rotary Actuators tuaj yeem tsim rau ntau yam flammable, corrosive, plua plav, muaj zog magnetic teb, hluav taws xob, kev co corrosive ib puag ncig sab hauv tsev lossis sab nraum zoov, uas tau siv dav hauv kev lag luam hluav taws xob, petrochemical, metallurgy, roj av, roj, hauv nroog, kev tsim kho, dej ntws, tshuaj lom neeg kev lag luam, roj refining, mining, fais fab nroj tsuag, metallurgy, architecture, tshuaj, zaub mov, roj, kev tshawb fawb, thiab lwm yam.
Technical Parameter
XM DOUBLE ACTING ACTUATOR OUTPUT TORQUE TABLE
| Qauv |
Input cua siab (unit: bar) | |||||
| 3 | 4 | 5 | 6 | 7 | 8 | |
| Cua siab tso zis torque (Nm) | ||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
Tuam txhab Taw Qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb tsuas yog tsim Pneumatic Actuator, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic / Hluav Taws Xob Tswj Valve, thiab lwm yam.

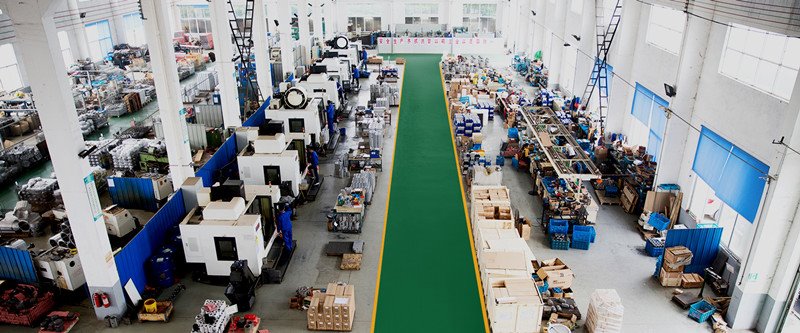

Peb lub tuam txhab muaj cov cuab yeej ua haujlwm siab heev thiab cov cuab yeej zoo tshaj plaws. Peb cov cuab yeej ua haujlwm suav nrog lathes, milling tshuab, tho txawv tshuab, planer, drilling tshuab, CNC lathes, CNC machining chaw thiab lwm yam khoom siv. Muaj tag nrho 30 teeb, ntawm cov uas muaj 5 teev imported ntsug tshuab chaw thiab ob peb teev advanced CNC lathes.
Peb Qhov Kev Pabcuam
1) 7 x 24 teev hotline
2) Kev tswj xyuas nruj
3) Zoo zoo ntawm tus nqi zoo
4) Kev pab cuam tom qab muag zoo heev
5) Kev pab cuam hauv online
6) ast lub sijhawm khoom xa tuaj
