Hauv kev lag luam automation systems, ntau lub tuam txhab feem ntau ntsib teeb meem hauv kev tswj valve, xws li cov lus teb qeeb qeeb, tsis txaus torque, qib qis automation, thiab kev tu tsis tu ncua. Tshwj xeeb tshaj yog nyob rau hauv pipeline systems yuav tsum tau nquag valve qhib thiab kaw, tsis ruaj tsis khov actuator kev ua tau zoo tsis tsuas yog cuam tshuam rau ntau lawm efficiency tab sis kuj yuav ua rau muaj kev nyab xeeb.
Lub Angle Travel Pneumatic Actuator yog tsim los daws cov teeb meem no, muab kev ruaj ntseg, ceev, thiab txhim khu kev qha automated tswj rau ntau yam 90℃rotary li qub.
Lub Angle Travel Pneumatic Actuator yog tus actuator uas tau tsav los ntawm huab cua compressed. Los ntawm ib qho kev sib kis hauv lub cev, nws hloov lub zog pneumatic mus rau hauv lub voj voog tig, yog li ua tiav lub valve qhib thiab kaw.
Qhov no actuator feem ntau yog siv los tswj angular stroke li qub xws li pob li qub, npauj npaim li qub, thiab ntsaws li qub. Nws nta cov qauv kev cog lus, kev ua haujlwm ruaj khov, thiab cov lus teb ceev ceev, ua rau nws yog ib qho tseem ceeb tswj cov cuab yeej hauv kev lag luam automated pipeline systems.
XM series Angle Travel Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau. Precision tuag-casting aluminium alloy ob- khib pistons nrog nyuaj oxidation kho txhim kho lub kaum sab xis ntawm qhov raug thiab lub luag haujlwm lub neej. Lub cev actuator nrog nyuaj -oxidation tuaj yeem zam qhov khawb tau zoo.
Khoom Specifications
|
Khoom npe |
Angle Travel Pneumatic Actuator |
|
Khoom siv |
Stainless hlau / Aluminium alloy |
|
Daim ntawv pov thawj |
ISO9001: 2015, CE, ATEX, SIL3 |
|
Muaj nuj nqi |
ON / OFF |
|
Daim ntawv thov |
Automation Pob Valve, Automation Npauj Npaim Valve |
|
Qhov kub thiab txias |
-40 ~ 150 ° C |
|
Lub sij hawm xa tuaj |
hauv 7 hnub ib txwm. |
|
Chaw nres nkoj shipping |
Shanghai, Ningbo, thiab lwm yam. |
|
Pob nthuav dav |
Txhua Carton sab hauv, rooj plaub plywood ( hiav txwv xa khoom) lossis pallet (air shipment) sab nraum |
|
Lub kaum sab xis |
0 ~ 90℃/ 0 ~ 120degree / 0 ~ 180degree |
|
Qauv |
khib thiab pinion rotary actuator |
|
Kev kho saum npoo |
nyuaj anodization |
|
Ua haujlwm kub |
Qhov kub thiab txias: -20 ° ~ 80 ° F (-4 ° F ~ 176 ° F) |
|
Kev sib txuas |
NAMUR, ISO5211 thiab DIN3337 |
|
Cap Xim |
txhawb customized |
|
Hom |
ob leeg ua yeeb yam thiab ib leeg ua yeeb yam |
|
Qhov taw qhia |
Txhawb customized |
|
Nruab Accessories |
Limit Switch Box / Solenoid Valve / Valve Positioner, thiab lwm yam. |
|
valve Accessories |
Phau ntawv Override Gearbox |
|
Piston |
Hard Anodizing |
|
Nruab nrab |
Dej, Roj, Huab cua lossis corrosive ib puag ncig |
|
Qauv |
GT32/AT40/AT52/AT63/AT75/AT83/AT92/AT105/AT125/AT140/AT160/AT190 TSI |
Muaj peev xwm muab khoom
Peb muaj Tshuag txaus ntawm cov qauv qauv thiab tuaj yeem xa lawv sai.
Txhawb OEM / ODM customization, nrog kev ua tiav sai tshaj plaws ntawm me me -batch customized ntau lawm hauv 7 hnub.
Packing & Delivery
Packing nthuav dav:
1). cais thawv nrog npuas packing hauv
2) plywood rooj plaub rau kev xa khoom hiav txwv
3) Plywood pallet rau huab cua xa khoom
Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav
Lub Sijhawm Lead:
|
Quantity (Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Sijhawm (hnub) |
Cov khoom hauv Tshuag |
7 |
20 |
Yuav tsum sib tham |
Qhov zoo
Tag nrho cov txheej txheem yog ib qho -lub sijhawm- tsim los ntawm CNC kom paub meej cov txheej txheem raug thiab lub luag haujlwm lub neej.

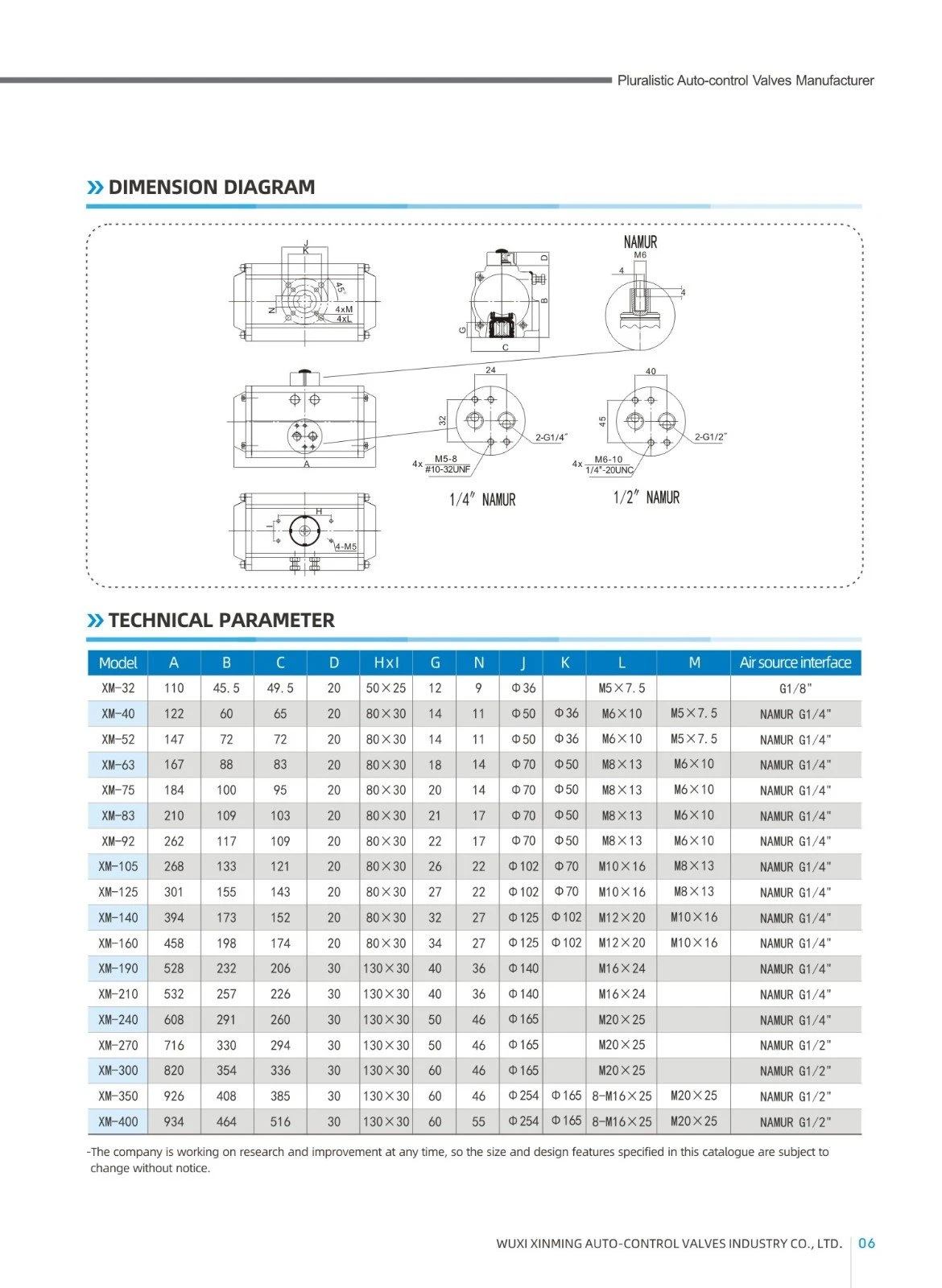

Angle Travel Pneumatic Actuator Dimensions
XM DOUBLE ACTING ACTUATOR OUTPUT TORQUE TABLE
|
Qauv |
Input cua siab (unit: bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Cua siab tso zis torque (Nm) |
||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
