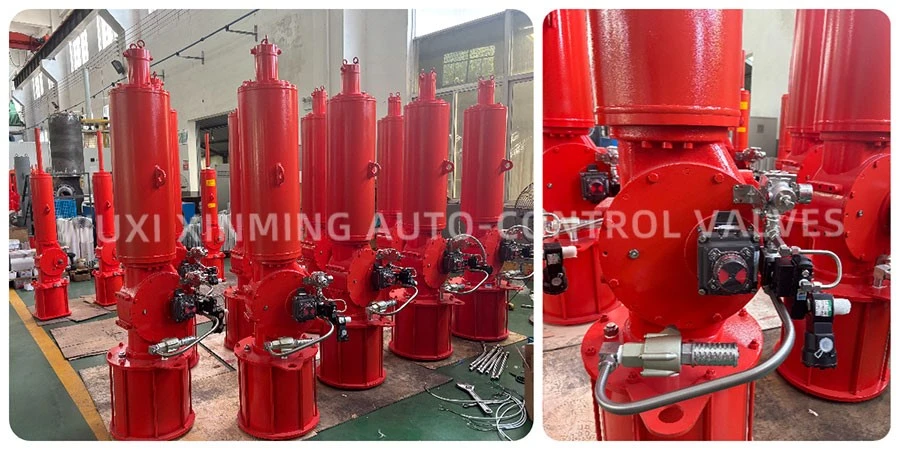

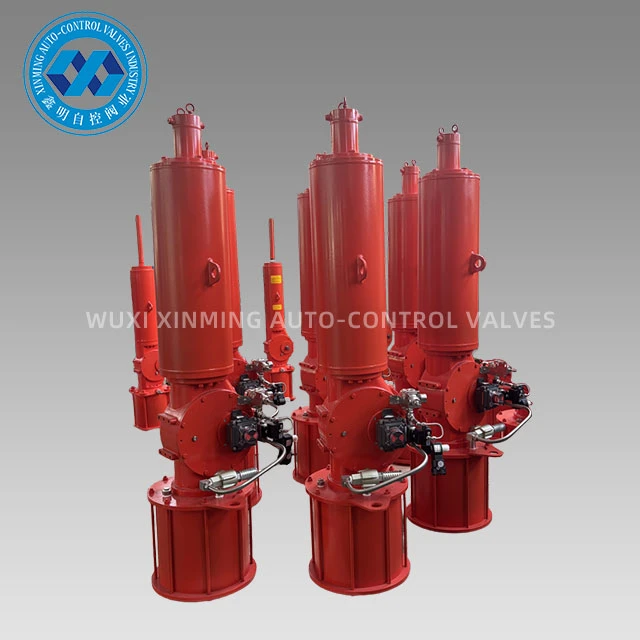

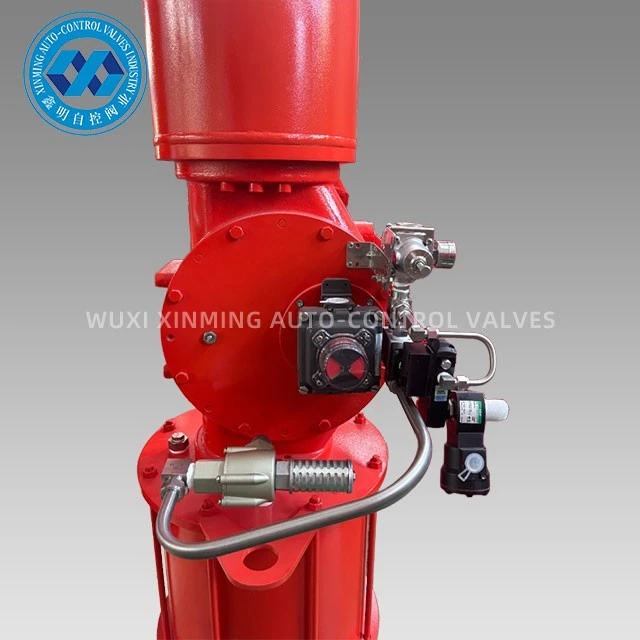

Lub XM Scotch Yoke Ib Leeg Ua Pneumatic Actuator nrog hydraulic phau ntawv hla dhau yog qhov siab -kev ua haujlwm actuator tsim los rau kev tswj xyuas qhov xav tau hauv kev lag luam. Siv lub scotch yoke mechanism, nws muab siab torque tso zis nyob rau hauv ib tug compact tsim, zoo tagnrho rau lub quarter- tig li qub. Kev teeb tsa ib zaug - ua haujlwm (lub caij nplooj ntoo hlav rov qab) ua kom muaj kev nyab xeeb tsis ua haujlwm - kaw lossis tsis ua haujlwm - qhib kev ua haujlwm raws li koj qhov kev xav tau.
Khoom nta:
- High torque tso zis nrog compact loj
- Hydraulic phau ntawv override rau thaum muaj xwm ceev los yog tu cov hauj lwm
- Rugged aluminium alloy lub cev nrog epoxy-coated nto
- Xaiv cov ntaub ntawv thiab txheej txheej rau corrosive ib puag ncig
- ISO 5211 mounting interface kom yooj yim valve kev koom ua ke
- Customizable stroke lub sij hawm, torque, thiab caij nplooj ntoos hlav ntau yam
Technical Specifications:
| Khoom npe | Scotch Yoke Ib Leeg Ua Pneumatic Actuator nrog Hydraulic Phau Ntawv |
| Torque Range | 50Nm - 10,000Nm |
| Kev ntsuas siab | 2.5-8 hli |
| Qhov kub thiab txias | -20℃rau +80 degree, xaiv tau qis / siab temp versions |
| Tswj | NAMUR interface, solenoid -npaj |
| Kev tiv thaiv | IP65 / IP67 xaiv tau, corrosion- tiv taus nto kho |
| Cov ntawv pov thawj | ISO 9001, CE, SIL |
| Video Hoobkas tshuaj xyuas | Muaj |
| Mechanical test report | Muaj |
| Hom | XM |
| OEM | muaj |
| Peb Qhov Kev Pabcuam |
|
| Peb Qhov Zoo |
|
Khoom siv:
Qhov no pneumatic actuator yog dav siv nyob rau hauv:
* Roj & Roj pipelines
* Cov txheej txheem kho dej
* Kev tsim hluav taws xob
* Kev ua tshuaj lom neeg
* Marine thiab offshore industries
Scotch Yoke Ib Leeg Ua Haujlwm Pneumatic Actuator nrog hydraulic phau ntawv tswj xyuas kom ntseeg tau tias lub valve automation nyob rau hauv ob qho tib si niaj hnub thiab xwm txheej ceev.

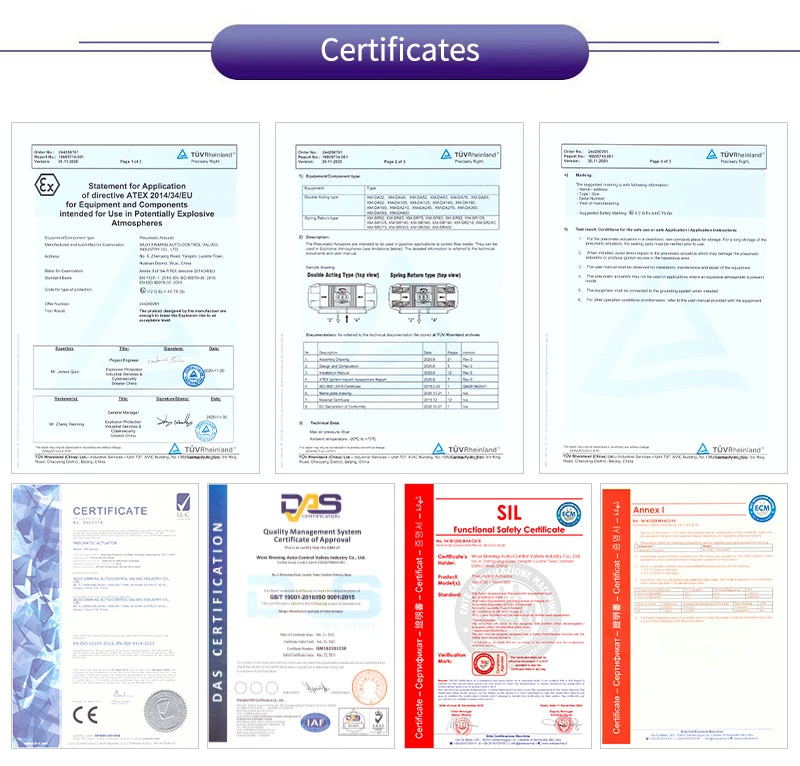

Quality Control & Certifications:

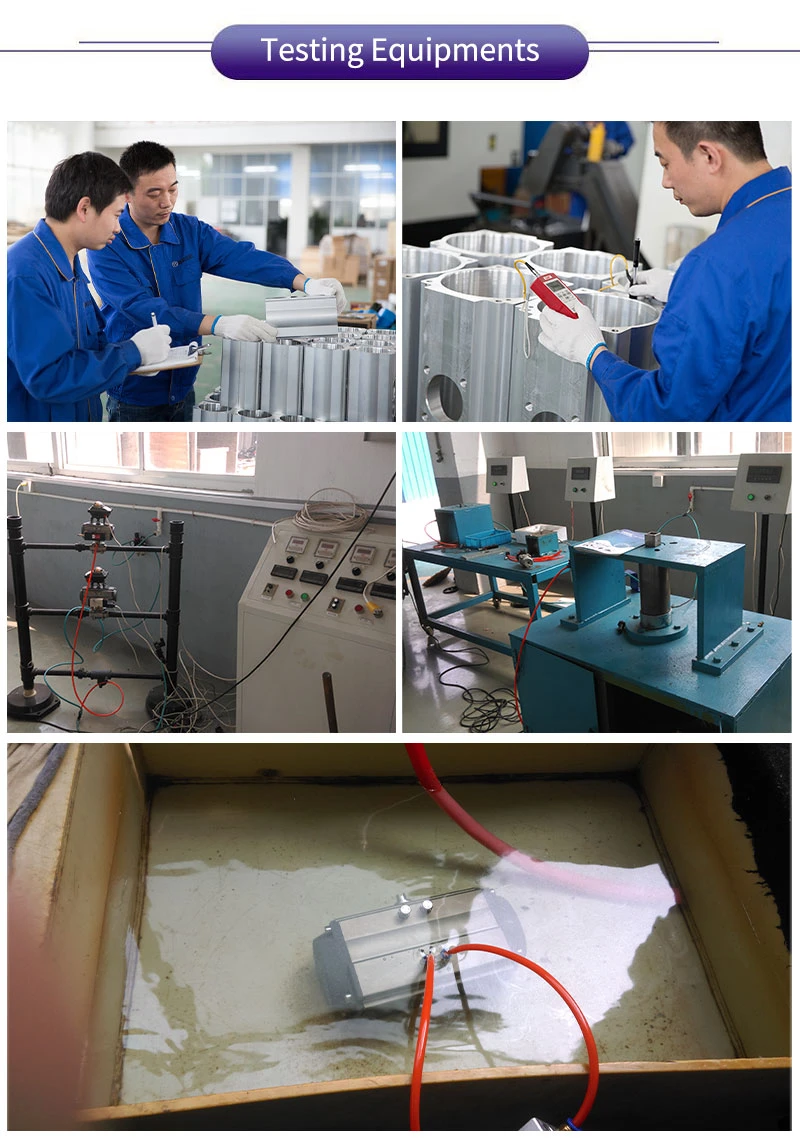

Raws li cov chaw tsim khoom tau lees paub ISO 9001, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. Ua kom txhua tus XM actuator tau dhau los ntawm kev sim lub Hoobkas nruj heev- lub zog tso tawm, huab cua tawm, thiab kev ua haujlwm ntawm phau ntawv hla dhau kev ua haujlwm tau lees paub tag nrho. Thib peb-kev tshuaj xyuas tog (xws li SGS) muaj nyob rau ntawm kev thov. Tag nrho cov khoom ua raws li cov qauv thoob ntiaj teb xws li CE, ATEX, thiab SIL, qhov twg siv tau.

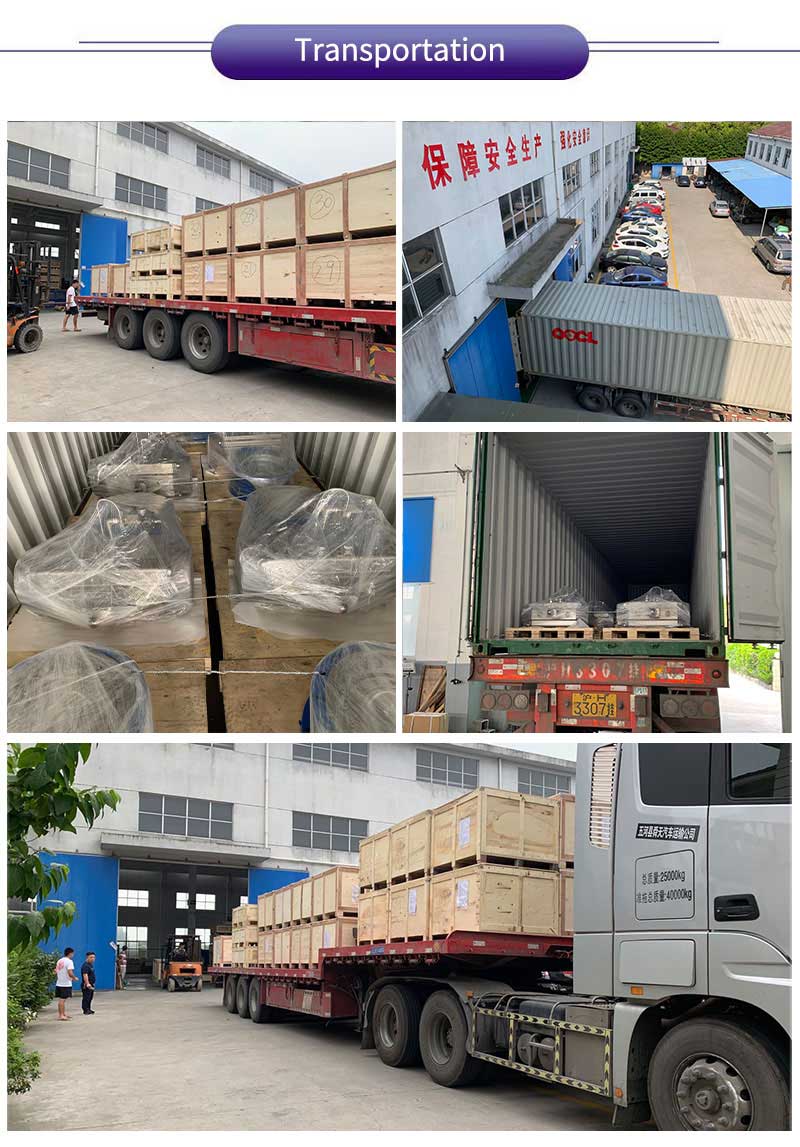

Ntim & Xa khoom:
Txhua tus actuator tau ntim rau hauv cov npuas dej kom ruaj ntseg -cov thawv ntawv los yog cov ntaub ntawv ntoo kom tsis txhob muaj kev puas tsuaj thaum caij tsheb npav. Kev txiav txim ntau yog palletized thiab tiv thaiv nrog stretch zaj duab xis. Peb muab kev xa khoom yooj yim ntawm hiav txwv, huab cua, lossis nthuav qhia - lub sijhawm ua haujlwm feem ntau yog 7-15 hnub, nyob ntawm kev hloov kho.
Tom qab -Kev Pabcuam Muag:
Peb muab kev txhawb nqa tag nrho, kev taw qhia kev teeb tsa, thiab cov ntawv qhia ua haujlwm nrog txhua qhov khoom xa tuaj. Peb pab neeg muaj kev pab online thiab cov khoom seem. Lub sijhawm lav yog 12-18 lub hlis nrog kev xaiv ntxiv.
FAQ
Q1: Kuv puas tuaj yeem siv XM pneumatic actuator hauv siab -corrosion ib puag ncig?
Yog lawm, xaiv txheej txheej thiab stainless hlau versions muaj los tiv thaiv cov mob hnyav.
Q2: Yuav ua li cas yog tias muaj huab cua tsis ua haujlwm?
Ua ib qho - actuator actuator, lub caij nplooj ntoos hlav rov qab los xyuas kom meej tias nws yuav ua tsis tau zoo -kaw lossis tsis ua haujlwm- qhib, nyob ntawm qhov teeb tsa.
Q3: Puas yog phau ntawv hydraulic override ua -hauv lossis xaiv tau?
Nws yog tsim los ntawm - rau cov qauv no, tso cai rau kev siv phau ntawv thaum lub sij hawm tu lossis lub zog poob.
Q4: Kuv puas tuaj yeem tau txais ib qho kev hloov kho torque lossis kev teeb tsa stroke?
Yog lawm, peb muab kev cai torque ntau thiab ncig lub kaum sab xis rau kev siv tshwj xeeb.
