Taw qhia:

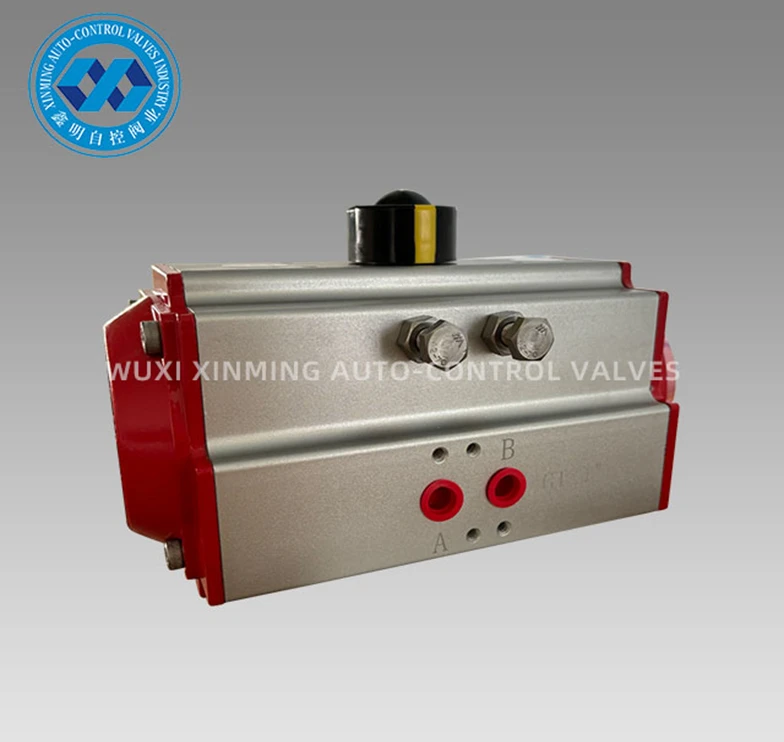

Lub kaum sab xis mus ncig pneumatic actuator yog qhov kev daws teeb meem tshiab thiab muaj txiaj ntsig zoo rau ntau daim ntawv thov kev lag luam. Qhov no actuator converts cua siab mus rau hauv rotary motion txav valve mechanisms nyob rau hauv pipelines, tso tsheb hlau luam, thiab lwm yam txheej txheem systems. Nws yog ntau yam cuab yeej uas tuaj yeem tswj tau ntau qhov ntev ntawm cov hlab ntsha tawg thiab qhov xav tau torque.
Lub kaum sab xis mus ncig pneumatic actuator yog tsim los nrog kev tswj xyuas meej, durability, thiab kev ntseeg siab hauv siab. Lub actuator kev tsim kho suav nrog cov ntaub ntawv zoo, xws li aluminium alloy, stainless hlau, thiab carbon steel, uas ua kom nws lub neej ntev thiab ua haujlwm rau corrosion. Tsis tas li ntawd, tus actuator qhov loj me, qhov hnyav, thiab kev teeb tsa yooj yim ua rau nws muaj kev xaiv zoo rau ntau txoj haujlwm.
Ib qho txiaj ntsig tseem ceeb ntawm lub kaum sab xis mus ncig pneumatic actuator yog nws cov lus teb ceev ceev. Tus actuator muaj qhov ua tau zoo heev, ua rau nws ua haujlwm tau zoo thaum muaj xwm txheej kaw thiab lwm yam kev siv tseem ceeb. Nws muaj peev xwm xa tau sai, meej txav ntawm txhua qhov nrawm ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam uas xav tau qhov tseeb thiab kev tswj xyuas nruj, xws li kev kho dej khib nyiab, petrochemicals, refineries, thiab tshuaj.
Lwm qhov zoo nkauj ntawm lub kaum sab xis mus ncig pneumatic actuator yog nws cov khoom siv ntau yam. Nws tuaj yeem tswj tau ntau yam strokes thiab torques, ua rau nws haum rau ntau daim ntawv thov kev lag luam. Tsis tas li ntawd, tus actuator qhov kev hloov kho tau nres thiab cam teeb tsa ua kom nws ua tau ntau yam haujlwm. Qhov kev hloov pauv no tso cai rau cov neeg ua haujlwm txiav cov actuator rau lawv cov kev xav tau tshwj xeeb, uas muab cov txheej txheem tswj tau zoo dua thiab kev ua haujlwm zoo.
Lub kaum sab xis mus ncig pneumatic actuator yog cov cuab yeej zoo tshaj plaws rau kev lag luam nrhiav kev ua haujlwm tau zoo, ruaj khov, thiab muaj ntau yam kev daws teeb meem rau lawv cov kev xav tau valve tswj automation. Nws cov kev tswj xyuas meej, kev ntseeg siab, thiab cov lus teb ceev ceev ua rau nws muaj txiaj ntsig ntxiv rau ntau cov txheej txheem, ua kom cov txheej txheem tswj tau zoo dua, kev ua tau zoo, thiab kev tsim khoom.
Technical Parameter
XM Ob chav ACTING PNEUMATIC ROTARY ACTUATOR OUTPU TORQUE TABLE
|
Qauv |
Input cua siab (unit: bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Cua siab tso zis torque (Nm) |
||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
