Hauv kev lag luam valve automation systems, ntau tus neeg siv feem ntau ntsib teeb meem xws li kev tswj lub valve tsis ruaj khov, tsis muaj kev ruaj ntseg ntawm cov khoom siv, tsis muaj peev xwm rov pib dua tom qab kev cuam tshuam cov pa roj, thiab kev tu tsis tu ncua. Tshwj xeeb tshaj yog nyob rau hauv cov roj av, tshuaj, thiab cov kav dej, kev cuam tshuam ntawm cov khoom siv roj tuaj yeem ua rau muaj kev nyab xeeb yog tias tus actuator tsis tuaj yeem rov qab mus rau nws txoj haujlwm qub. Lub Ib Leeg Acting Pneumatic Rack thiab Pinion Rotary Actuator yog tsim los daws cov teeb meem no, muab kev tswj xyuas kom zoo thaum tseem muab kev tiv thaiv tsis siv neeg rov pib dua thaum muaj kev cuam tshuam ntawm cov pa roj.
Lub Ib Leeg Acting Pneumatic Rack thiab Pinion Rotary Actuator yog lub valve actuator uas tau tsav los ntawm huab cua compressed. Nws converts linear tsab ntawv tsa suab mus rau hauv rotary tsab ntawv tsa suab los ntawm ib tug khib thiab pinion kis qauv, yog li tswj qhov qhib thiab kaw ntawm li qub. Qhov no actuator nta ib qho - ua yeeb yam (caij nplooj ntoos hlav- rov qab) tsim, txhais tau hais tias tom qab huab cua siab tsav txav mus rau hauv ib qho kev taw qhia, lub caij nplooj ntoos hlav sab hauv yuav rov qab lub actuator rau nws qhov chaw pib yog tias huab cua cuam tshuam, yog li muab kev tiv thaiv kev nyab xeeb.
Cov khoom no yog dav siv los tswj 90℃lub kaum sab xis stroke li qub xws li pob li qub, npauj npaim li qub, thiab ntsaws li qub, thiab tsim nyog rau cov roj, roj, tshuaj, dej kho, thiab kev lag luam automation.
ib leeg ua yeeb yam pneumatic khib thiab pinion teb actuator Suav Hoobkas

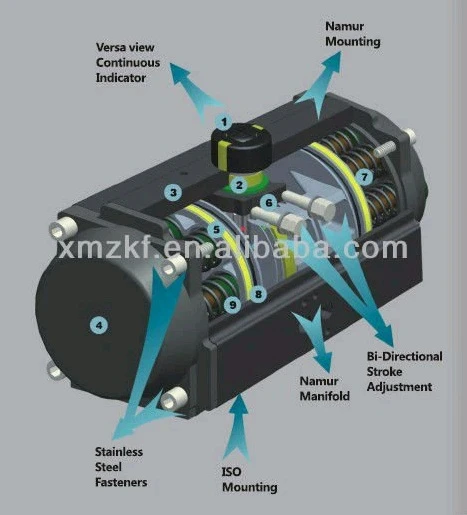

Kev tsim kho ntawm pneumatic actuator
1. Qhov taw qhia
Qhov taw qhia txoj hauj lwm nrog NAMUR yog yooj yim rau mounting accessories xws li Limit Switch box, positioner thiab hais txog.
2. Pinion
Lub pinion yog siab -precision thiab kev sib koom ua ke, ua daim ntawv nickelled- alloy steel, tag nrho ua raws li cov qauv tshiab ntawm ISO5211, DIN3337, NAMUR. Qhov ntev tuaj yeem kho tau thiab cov hlau tsis muaj steel muaj.
3. Lub cev Actuator
Raws li cov kev cai sib txawv, lub extruded aluminium alloy ASTM6005 Lub cev tuaj yeem kho nrog nyuaj anodized, hmoov polyester pleev xim rau (cov xim sib txawv muaj xws li xiav, txiv kab ntxwv, daj thiab lwm yam), PTFE lossis Nickel plated.
4. Cov kaus mom kawg
Tuag-casting aluminium hmoov polyester pleev xim rau hauv cov xim sib txawv, PTFE lossis Nickel plated.
5. Pistons
Cov ntxaib khib pistons yog tsim los ntawm Die-casting aluminium kho nrog Hard anodized los yog ua daim ntawv Cast steel nrog galvanization. Symmetric mounting txoj hauj lwm, lub neej voj voog ntev thiab kev ua haujlwm ceev, thim rov qab los ntawm qhov yooj yim inverting lub pistons.
6. Kev hloov pauv mus txawv tebchaws
Tus cab sab nraud tuaj yeem hloov kho cov ntsia hlau tuaj yeem kho ± 5℃ntawm ob qho tib si qhib thiab kaw cov lus qhia yooj yim thiab meej.
7. Kev ua haujlwm siab springs
Preloaded txheej springs yog tsim los ntawm cov khoom zoo rau kev tiv thaiv corrosion thiab ntev kev pab cuam lub neej, uas tuaj yeem raug denounced yam xyuam xim thiab yooj yim los ua kom tau raws li cov kev xav tau sib txawv ntawm torque los ntawm kev hloov ntau cov springs.
8. Bearings & Cov lus qhia
Ua daim ntawv tsis tshua muaj kev sib txhuam, ntev -cov khoom siv hauv lub neej, kom tsis txhob muaj kev sib cuag ncaj qha ntawm cov hlau. Kev saib xyuas thiab hloov pauv tau yooj yim thiab yooj yim.
9. O-cov
NBR roj hmab O-rings muab teeb meem- ua haujlwm pub dawb ntawm cov qauv ntsuas kub.Rau cov ntawv thov kub thiab tsis tshua muaj Viton lossis Silicone.
ib leeg- ua pneumatic khib thiab pinion teb actuator piston
Peb Lub Zog
WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD yog lub chaw tsim khoom ntawm pneumatic actuators thiab valve automation khoom.
Nrog rau cov khoom siv ntau lawm, kev tswj hwm nruj, thiab kev lag luam nplua nuj, peb cov khoom tau raug xa tawm mus rau ntau lub teb chaws thiab cheeb tsam hauv Europe, Southeast Asia, Middle East, thiab South America.
Peb zoo siab tos txais cov neeg lag luam wholesale thoob ntiaj teb, cov neeg xa khoom, thiab cov neeg siv khoom engineering los koom tes nrog peb los muab cov khoom lag luam zoo tshaj plaws rau kev ua haujlwm automation.
