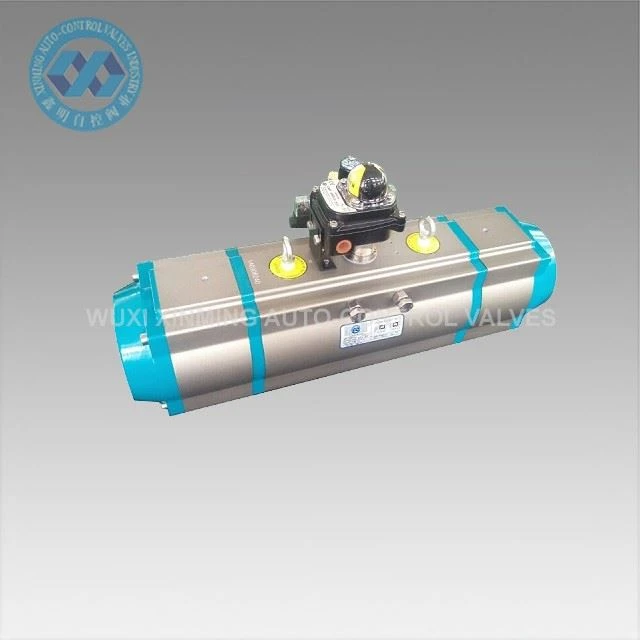

Kev kub ceev Pneumatic Actuator, tseem hu ua lub tog raj kheej txwv kev sib hloov, yog lub tshuab hluav taws xob uas siv rau kev sib hloov, qhib, kaw, sib tov, viav vias, qhov chaw, kauj, thiab ntau yam khoom siv uas cuam tshuam nrog kev txwv kev sib hloov. Pneumatic Rack thiab Pinion Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau. Precision tuag-casting aluminium alloy ob- khib pistons nrog nyuaj oxidation kho txhim kho lub kaum sab xis qhov tseeb thiab lub luag haujlwm lub neej. Lub cev actuator nrog nyuaj oxidation tuaj yeem tiv thaiv khawb.
Technical Parameter:
XM Ultra Fast Pneumatic Khib thiab Pinion Actuator Tso Tawm Torque Table
|
Qauv |
Input cua siab (bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 | |
| Cua siab tso zis torque (Nm) | ||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM{0}}DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
Khoom nta:
Siab zog thiab ceev
Kev ua haujlwm yooj yim
Tsis xav tau kev sib kis mechanism
Muaj peev xwm tiv taus overload kom txog thaum nres tag
Kev ntseeg siab
Kev tawg- pov thawj thiab tiv thaiv hluav taws
Yooj yim sib dhos
Yooj yim kho lub zog thiab ceev
Hais txog peb:

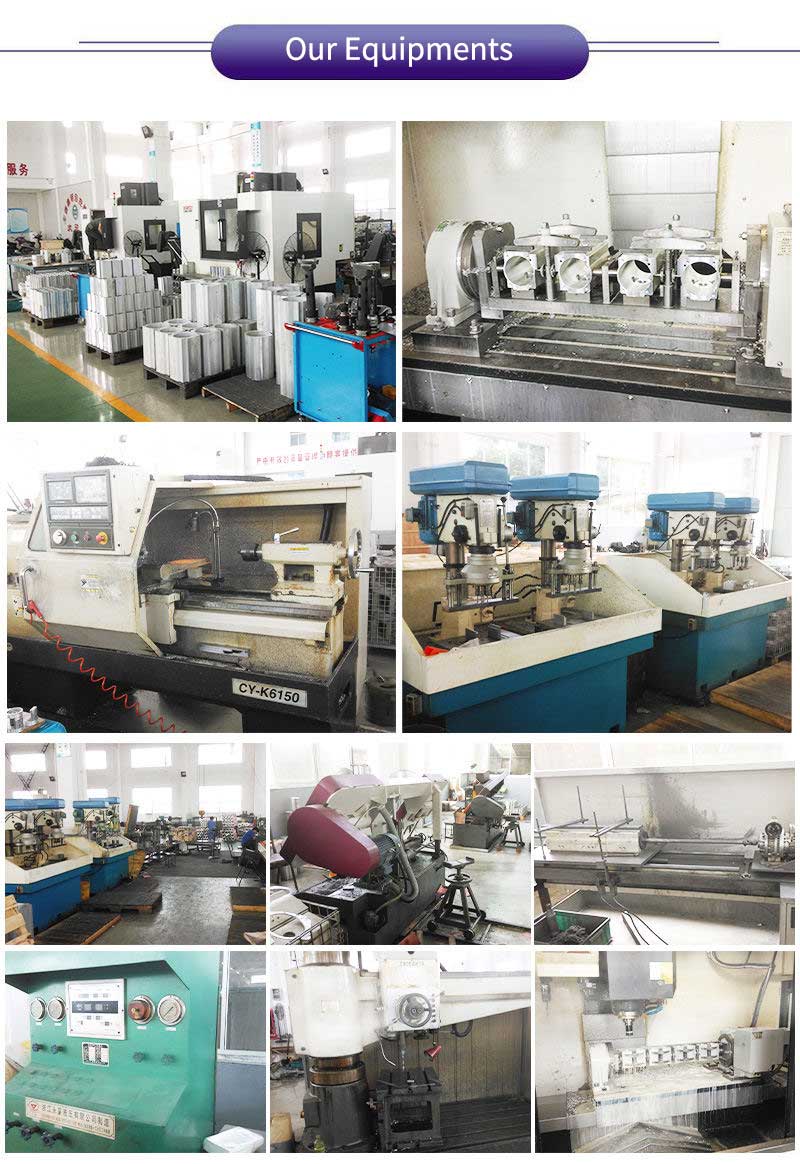

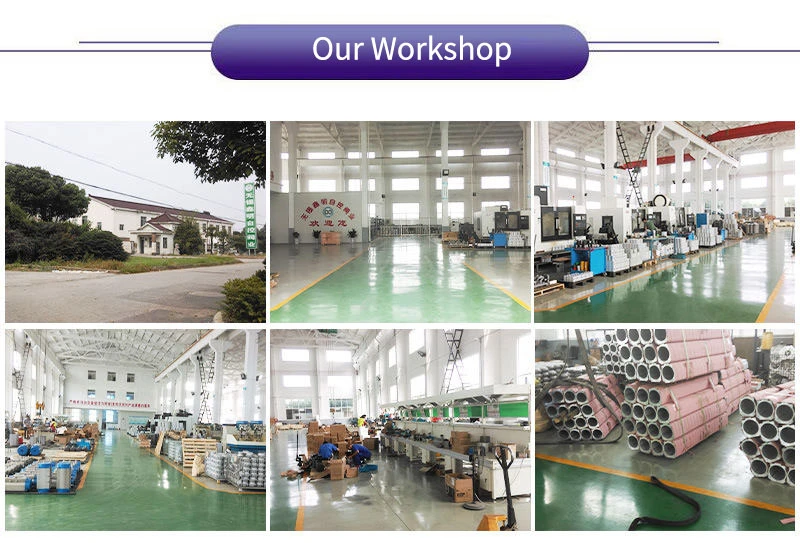

Wuxi Xinming Auto- tswj Valves Co., Ltd. tshwj xeeb hauv kev tsim ISO9001-certified XM series pneumatic actuators thiab tsis siv neeg tswj li qub, ua raws li ISO5211/DIN3337/VDI/VDE-3845/NAMUR cov qauv. Nrog rau R & D muaj peev xwm ua tau zoo thiab cov chaw tsim khoom, peb cov khoom ua haujlwm muaj ntau yam kev lag luam xws li roj & roj, tshuaj, thiab cov chaw tsim hluav taws xob, embodying peb txoj kev mob siab rau "Technology First, Quality Excellence" los ntawm cov kev daws teeb meem tshiab thiab kev ua tau zoo. Yog tias koj xav tau High Speed Pneumatic Actuator, thov hu rau peb.
