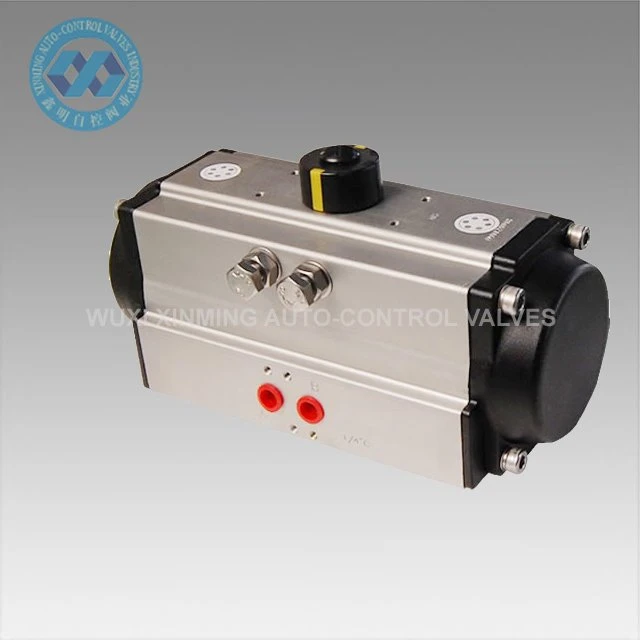

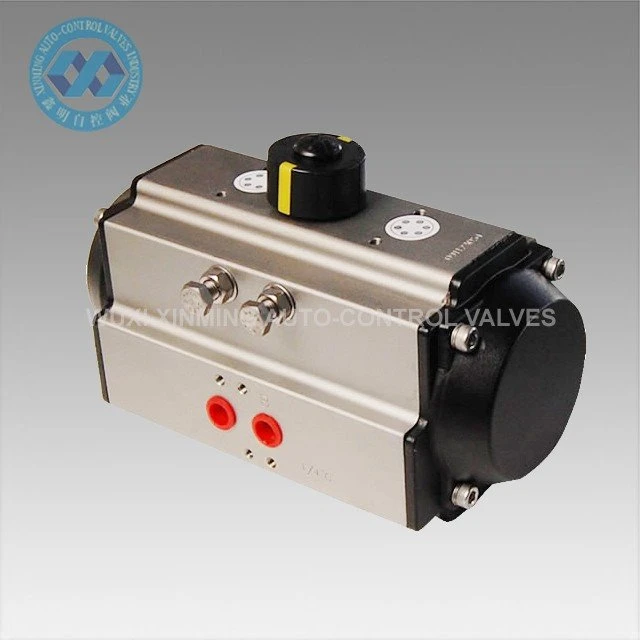

Ib Leeg Ua Haujlwm Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau. Precision tuag-casting aluminium alloy ob-rack pistons nrog nyuaj oxidation kev kho mob txhim kho lub kaum sab xis qhov tseeb thiab lub luag haujlwm lub neej. Lub cev actuator nrog nyuaj-oxidation tuaj yeem zam qhov khawb tau zoo.

Cov ntsiab lus ceev

Khoom npe: Ib leeg ua haujlwm Pneumatic Actuator

Hom Lub Npe: XM, lossis OEM

Actuator loj: 32mm -400mm

Lub kaum sab xis: 0 degree ~ 90 degree (± 5 degree)

Ua Haujlwm Kub Kub: -20 degree ~ ntxiv rau 80 degree (tus qauv)

-40 degree ~ ntxiv rau 80 degree (tsawg kub)

-15 degree ~ 150 degree (siab kub)

Huab cua siab: {{0}}.2 ~ 0.8MPa

Kev sib txuas sab saum toj: VDI / VDE3845 NAMUR

Kev sib txuas hauv qab: ISO 5211 thiab DIN3337

Khoom siv: Aluminium alloy

Structure: khib thiab pinion, dual khib pistons

Actuator lub cev nto kho: nyuaj anodized

End Cap Xim: dub grey, dub, tsaus xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.

Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2015

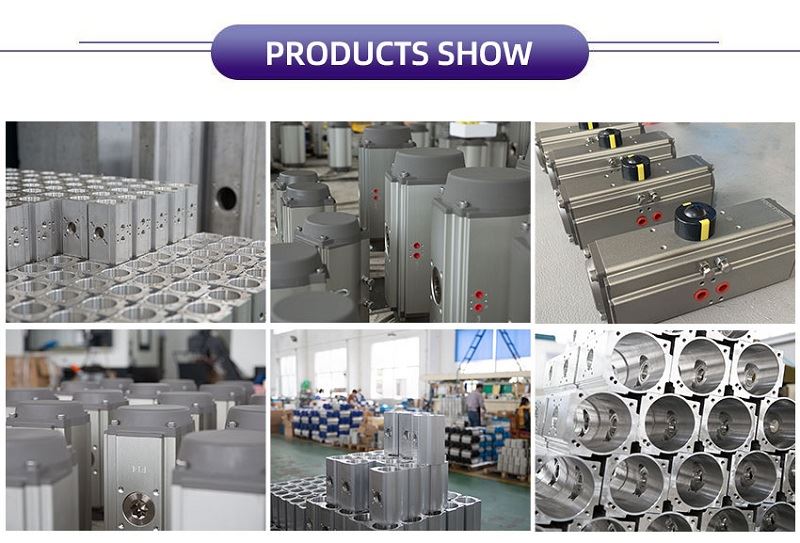

2 (2)

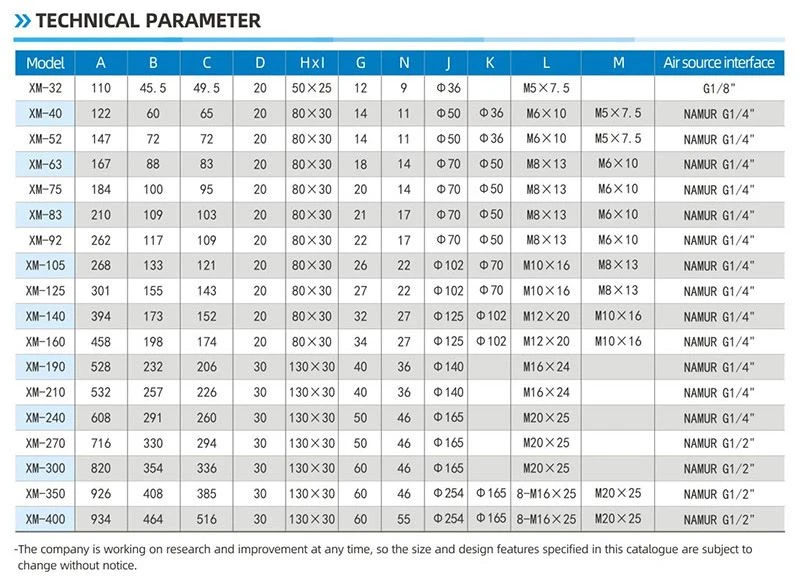

Technical Parameter

XM IB TUG ACTUTOR NTAWM TORQUE TABLE

XM series Ib Leeg Ua Haujlwm Pneumatic Actuator
Qauv	Caij nplooj ntoos hlav QTY	Caij nplooj ntoos hlav Output Torque (Nm)		Input cua siab (unit: bar)
				3		4		5		6		7
		Cua siab tso zis torque (Nm)
		0 degree	90 degree	0 degree	90 degree	0 degree	90 degree	0 degree	90 degree	0 degree	90 degree	0 degree	90 degree
XM-SR52	5	4.0	6.2	8.1	5.8	12.1	9.8
	6	4.7	7.4	7.3	4.6	11.3	8.6
	7	5.5	8.7	6.5	3.3	10.5	7.3	14.5	11.3
	8	6.3	9.9			9.7	6.1	13.7	10.1
	9	7.1	11.2			8.9	4.8	12.9	8.8	16.9	12.8
	10	7.9	12.4			8.1	3.6	12.1	7.6	16.1	11.6	20.1	15.6
	11	8.7	13.6			7.3	2.4	11.3	6.4	15.3	10.4	19.3	14.4
	12	9.5	14.9					10.5	5.1	14.5	9.1	18.5	13.1
XM-SR63	5	6.8	10.4	14.9	11.3	22.1	18.5
	6	8.2	12.5	13.5	9.2	20.7	16.4
	7	9.6	14.6	12.1	7.1	19.3	14.3	26.5	21.5
	8	10.9	16.7			18.0	12.2	25.2	19.4
	9	12.3	18.9			16.6	10.0	23.8	17.2	31.1	24.5
	10	13.7	20.9			15.2	8.0	22.4	15.2	29.7	22.5	36.9	29.7
	11	15.0	22.9					21.1	13.2	28.4	20.5	35.6	27.7
	12	16.4	25.0					19.7	11.1	27.0	18.4	34.2	25.6
XM-SR75	5	10.0	15.0	20.0	15.0	30.0	25.0
	6	12.0	18.0	18.0	12.0	28.0	22.0
	7	14.0	21.0	16.0	9.0	26.0	19.0
	8	16.0	24.0			24.0	16.0	34.0	26.0
	9	18.0	27.0			22.0	13.0	32.0	23.0	42.0	33.0
	10	20.0	30.0			20.0	10.0	30.0	20.0	40.0	30.0	50.0	40.0
	11	22.0	33.0			18.0	7.0	28.0	17.0	38.0	27.0	48.0	37.0
	12	24.0	36.0					26.0	14.0	36.0	24.0	46.0	34.0
XM-SR83	5	15.5	23.0	30.5	23.0	46.5	39.0
	6	18.6	27.6	27.4	18.4	43.4	34.4
	7	21.7	32.2			40.3	29.8	56.3	45.8
	8	24.8	36.8			37.2	25.2	53.2	41.2
	9	27.9	41.4			34.1	20.6	50.1	36.6	65.1	51.6
	10	31.0	46.0			31.0	16.0	47.0	32.0	62.0	47.0	77.0	62.0
	11	34.1	50.6					43.9	27.4	58.9	42.4	73.9	57.4
	12	37.2	55.2					40.8	22.8	55.8	37.8	70.8	52.8
XM-SR92	5	23.0	33.0	44.6	34.7	67.1	57.2
	6	27.6	39.5	40.0	28.1	62.5	50.6
	7	32.2	46.1			57.9	44.0	80.4	66.5
	8	36.8	52.7			53.3	37.4	75.8	59.9
	9	41.4	59.3			48.7	30.8	71.2	53.3	93.8	75.9
	10	46.0	65.9			44.1	24.2	66.6	46.7	89.2	69.3	111.7	91.8
	11	50.6	72.5					62.0	40.1	84.6	62.7	107.1	85.2
	12	55.2	79.1					57.4	33.5	80.0	56.1	102.5	78.6
XM-SR105	5	31.8	49.3	66.0	48.4	98.6	81.0
	6	38.1	59.2	59.6	38.5	92.2	71.1
	7	44.5	69.0			85.9	61.3	118.5	93.9
	8	50.8	78.9			79.5	51.4	112.1	84.0
	9	57.2	88.7			73.2	41.6	105.8	74.2	138.4	106.8
	10	63.5	98.6			66.8	31.7	99.4	64.3	132.0	96.9	164.5	129.4
	11	69.9	108.5					93.1	54.4	125.7	87.0	158.2	119.5
	12	76.2	118.3					86.7	44.6	119.3	77.2	151.8	109.7
XM-SR125	5	50	78	100	72	150	122
	6	60	94	90	56	140	106
	7	70	109			130	91	181	142
	8	80	125			120	75	171	126
	9	90	140			110	60	161	110	211	161
	10	100	156			100	44	151	95	201	145	251	195
	11	110	172					141	79	191	129	241	179
	12	120	187					131	64	181	114	231	164
XM-SR140	5	86	129	174	131	261	218
	6	103	155	157	105	244	192
	7	120	181			227	166	314	253
	8	138	206			209	141	296	228
	9	155	232			192	115	279	202	366	289
	10	172	258			175	89	262	176	349	263	436	350
	11	189	284					245	150	332	237	585	324
	12	206	310					228	124	315	211	402	298
XM-SR160	5	140	193	258	205	390	337
	6	167	231	230	166	362	298
	7	195	270			334	260	467	393
	8	223	308			306	221	439	354
	9	251	347			278	183	411	316	543	448
	10	279	385			250	144	383	277	515	409	647	541
	11	307	424					355	239	487	371	619	503
	12	335	462					327	200	459	332	591	464
XM-SR190	5	190	320	451	320	664	533
	6	227	384	413	256	626	469
	7	265	448			588	405	802	619
	8	303	512			550	341	764	555
	9	341	576			512	277	726	491	939	704
	10	379	640			474	213	688	427	901	640	1114	853
	11	417	704					650	363	863	576	1076	789
	12	455	768					612	299	825	512	1038	725
XM-SR210	5	261	440	619	439	912	732
	6	313	528	566	351	859	644
	7	365	616			807	556	1101	850
	8	417	704			755	468	1049	762
	9	469	792			703	380	997	674	1290	967
	10	521	880			651	292	945	586	1238	879	1531	1172
	11	573	968					893	498	1186	791	1479	1084
	12	625	1056					841	410	1134	703	1427	996
XM-SR240	5	389	583	766	572	1151	957
	6	467	700	688	455	1073	840
	7	545	816			995	724	1379	1108
	8	622	933			918	607	1302	991
	9	700	1049			840	491	1224	875	1610	1261
	10	778	1166			762	374	1146	758	1532	1144	1916	1528
	11	856	1283					1068	641	1454	1027	1838	1411
	12	934	1399					990	525	1376	911	1760	1295
XM-SR270	5	505	960	1250	795	1835	1380
	6	606	1152	1149	603	1734	1188
	7	707	1344			1633	996	2217	1580
	8	808	1536			1532	804	2116	1388
	9	909	1728			1431	612	2015	1196	2601	1782
	10	1010	1920			1330	420	1914	1004	2500	1590	3085	2175
	11	1111	2112					1813	812	2399	1398	2984	1983
	12	1212	2304					1712	620	2298	1206	2883	1791
XM-SR300	5	725	1145	1522	1102	2271	1851
	6	870	1374	1377	873	2126	1622
	7	1015	1603			1981	1393	2730	2142
	8	1160	1832			1836	1164	2585	1913
	9	1305	2061			1691	935	2440	1684	3189	2433
	10	1450	2290			1546	706	2295	1455	3044	2204	3793	2953
	11	1595	2519					2150	1226	2899	1975	3648	2724
	12	1740	2748					2005	997	2754	1746	3503	2495
XM-SR350	5	1173	1703	2003	1474	3145	2616
	6	1408	2043	1768	1133	2910	2275
	7	1642	2384			2676	1935	3818	3077
	8	1877	2724			2441	1594	3583	2736
	9	2111	3065			2207	1254	3349	2396	4491	3538
	10	2346	3405			1972	913	3114	2055	4256	3197	5398	4339
	11	2581	3746					2879	1715	4021	2857	5413	3999
	12	2815	4086					2645	1374	3787	2516	4928	3658
XM-SR400	7	1837	2881	2812	1768
	8	2099	3292	2550	1225
	9	2362	3704	2259	768	3887	2396
	10	2624	4115	1967	311	3595	1939	5223	3567
	11	2886	4527			3303	1482	4931	3110	6559	4738
	12	3149	4938			3012	1025	4641	2653	6268	4281	7895	5908
	13	3411	5350					4348	2195	5976	3823	7603	5450
	14	3674	5761					4057	1738	5685	3366	7312	4993
	15	3936	6173					3765	1281	5393	2909	7020	4536
	16	4198	6584							5101	2452	6728	4079

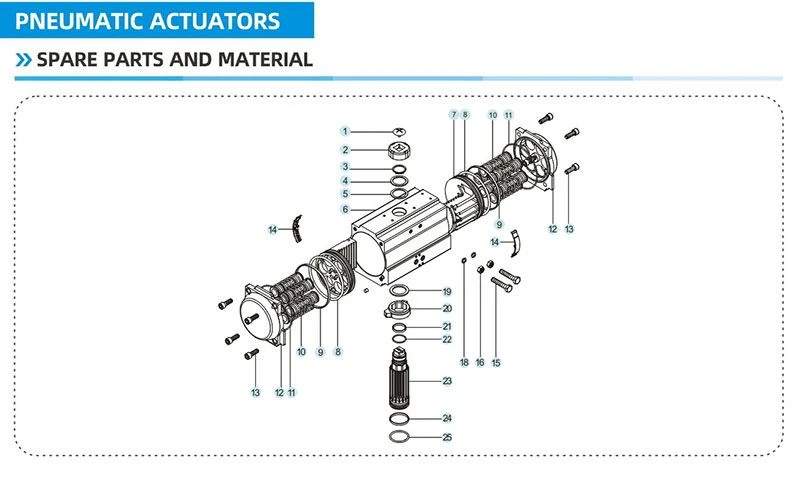

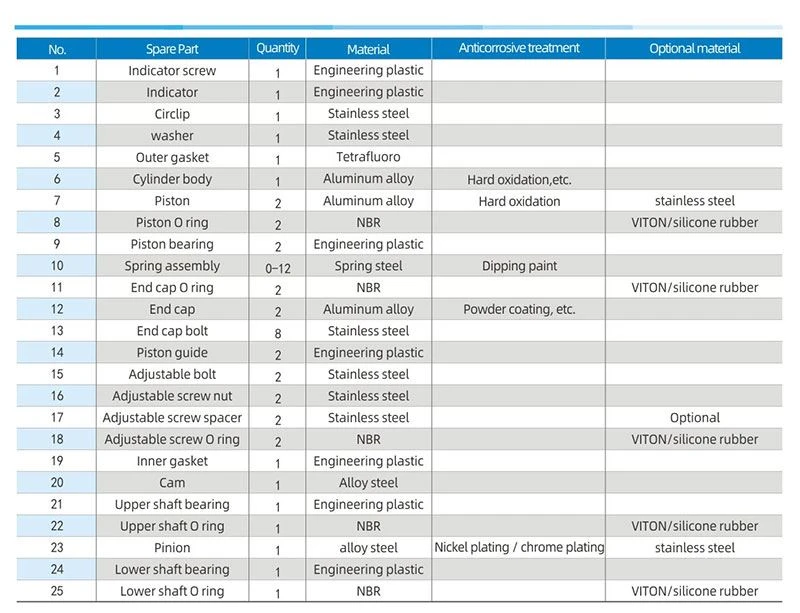

Spare Parts thiab Khoom siv

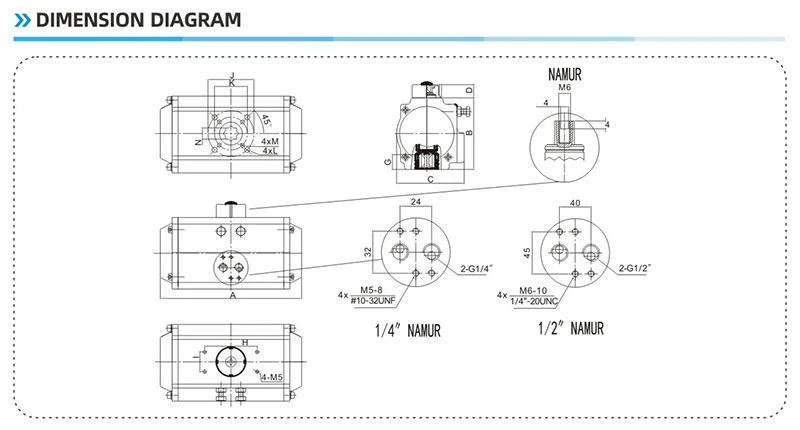

Daim duab Dimension

Qhov zoo

1) Tag nrho cov khoom tseem ceeb yuav raug kho nrog nyuaj-anodization los txhim kho lub zog mus rau qib zoo kom ntseeg tau tias kev ua haujlwm zoo thiab lub neej ua haujlwm.

2) Tag nrho cov txheej txheem yog ib zaug-tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.

6 (2)

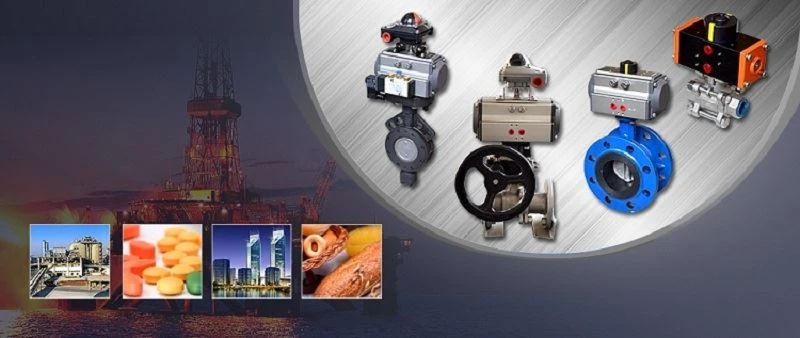

Daim ntawv thov

Pneumatic Rotary Actuators tuaj yeem tsim rau ntau yam flammable, corrosive, lub luag haujlwm, muaj zog magnetic teb, hluav taws xob, kev co corrosive ib puag ncig sab hauv tsev lossis sab nraum zoov, uas tau siv dav hauv kev lag luam hluav taws xob, petrochemical, metallurgy, roj av, roj, hauv nroog, kev tsim kho cov dej ntws. , chemical kev lag luam, roj refining, mining, fais fab nroj tsuag, metallurgy, architecture, tshuaj, zaub mov, roj, kev tshawb fawb, thiab lwm yam.

Lub Sijhawm Lead:

Quantity (Units)	1-50	51-1000	1001-10000	＞10001
Est. Sijhawm (hnub)	Cov khoom hauv Tshuag	7	20	Yuav tsum sib tham
