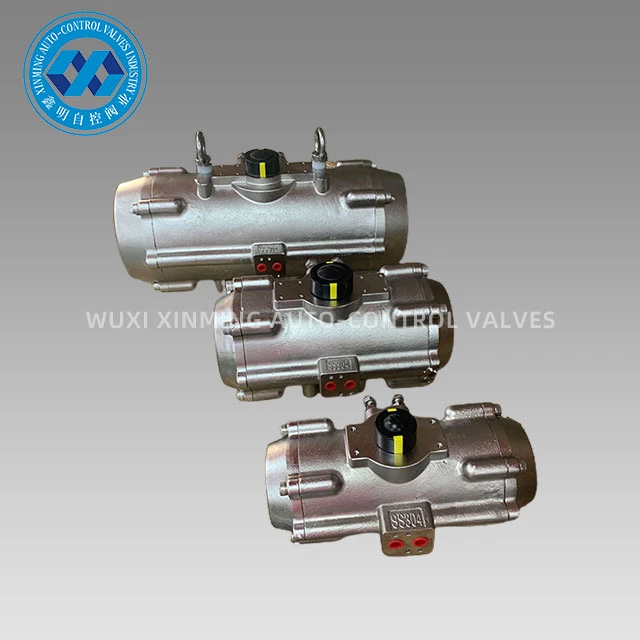

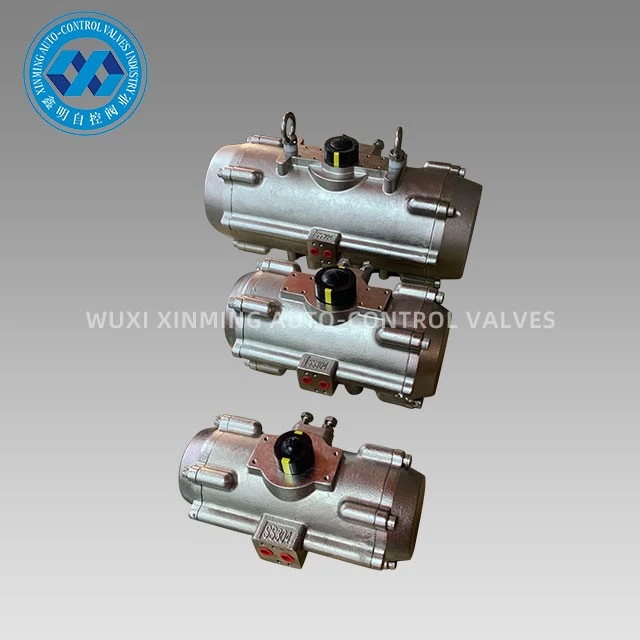

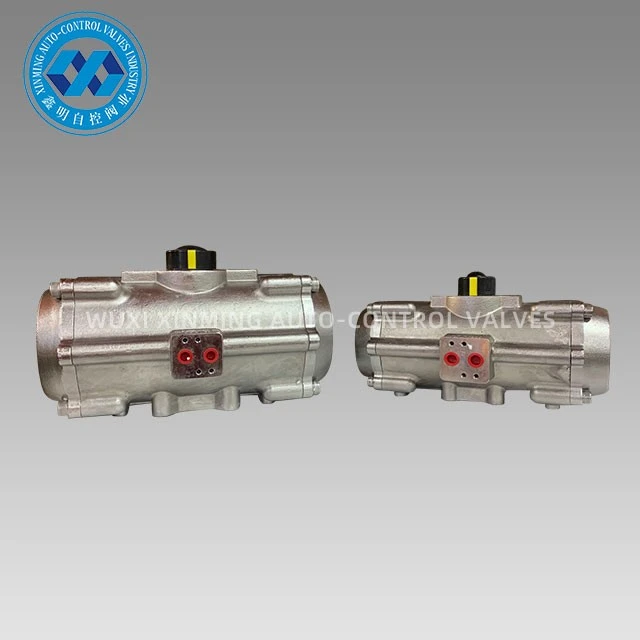

Lub Siab Zoo Stainless Hlau Pneumatic Khib thiab Pinion Actuator 90 Degree los ntawm WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. yog ib tug precision -engineered actuator tsim los txhim khu kev qha thiab ua tau zoo valve automation. Ua nrog lub cev tsis muaj steel hlau tag nrho, tus actuator no muaj kev tiv thaiv corrosion zoo heev, ua haujlwm ntev, thiab kev ua haujlwm hnyav xws li tshuaj lom neeg, zaub mov, tshuaj, thiab kev lag luam marine.
Qhov no stainless hlau pneumatic khib thiab pinion actuator converts compressed cua zog rau hauv 90℃rotary motion, zoo kawg nkaus haum rau tsav pob li qub, npauj npaim li qub, thiab ntsaws li qub. Nws cov qauv compact, siab torque tso zis, thiab kev ua haujlwm du ua rau nws nyiam xaiv rau cov tshuab automation uas xav tau kev ntseeg siab thiab kev nyab xeeb.
Technical Parameter
XM STAINLESS HLAU STEEL PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
|
Qauv |
Input cua siab (unit: bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Cua siab tso zis torque (Nm) |
||||||
|
XM-DA45-SS |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52-SS |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63-SS |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75-SS |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83-SS |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92-SS |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105-SS |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125-SS |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140-SS |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160-SS |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190-SS |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210-SS |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240-SS |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270-SS |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300-SS |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350-SS |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400-SS |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
Product Advantage
Txhua qhov tseem ceeb ntawm cov khoom seem yuav raug kho nrog cov txheej txheem ua tau zoo kom paub tseeb tias qhov ua tau zoo thiab lub luag haujlwm lub neej mus rau qib zoo.Stainless hlau paub txog nws cov kev tiv thaiv corrosion zoo heev, ua rau nws zoo tagnrho rau cov chaw hnyav lossis cov ntawv thov uas cuam tshuam rau cov dej noo, tshuaj lom neeg, lossis huab cua kub. Qhov kev ua haujlwm ntev no ua kom lub actuator yuav muaj lub neej ntev dua, txo qhov kev xav tau ntau zaus hloov lossis kho.
Tag nrho cov txheej txheem yog ib qho - sij hawm- tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.Stainless steel actuators feem ntau yog tsim los kom haum rau kev lag luam - qauv mounting qhov ntev, ua rau lawv yooj yim rau integrate rau hauv uas twb muaj lawm systems los yog hloov cov qub actuators. Qhov no compatibility txo lub sij hawm installation thiab nqi thaum muab ib tug seamless hloov.

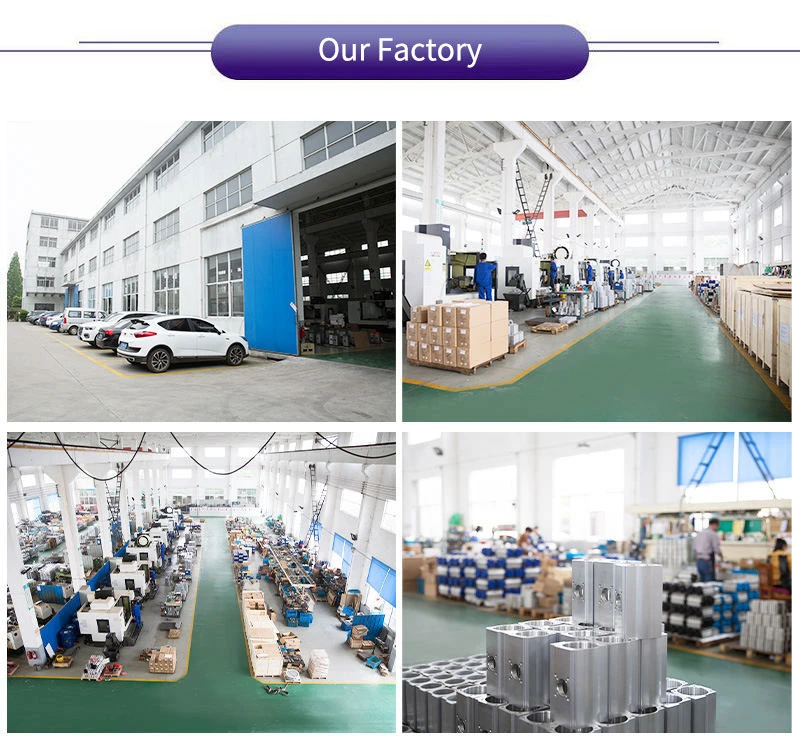

Muaj 13 teeb CNC chaw tam sim no nyob rau hauv peb lub rooj cob qhia tam sim no los xyuas kom meej lub sijhawm khoom xa tuaj. Lub siab - zoo actuator ua kom ntseeg tau kev ua haujlwm, txo lub sijhawm poob qis thiab txhim kho kev ua haujlwm tag nrho. Kev tsim kho stainless hlau muab lub zog thiab txhim kho tus actuator muaj peev xwm tiv taus cov khoom hnyav thiab siab - kev siv siab, ua kom muaj kev sib tw thiab zoo ib yam.
Khoom siv
XM series Stainless Hlau Pneumatic Rack thiab Pinion Actuators tuaj yeem tsim nyog rau ntau yam flammable, corrosive, plua plav, muaj zog sib nqus teb, hluav taws xob, kev co corrosive ib puag ncig sab hauv tsev lossis sab nraum zoov, uas tau siv dav hauv kev lag luam hluav taws xob, petrochemical, metallurgy, roj av, roj, hauv nroog, kev tsim kho, dej, tshuaj lom neeg kev lag luam, roj refin, roj refin, rgb. gas, kev tshawb fawb, thiab lwm yam.
Vim li cas thiaj xaiv XINMING?
- Txij li thaum xyoo 2007, peb tau tshwj xeeb hauv siab -kev ua haujlwm valve automation khoom.
- Cov Khoom Muag Khoom: Pneumatic actuators, pob li qub, npauj npaim li qub, solenoid li qub, txwv hloov lub thawv, thiab lwm yam.
- Advanced Manufacturing Equipment: Nruab nrog CNC lathes, machining chaw, thiab cov chaw kuaj xyuas kom zoo tshaj plaws thiab zoo.
- Strict Quality Assurance: Txhua tus actuator tau dhau 100% kev sim ua haujlwm ua ntej xa khoom.
- Ntiaj Teb Kev Pabcuam Network: Kev ntseeg siab los ntawm cov neeg siv khoom thoob ntiaj teb rau kev txhawb nqa kev lag luam thiab kev ntseeg siab ntev ntev -.
Tiv tauj peb hnub no los thov cov lus hais lossis sib tham txog koj qhov kev xav tau valve automation - peb pab neeg ua haujlwm yuav pab koj xaiv lub zoo meej pneumatic khib thiab pinion actuator rau koj qhov project.
