Khoom Taw Qhia

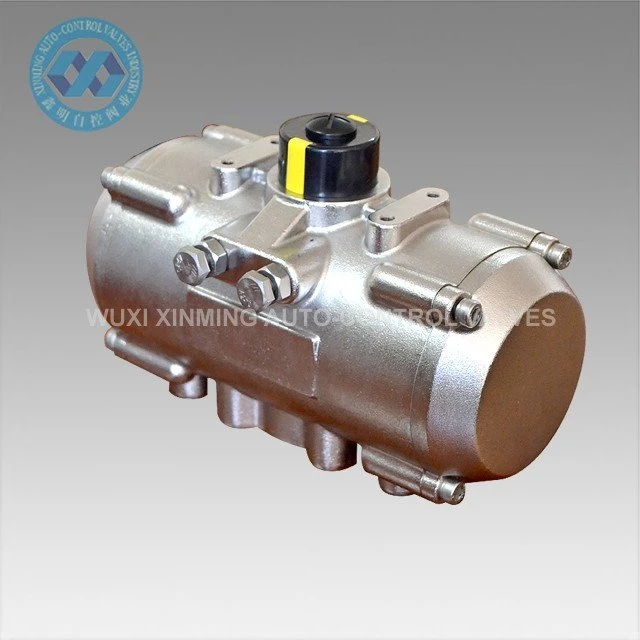

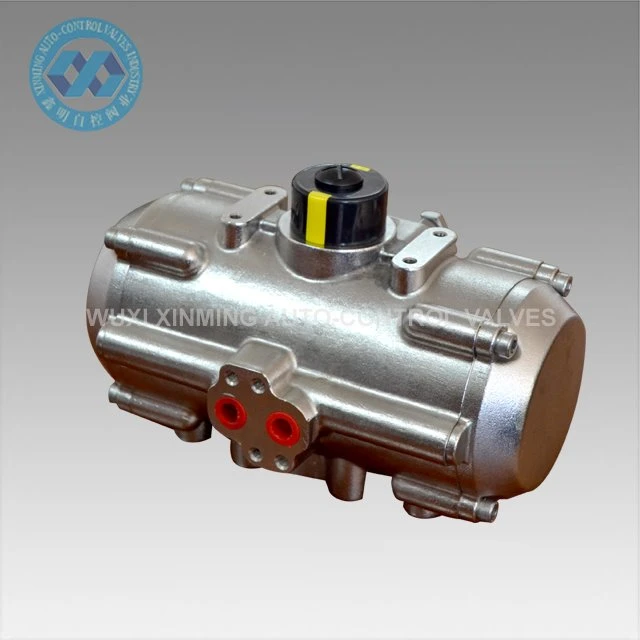

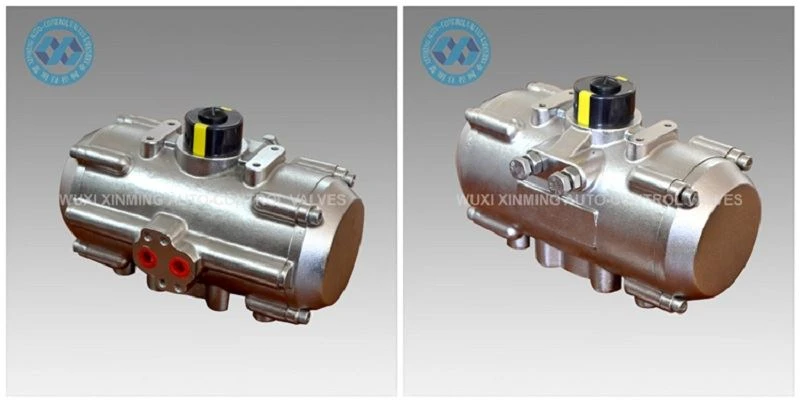

Stainless Hlau Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav mus los txiav. Precision tuag-casting stainless hlau ob chav khib pistons nrog cov txheej txheem ua haujlwm zoo txhim kho lub kaum sab xis kom raug thiab lub neej ua haujlwm. Tus Hlau Stainless Pneumatic Actuator tuaj yeem ua haujlwm zoo heev hauv ib puag ncig corrosive.
Paub meej sai
Khoom Lub Npe: Stainless Hlau Pneumatic Actuator
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Actuator loj: 32mm-400mm
Teb lub kaum ntse ntse: 0 ° ~ 90 ° (± 5 °)
Ua Haujlwm Kub Ntau Yam: -20 ℃ ~ +80 ℃ (tus qauv)
-40 ℃ ~ +80 ℃ (qis kub)
-15 ℃ ~ 150 ℃ (kub siab)
STAINLESS STEEL PNEUMATIC ACTUATOR
KHOOM ZOO TSHAJ PLAWS THIAB KHOOM

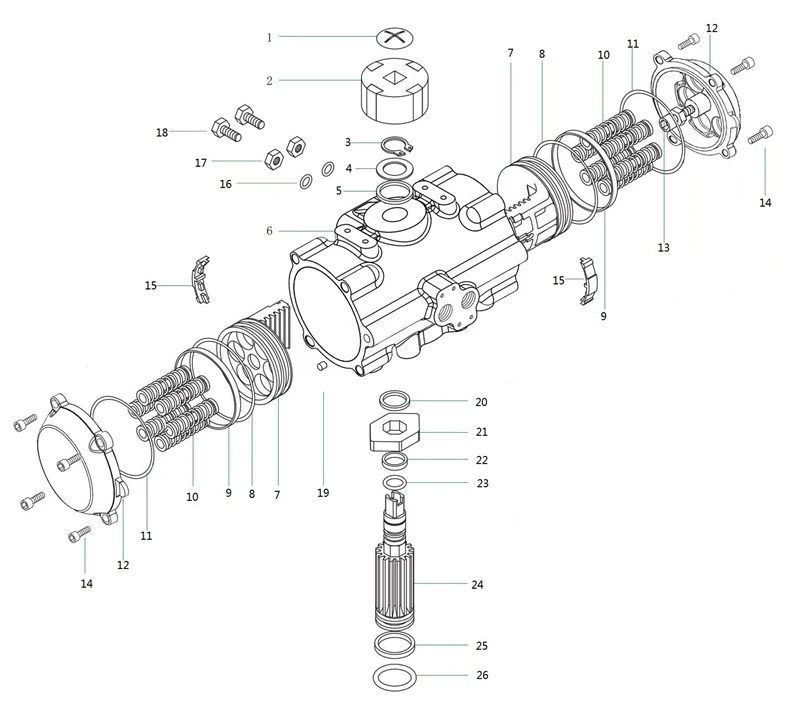

Tsis yog | Tshooj Tshooj | Ntau npaum li cas | Khoom siv | Yeem Cov Khoom |
1 | Ntsia ntsia hlau | 1 | Yas Engineering |
|
2 | Qhov taw qhia | 1 | Yas Engineering |
|
3 | Dab noj hnub | 1 | stainless hlau |
|
4 | Tshuab ntxhua khaub ncaws | 1 | stainless hlau |
|
5 | Txheej sab nrauv | 1 | Tetrafluoro |
|
6 | Lub cev kheej kheej | 1 | Stainless hlau |
|
7 | Piston | 2 | Stainless hlau |
|
8 | Piston O nplhaib | 2 | NBR | VITON/HLB |
9 | Piston kabmob | 2 | Yas yas Engineering |
|
10 | Caij nplooj ntoos hlav los ua ke | 0-12 | Caij nplooj ntoos hlav hlau |
|
11 | Xaus cap O ring | 2 | NBR | VITON/HLB |
12 | Xaus cap | 2 | Stainless hlau | |
13 | Xaus cap nres ntsia liaj qhov rooj | 2 | Stainless hlau | yeem |
14 | Xaus lub hau ntswj | 8 | Stainless hlau | |
15 | Piston phau ntawv qhia | 2 | Yas yas Engineering | |
16 | Adjustable screw spacer | 2 | Stainless hlau | |
17 | Adjustable ntsia hlau txiv ntoo | 2 | Stainless hlau | |
18 | Adjustable ntsia liaj qhov rooj | 2 | Stainless hlau | |
19 | Adjustable ntsia hlau O nplhaib | 2 | NBR | VITON/HLB |
20 | Sab hauv gasket | 1 | Yas yas Engineering | |
21 | Cam | 1 | Stainless hlau | |
22 | Upper ncej bearing | 1 | Yas yas Engineering | |
23 | Upper ncej O nplhaib | 1 | NBR | VITON/HLB |
24 | Iav | 1 | Stainless hlau | |
25 | Cov kabmob qis dua | 1 | Yas yas Engineering | |
26 | Qaum qis O nplhaib | 1 | NBR | VITON/HLB |
Muaj Peev Xwm Muaj Peev Xwm
Kev Muaj Peev Xwm: 5000 units hauv ib hlis Pneumatic Rotary Actuator
Ntim& Kev xa khoom
Cov ntsiab lus ntim: 1). cais cov thawv nrog ua npuas ncauj ntim sab hauv
2). rooj plaub plywood rau kev xa khoom hiav txwv
3). Plywood pallet rau kev xa khoom cua
Chaw nres nkoj tawm mus:Shanghai, Suav
Lub Sijhawm Ua Haujlwm:
Quantity (Chav Nyob) | 1-100 | 101-1000 | 1001-5000 | ＞5001 |
Kwv yees Sijhawm (hnub) | 7 | 20 | 30 | Yuav tsum tau sib tham |
Qhov Zoo
1) Txhua qhov khoom seem tseem ceeb yuav raug kho nrog cov txheej txheem ua haujlwm tau zoo kom ntseeg tau tias kev ua haujlwm tau zoo thiab lub luag haujlwm hauv lub neej kom zoo.
2) Txhua txoj hauv kev yog ib zaug-tsim los ntawm CNC kom ntseeg tau tias cov txheej txheem raug thiab lub luag haujlwm lub neej.
Tuam txhab Taw qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb feem ntau tsim Pneumatic Actuator, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic/Hluav Taws Xob Tswj Valve, thiab lwm yam.

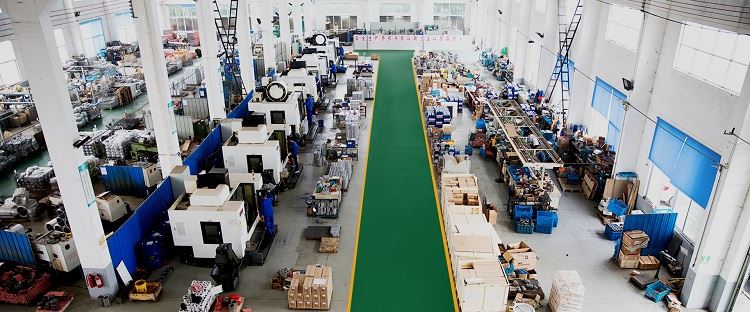

Peb lub tuam txhab muaj cov cuab yeej ua tiav thiab cov cuab yeej ntsuas zoo. Peb cov cuab yeej ua tiav suav nrog tshuab dhos, tshuab milling, tshuab tho txawv, npaj, tshuab drilling, CNC tshuab dhos, CNC chaw ua haujlwm thiab lwm yam khoom siv. Muaj tag nrho 30 teeb tsa, ntawm qhov uas muaj 5 teeb tsa txawv teb ntsug tshuab nruab nrab thiab ob peb teeb tsa siab CNC tshuab dhos.
Peb Qhov Kev Pabcuam
1) 7x24 teev xov tooj
2) Kev tswj kom nruj
3) Zoo zoo ntawm tus nqi tsim nyog
4) Zoo heev Tom qab-kev pabcuam
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
FAQ
Q1: Muaj peev xwm them nqe lus li cas?
A 1: T/T, L/C, Western Union.
Q2: Cov nqe lus lag luam?
A 2: Raws li Incoterms 2010, ib txwm nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q3: Kev siv tau cov lus hais?
A 3: Hauv 30 hnub.
Q4: Hom kev xa khoom?
A 4: Los ntawm hiav txwv, cua, nthuav qhia, lossis los ntawm kev tsheb nqaj hlau.
Q5: Warranty?
A 5: Ib xyoo lav zoo rau dawb, thiab them nyiaj tas mus li.
Q6: Kev teeb tsa thiab kev cob qhia?
A 6: cov lus qhia ib txwm siv rau kev teeb tsa. Yog tias tsim nyog, them nyiaj pabcuam kev tsim vaj tsev nyob txawv tebchaws.
