Khoom Taw Qhia
Peb Theem Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab tshuab nrog kev txav mus los tau txais. Precision die-casting aluminium alloy ob-khib pistons nrog kev kho oxidation nyuaj txhim kho lub kaum sab xis raug thiab lub luag haujlwm lub neej. Lub cev ua haujlwm nrog nyuaj-oxidation tuaj yeem zam qhov khawb tau zoo.
Paub meej sai

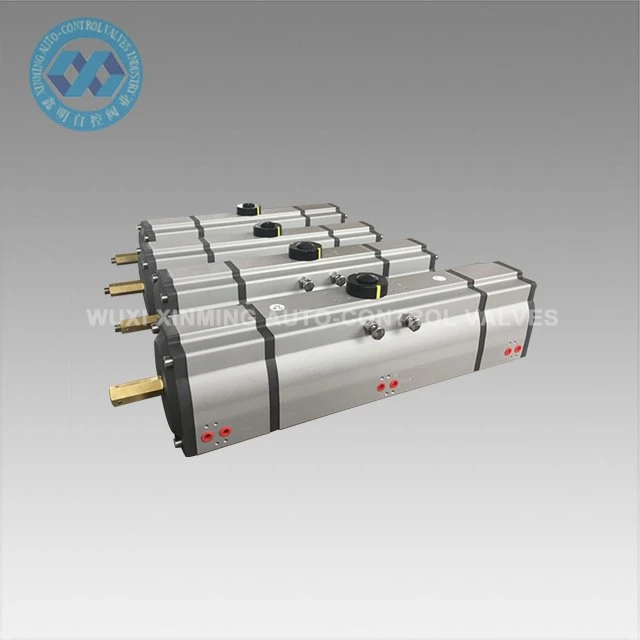

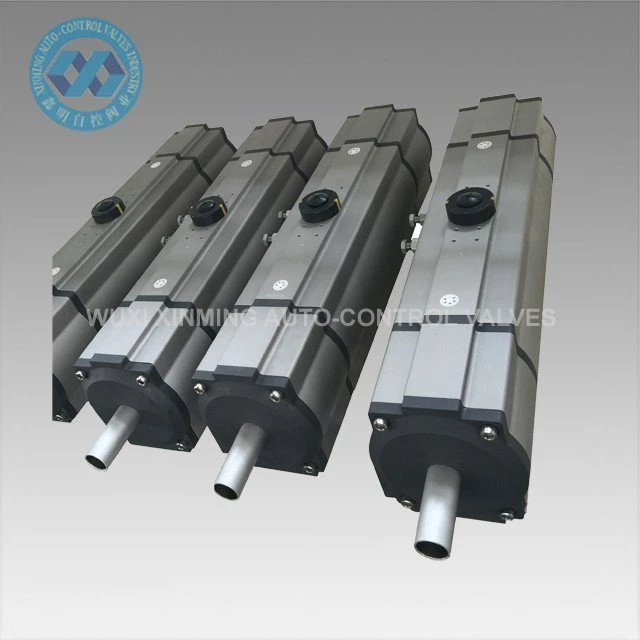

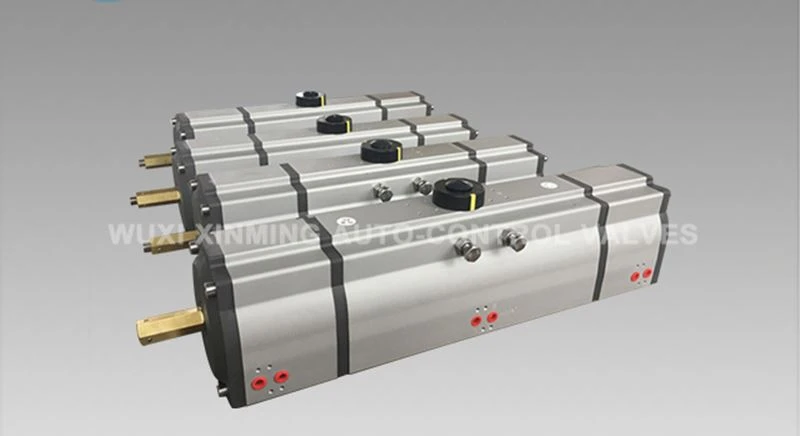

Khoom Lub Npe: Peb Theem Pneumatic Actuator
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Actuator loj: 32mm-400mm
Teb lub kaum ntse ntse: 0 ° ~ 180 ° (± 5 °)
Ua Haujlwm Kub Ntau Yam: -20 ℃ ~ +80 ℃ (tus qauv)
-40 ℃ ~ +80 ℃ (qis kub)
-15 ℃ ~ 150 ℃ (kub siab)
Cua txaus siab: 0.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI/VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Cov qauv: khib thiab pinion, ob chav pistons
Actuator lub cev kho qhov chaw: tawv anodized, lossis poob oxidation
Xaus Cap Xim: dub txho, dub, tsaus nti xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016
Parameter kev
XM Peb QAUV QHIA PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Tawm tswv yim cua siab (chav: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32-3S | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40-3S | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52-3S | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63-3S | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75-3S | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83-3S | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92-3S | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105-3S | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125-3S | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140-3S | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160-3S | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190-3S | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210-3S | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240-3S | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270-3S | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300-3S | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350-3S | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400-3S | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Muaj Peev Xwm Muaj Peev Xwm
Kev Muaj Peev Xwm: 10000 units hauv ib hlis Pneumatic Rotary Actuator
Ntim& Kev xa khoom
Cov ntsiab lus ntim: 1). cais cov thawv nrog ua npuas ncauj ntim sab hauv
2). rooj plaub plywood rau kev xa khoom hiav txwv
3). Plywood pallet rau kev xa khoom cua
Chaw nres nkoj tawm mus: Shanghai, Suav
Lub Sijhawm Ua Haujlwm:
Quantity (Chav Nyob) | 1-500 | 501-10000 | ＞10001 |
Kwv yees Sijhawm (hnub) | 15 | 30 | Yuav tsum tau sib tham |
Qhov Zoo
1) Txhua qhov khoom seem tseem ceeb yuav raug kho nrog nyuaj-anodization txhawm rau txhim kho lub zog kom zoo rau qib kom ntseeg tau tias kev ua tau zoo thiab lub luag haujlwm lub neej.
2) Txhua txoj hauv kev yog ib zaug-tsim los ntawm CNC kom ntseeg tau tias cov txheej txheem raug thiab lub luag haujlwm lub neej.
Daim ntawv thov
Pneumatic rack thiab pinion actuators tuaj yeem siv rau ntau yam flammable, corrosive, plua plav, muaj zog sib nqus, hluav taws xob, kev co thiab xeb hauv tsev lossis ib puag ncig sab nraum zoov, thiab tau siv dav hauv hluav taws xob, roj av, hlau, roj av, roj ntuj, cov nroog, cov tsev , Cov dej ntws, tshuaj lom neeg, kev ua kom zoo roj, tsuas, cov chaw tsim hluav taws xob, kev siv hlau, kev tsim kho, tshuaj, khoom noj, roj nkev, tshawb fawb tshawb fawb, thiab lwm yam.
Tuam txhab Taw qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb feem ntau tsim Pneumatic Actuator, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic/Hluav Taws Xob Tswj Valve, thiab lwm yam.

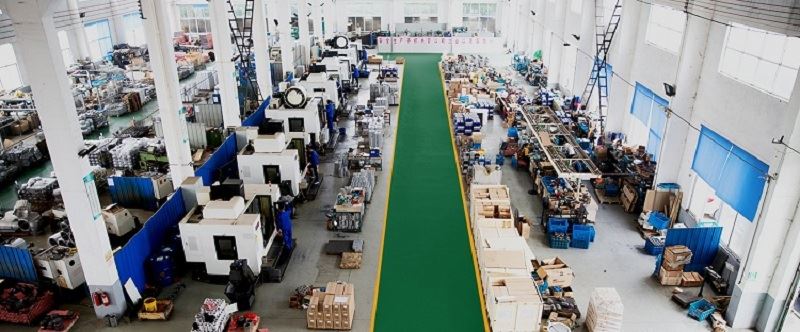

Peb lub tuam txhab muaj cov cuab yeej ua tiav thiab cov cuab yeej ntsuas zoo. Peb cov cuab yeej ua tiav suav nrog tshuab dhos, tshuab milling, tshuab tho txawv, npaj, tshuab drilling, CNC tshuab dhos, CNC chaw ua haujlwm thiab lwm yam khoom siv. Muaj tag nrho 30 teeb tsa, ntawm qhov uas muaj 5 teeb tsa txawv teb ntsug tshuab nruab nrab thiab ob peb teeb tsa siab CNC tshuab dhos.
