Product Overview

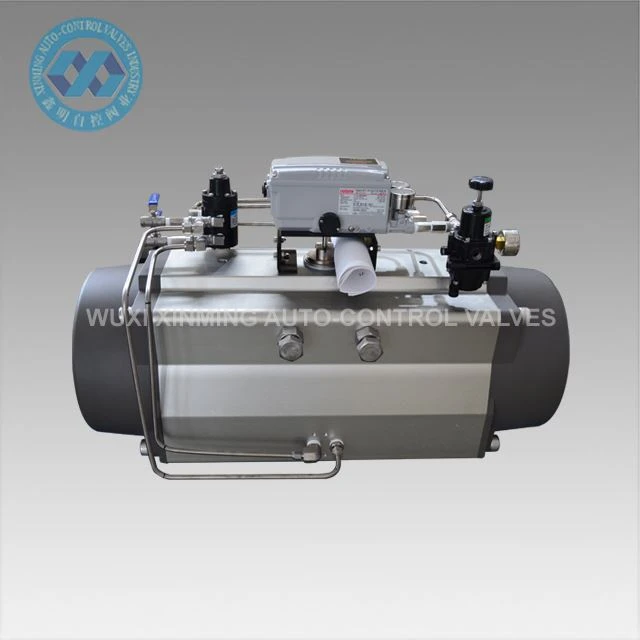

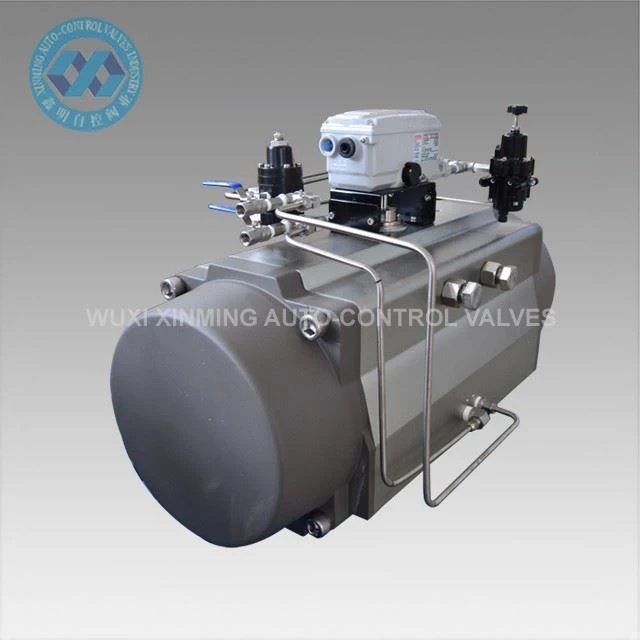

Ob chav Acting Rack thiab Pinion Pneumatic Actuator yog tsim los rau kev ua haujlwm lub quarters -tig pob li qub thiab npauj npaim li qub hauv cov kav dej ua haujlwm. Nws muab kev tswj xyuas pneumatic txhim khu kev qha rau 0℃-90℃valve ua haujlwm thiab sib xws nrog cov qauv kev sib txuas xws li ISO 5211 thiab NAMUR VDI / VDE 3845.
Nws yog dav siv nyob rau hauv industrial automation systems qhov twg ruaj khov thiab standardized valve actuation yuav tsum tau.
Technical Parameter
| Khoom npe | Pneumatic Rotary Actuator |
| Hom lub npe | XM, thiab OEM kuj txais |
| Actuator loj | 32mm-400mm |
| Rotary lub kaum sab xis | 0℃~ 90 degree |
| Ua hauj lwm kub ntau yam |
-20℃~ +80℃(tus qauv) -40℃~ +80℃(tsis tshua muaj kub) -15 ℃ ~ 150 ℃ (siab kub) |
| Cua muab siab | 0.2 ~ 0.8MPa, 10Mpa max |
| Kev sib txuas saum toj kawg nkaus | VDI/VDE3845 NAMUR |
| Kev sib txuas hauv qab | ISO 5211 thiab DIN 3337 |
| Khoom siv | Aluminium alloy |
| Qauv | khib thiab pinion, dual khib pistons |
| Actuator lub cev nto kho | nyuaj anodized |
| End Cap Xim | dub grey, dub, tsaus xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam. |
| Daim ntawv pov thawj | CE, ATEX, SIL3, ISO9001: 2016 |
XM Ob chav ACTING PNEUMATIC ROTARY ACTUATOR OUTPU TORQUE TABLE
|
Qauv |
Input cua siab (unit: bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Cua siab tso zis torque (Nm) |
||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM{0}}DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
Nta
- Ob chav ua yeeb yam khib thiab pinion tsim kom muaj huab cua ruaj khov - tsav qhib thiab kaw tswj.
- 0℃-90℃quarter-tig tso zis rau pob li qub thiab npauj npaim li qub.
- Dual khib piston qauv txhim kho torque tshuav nyiaj li cas thiab txo cov neeg kho tshuab kev nyuaj siab.
- Hard anodized aluminium lub cev muab kev tiv thaiv corrosion hauv kev lag luam ib puag ncig.
- NAMUR VDI/VDE 3845 thiab ISO 5211 mounting rau ncaj qha installation yam tsis muaj adapters.
- Kev kub ntau yam kev xaiv rau tus qauv thiab hnyav ua haujlwm.
- OEM customization muaj rau torque, loj, thiab xim yuav tsum tau.
- CE, ATEX, SIL3, ISO9001 tau ntawv pov thawj rau kev siv automation.
Daim ntawv thov
- Pob valve automation nyob rau hauv cov roj thiab roj pipelines
- Npauj npaim valve tswj hauv cov chaw kho dej
- Chemical processing flow regulation systems
- Fais fab nroj tsuag chav thiab dej tswj systems
- Khoom noj khoom haus, dej haus, thiab tshuaj ntau lawm kab
- General industrial txheej txheem automation
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom: 10000 units ib hlis Pneumatic Rotary Actuator
Packing & Delivery
Packing nthuav dav:
1). cais thawv nrog npuas packing hauv
2). plywood rooj plaub rau kev xa khoom hiav txwv
3). Plywood pallet rau huab cua xa khoom
Chaw nres nkoj tawm: Shanghai, Ningbo, thiab lwm yam. Tuam Tshoj
Lub Sijhawm Lead:
|
Quantity (Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Sijhawm (hnub) |
Cov khoom hauv Tshuag |
7 |
20 |
Yuav tsum sib tham |
