Khoom Taw Qhia
Lub Hard Anodizing Pneumatic Actuator muaj lub compact ob-piston khib-thiab-pinion qauv nrog meej gearing thiab ruaj khov tso zis torque; lub tog raj kheej lub cev yog ua los ntawm extruded aluminium alloy, anodized, nrog ib tug tawv nto thiab muaj zog hnav tsis kam; nws tuaj yeem ntsia tau raws li qhov xav tau. Valve, echo ntaus ntawv, positioner (qhib qhia), triplet thiab phau ntawv kev khiav hauj lwm mechanism. Sib txuam pob valve, npauj npaim valve thiab lwm yam angular stroke li qub.
Tsim nta
1. Lub cev valve thiab piston yog nyuaj anodized.
2. Tshwj tsis yog qhov taw qhia ntsia hlau yog yas, tag nrho lwm cov ntsia hlau yog SS304.
3. Loj thiab me me tso zis torque yog xaiv tau.
Technical Parameter
XM ALUMINIUM PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Input cua siab (unit: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Spare Parts thiab Khoom siv

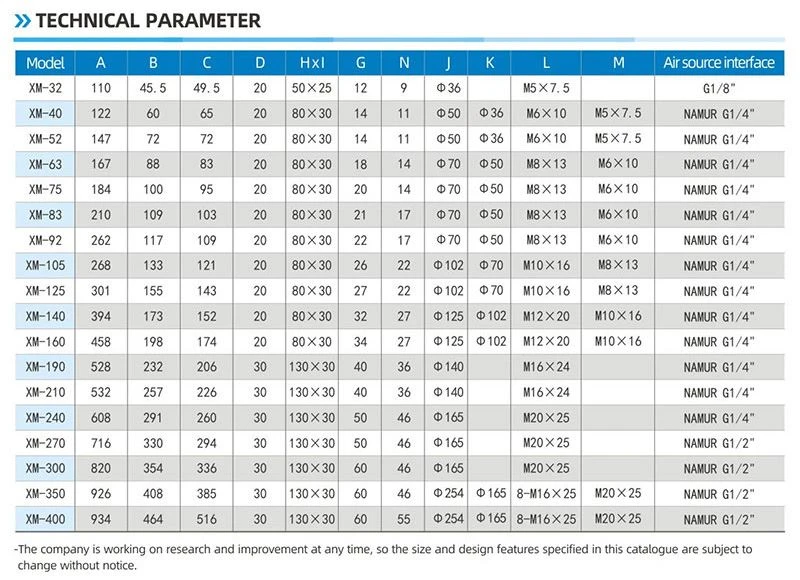

Daim duab Dimension
