Khoom Taw Qhia
90 degree Pneumatic Actuators muaj cov yam ntxwv tshwj xeeb, thev naus laus zis siab dua, kev tsim khoom tsim nyog, kev lag luam yooj yim thiab tsim qauv, thiab tuaj yeem ncaj qha nruab nrog lwm yam khoom siv ntxiv txhawm rau txhim kho kev ua haujlwm tau zoo thiab kev lag luam.
Paub meej sai

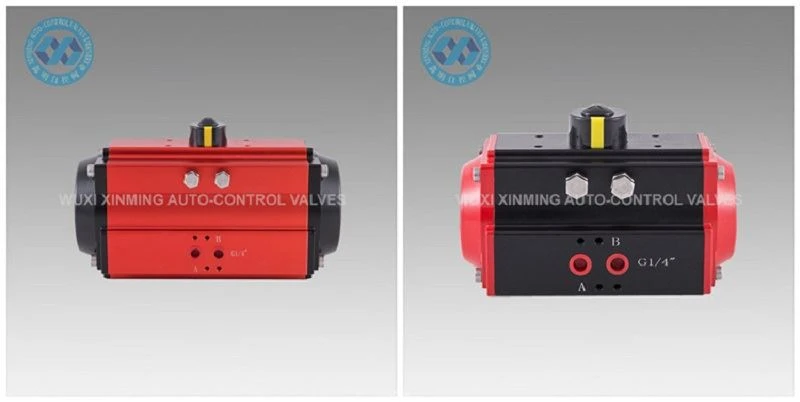

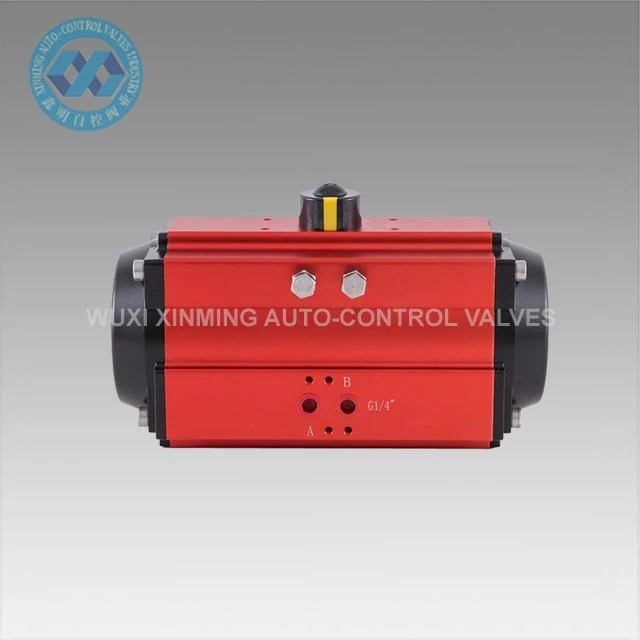

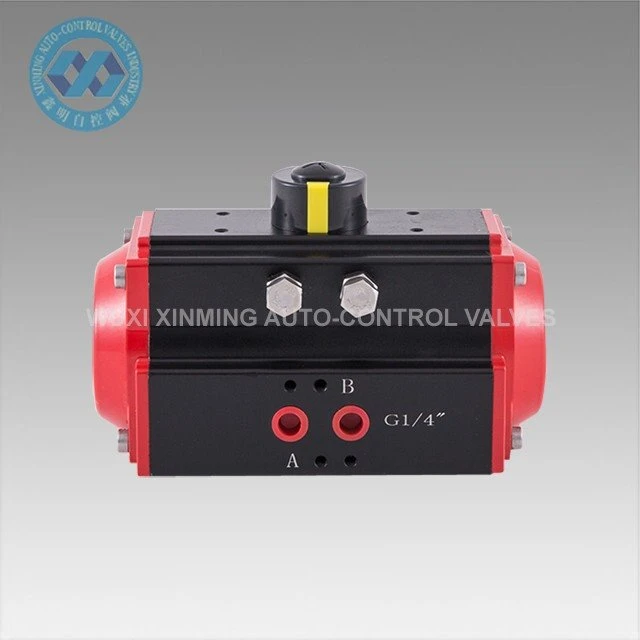

Khoom Lub Npe: 90 degree Pneumatic Actuator
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Actuator loj: 32mm-400mm
Teb lub kaum ntse ntse: 0 ° ~ 90 ° (± 5 °)
Ua Haujlwm Kub Ntau Yam: -20 ℃ ~ +80 ℃ (tus qauv)
-40 ℃ ~ +80 ℃ (qis kub)
-15 ℃ ~ 150 ℃ (kub siab)
Cua txaus siab: 0.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI/VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Cov qauv: khib thiab pinion, ob chav pistons
Actuator lub cev kho qhov chaw: tawv anodized, lossis poob oxidation
Xaus Cap Xim: dub txho, dub, tsaus nti xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016

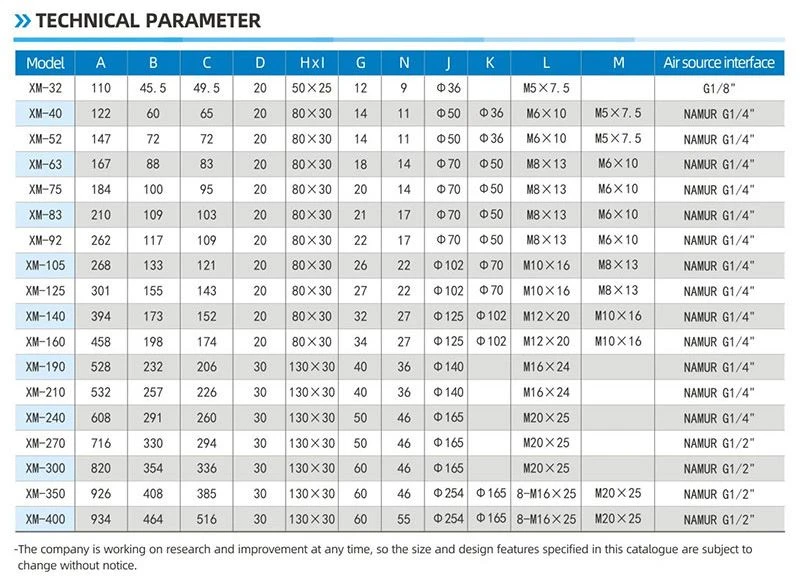

Parameter kev
XM 90 DEGREE PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Tawm tswv yim cua siab (chav: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

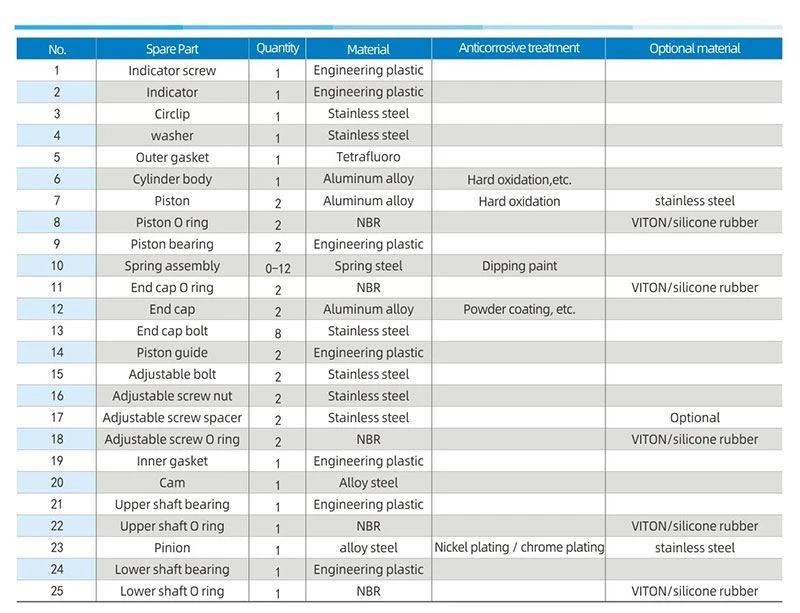

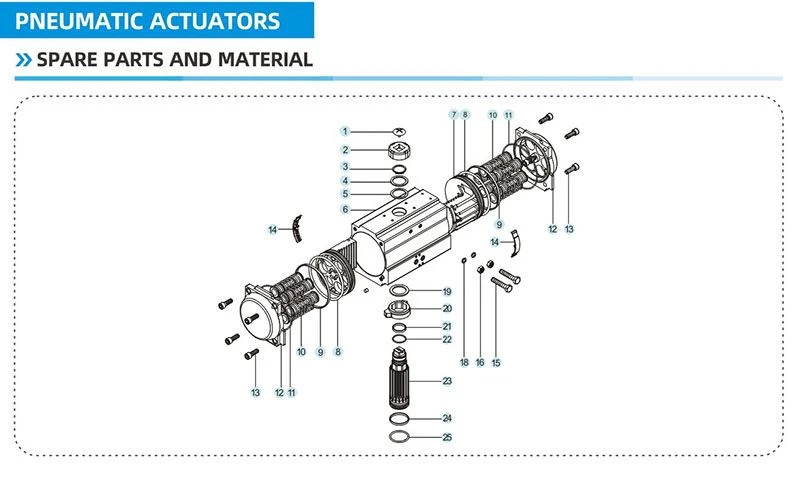

Khoom seem thiab khoom siv

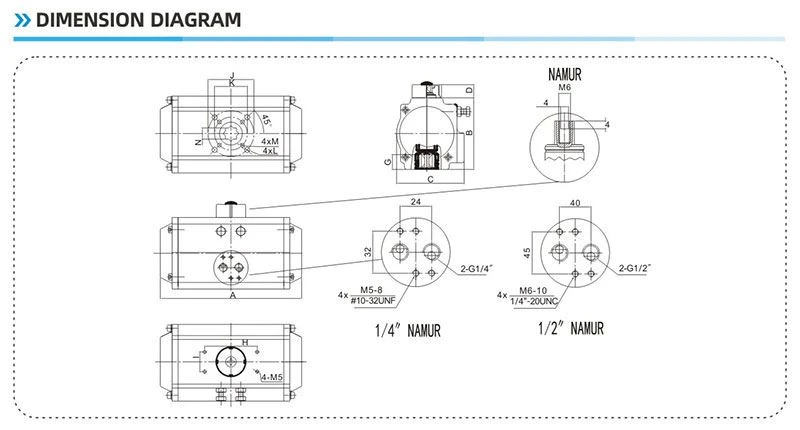

Daim duab Dimension
Feature
-Qhov qauv yog cov khib me me thiab pinion pneumatic actuator.
-Kev siv rau lub quarter-tig li qub, pob li qub, npauj npaim li qub thiab ntsaws li qub.
-High-quality aluminium alloy, tawv anodized nto + Teflon.
-High-end khoom, zoo heev, thiab cov ntawv pov thawj zoo meej.
-Txhua yam khoom raug kuaj nruj me ntsis thaum lawv tawm hauv lub Hoobkas, thiab txhua tus neeg ua haujlwm tau cim nrog cov lej tsim khoom kom yooj yim txheeb xyuas thiab taug qab cov kev pabcuam.
Qhov Zoo
1) Txhua qhov khoom seem tseem ceeb yuav raug kho nrog nyuaj-anodization txhawm rau txhim kho lub zog kom zoo rau qib kom ntseeg tau tias kev ua tau zoo thiab lub luag haujlwm lub neej.
2) Txhua txoj hauv kev yog ib zaug-tsim los ntawm CNC kom ntseeg tau tias cov txheej txheem raug thiab lub luag haujlwm lub neej.

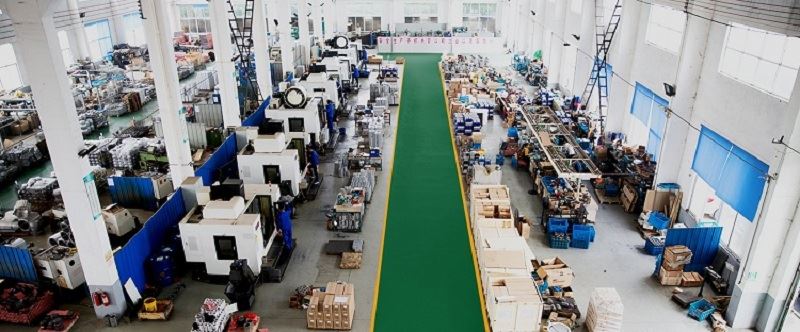

Muaj Peev Xwm Muaj Peev Xwm
Kev Muaj Peev Xwm: 10000 units hauv ib hlis Pneumatic Rotary Actuator
Ntim& Kev xa khoom
Cov ntsiab lus ntim: 1). cais cov thawv nrog ua npuas ncauj ntim sab hauv
2). rooj plaub plywood rau kev xa khoom hiav txwv
3). Plywood pallet rau kev xa khoom cua
Chaw nres nkoj tawm mus: Shanghai, Suav
Lub Sijhawm Ua Haujlwm:
Quantity (Chav Nyob) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
Kwv yees Sijhawm (hnub) | Cov khoom hauv Tshuag | 7 | 20 | Yuav tsum tau sib tham |
