Khoom Taw Qhia
Hauv kev lag luam valve automation systems, tus actuator yog cov khoom siv uas txiav txim siab seb lub valve tuaj yeem ua haujlwm tau zoo nyob rau lub sijhawm ntev. Hauv ntau qhov kev teeb tsa tiag tiag peb tau pom, qhov teeb meem valve tsis yog los ntawm lub valve nws tus kheej, tab sis los ntawm kev xaiv tus actuator tsis raug -torque tsis txaus, hloov tsis ruaj khov, lossis cov lus teb tsis zoo nyob rau hauv kev ua haujlwm tsis tu ncua.

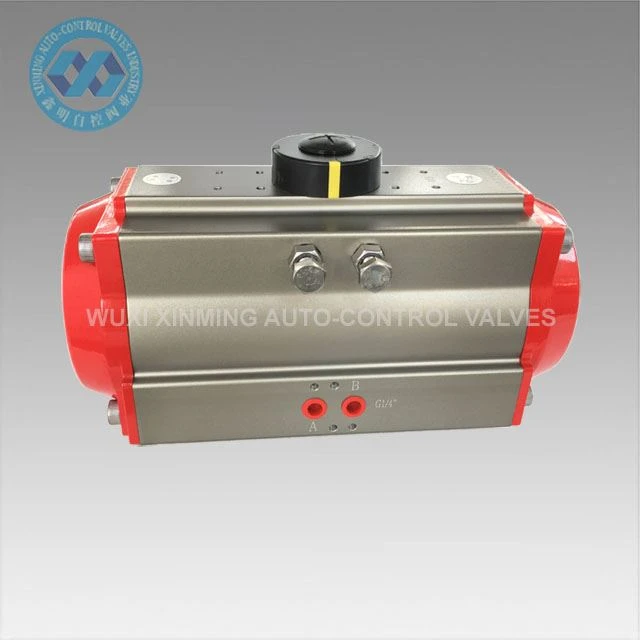

XM Pneumatic Valve Actuator yog tsim los rau lub quarter-tig valve automation, suav nrog pob li qub thiab npauj npaim li qub. Nws converts compressed cua mus rau hauv rotary tsab ntawv tsa suab los ntawm ib tug khib thiab pinion mechanism, enabling ceev thiab ruaj khov valve ua hauj lwm nyob rau hauv industrial txheej txheem systems.
Nws yog dav siv hauv kev kho dej, tshuaj ua haujlwm, HVAC systems, thiab kev lag luam automation uas txhim khu kev qha rau / tawm valve tswj yog xav tau.
Nta
- Khib thiab pinion qauv kom ruaj khov rotary motion
- Fast pneumatic teb rau automated valve tswj
- Muaj nyob rau hauv ob chav ua yeeb yam thiab caij nplooj ntoos hlav rov qab hom
- ISO 5211 mounting rau kev yooj yim valve installation
- Compact aluminium alloy vaj tsev rau kev siv
- Haum rau kev ua haujlwm txuas ntxiv mus
- Tau tshaj solenoid li qub thiab txwv hloov lub thawv
Technical Specifications
Yam khoom: Pneumatic Valve Actuator
Tsim: Rack thiab Pinion
Hom kev ua haujlwm: Caij nplooj ntoos hlav rov qab
Lub kaum sab xis tig: 90℃tus qauv
Ua hauj lwm nruab nrab: huv si, qhuav compressed cua
Khoom siv lub cev: Aluminium alloy
Mounting Txuj: ISO 5211
Ua haujlwm siab: 2.5-8bar
Temperature Range: Standard / High temperature xaiv muaj
Tswj System: Pneumatic automation tau tshaj
Installation ntawm Pneumatic Actuators
Kev tsim nyog tsim nyog yog los xyuas kom meej tias lub axis ntawm lub pneumatic actuator thiab lub valve qia muaj coaxiality.Ua ntej actuator thiab valve sib dhos, lub valve yuav tsum tau ntsuas thiab qhov xav tau torque yuav tsum tsis txhob tshaj. Tom qab sib dhos, lub pneumatic actuator thiab valve raug kuaj, thiab cov ntsuas ntsuas tau siv rau lub valve. Cov cua qhov siab ntawm lub actuator yog 0.4mpa lossis raws li tus neeg siv yuav tsum tau ua. Qhov qhib thiab kaw ntawm lub valve yuav tsum tau hloov pauv, thiab yuav tsum tsis txhob daig, nkag thiab lwm yam tshwm sim, thiab Ua ntau yam kev sim.
Pneumatic actuators nruab nrog solenoid li qub yuav tsum tau nruab nrog cov khoom siv phau ntawv thaum lub sij hawm debugging. Tig lub khawm liab ntawm lub solenoid valve thiab mus dhau ntawm kev ua haujlwm hluav taws xob. Thaum siv cov txheej txheem kev khiav hauj lwm phau ntawv, cov roj los yog kua yuav tsum raug txiav tawm, thiab tom qab ntawd lub tshuab pneumatic yuav tsum tau debugged. Pneumatic actuators yuav tsum ua kom cov huab cua qhuav thiab huv si, thiab cov actuators yuav tsum tsis tu ncua thiab tswj xyuas, thiab cov cua lim yuav tsum tau ntws thiab tso dej tsis tu ncua kom tsis txhob nkag mus rau hauv lub solenoid valve lossis pneumatic actuator thiab cuam tshuam rau kev ua haujlwm ib txwm muaj.
Daim ntawv thov
- Pob valve automation systems
- Npauj npaim valve tswj systems
- Cov nroj tsuag kho dej
- HVAC pipeline systems
- Cov txheej txheem tshuaj
- Muaj cov kav dej siv hluav taws xob
- Automated ntau lawm systems
OEM & Customization
- XM muab cov kev daws teeb meem OEM hloov tau rau cov kev xav tau sib txawv:
- Ob chav ua yeeb yam lossis caij nplooj ntoos hlav rov qab teeb tsa
- Kev hloov torque rau ntau qhov sib txawv valve
- Tshwj xeeb mounting interfaces yog xav tau
- Solenoid valve thiab txoj hauj lwm tawm tswv yim kev koom ua ke
- OEM branding thiab ntim kev txhawb nqa
