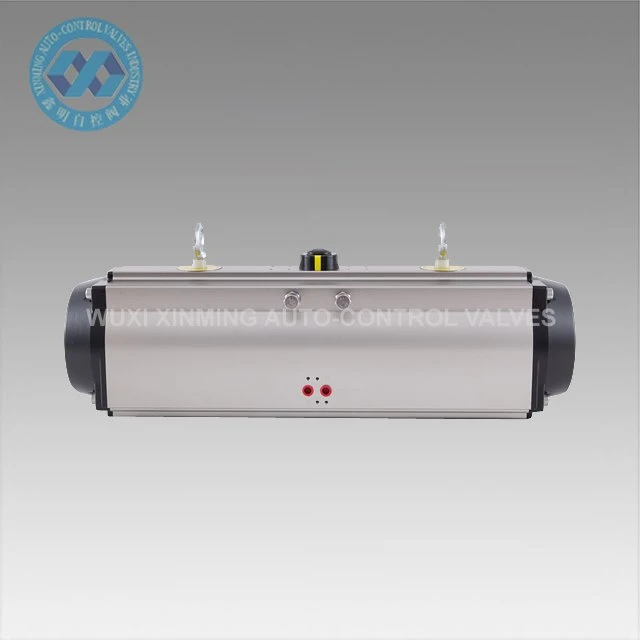

Khoom Taw Qhia
180 degree Pneumatic Actuator yog tsim los ntawm ob lub pistons uas tau tsav los ntawm khib thiab pinion. Muaj ob qho qauv. Ib qho yog ob yam ua yeeb yam, thiab lwm qhov yog lub caij nplooj ntoo hlav rov los, uas tuaj yeem hloov pauv mus rau ntau qhov chaw muaj kuab paug sab hauv tsev lossis sab nraum zoov.
Paub meej sai
Khoom Lub Npe: 180 degree Pneumatic Actuator
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Actuator loj: 32mm-400mm
Teb lub kaum ntse ntse: 0 ° ~ 180 ° (± 5 °)
Ua Haujlwm Kub Ntau Yam: -20 ℃ ~ +80 ℃ (tus qauv)
-40 ℃ ~ +80 ℃ (qis kub)
-15 ℃ ~ 150 ℃ (kub siab)
Cua txaus siab: 0.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI/VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Cov qauv: khib thiab pinion, ob chav pistons
Actuator lub cev kho qhov chaw: tawv anodized, lossis poob oxidation
Xaus Cap Xim: dub txho, dub, tsaus nti xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016

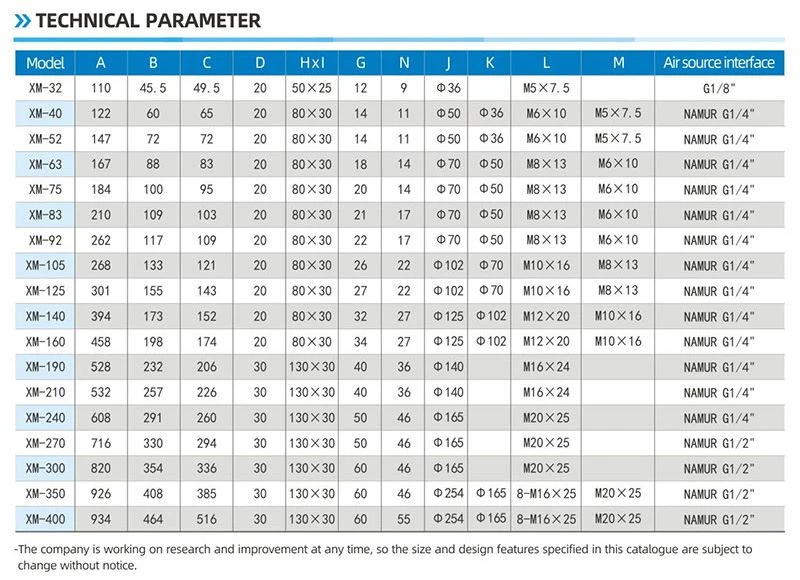

Parameter kev
XM 180 DEGREE PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Tawm tswv yim cua siab (chav: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32-180 ° | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40-180 ° | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52-180 ° | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63-180 ° | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75-180 ° | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83-180 ° | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92-180 ° | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105-180 ° | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125-180 ° | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140-180 ° | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160-180 ° | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190-180 ° | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210-180 ° | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240-180 ° | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270-180 ° | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300-180 ° | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350-180 ° | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400-180 ° | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

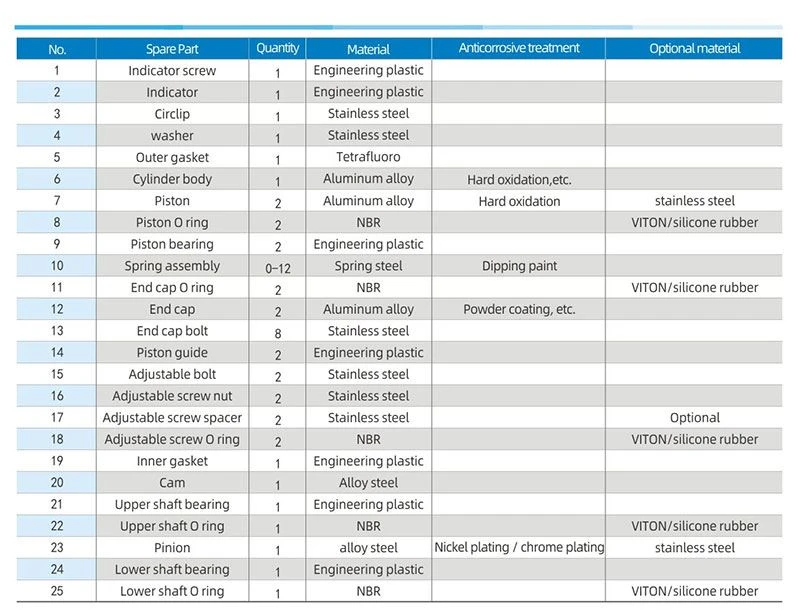

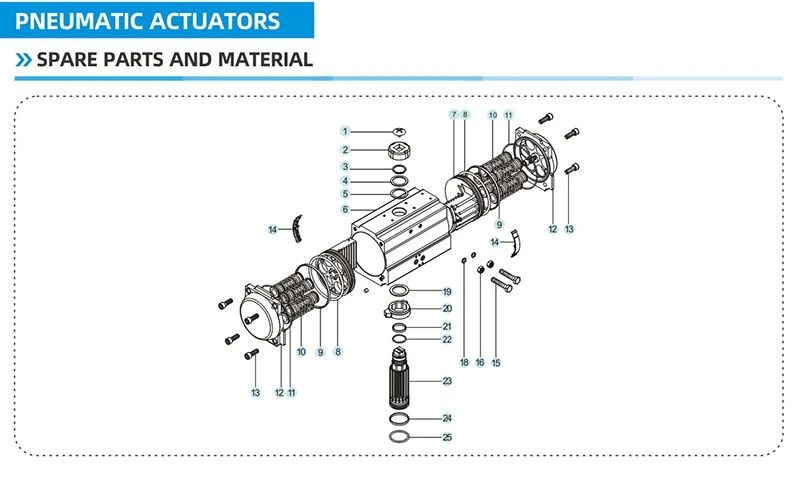

Khoom seem thiab khoom siv

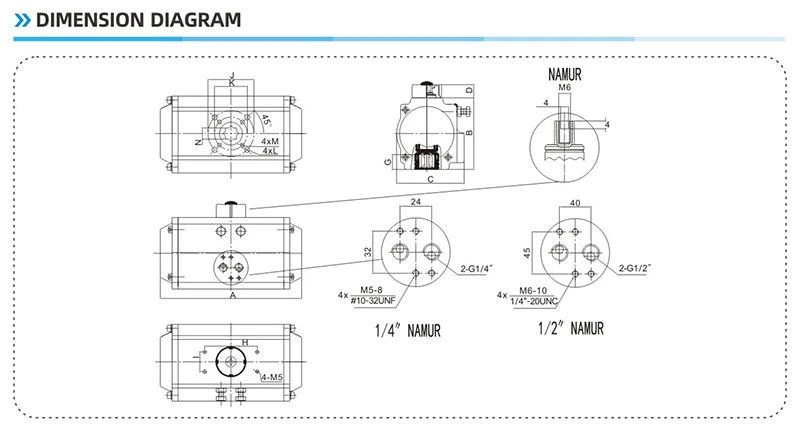

Daim duab Dimension
FAQ
Q1: Muaj peev xwm them nqe lus li cas?
A 1: T/T, L/C, Western Union.
Q2: Cov nqe lus lag luam?
A 2: Raws li Incoterms 2010, ib txwm nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q3: Kev siv tau cov lus hais?
A 3: Hauv 30 hnub.
Q4: Hom kev xa khoom?
A 4: Los ntawm hiav txwv, cua, nthuav qhia, lossis los ntawm kev tsheb nqaj hlau.
Q5: Warranty?
A 5: Ib xyoo lav zoo rau dawb, thiab them nyiaj tas mus li.
Q6: Kev teeb tsa thiab kev cob qhia?
A 6: cov lus qhia ib txwm siv rau kev teeb tsa. Yog tias tsim nyog, them nyiaj pabcuam kev tsim vaj tsev nyob txawv tebchaws.
