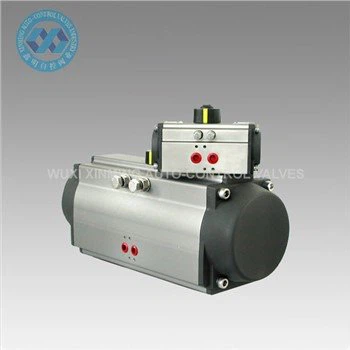

Pneumatic Rotary Actuator

Pneumatic rotary actuators siv compressed cua los tsim lub zog ua haujlwm. Qee qhov yog tsim los rau cov chaw taws teeb tswj ntawm li qub. Pneumatic rotary actuators yog qhov ruaj khov, muab cov zog siab ntsig txog lawv qhov loj, thiab tuaj yeem siv rau hauv qhov chaw muaj kev phom sij....

Xa kev nug

Tsham tam sim no

Hauj lwm lawm

Pneumatic rotary actuators siv compressed cua los tsim lub zog ua haujlwm. Qee qhov yog tsim los rau cov chaw taws teeb tswj ntawm li qub. Pneumatic rotary actuators yog qhov ruaj khov, muab cov zog siab ntsig txog lawv qhov loj me, thiab tuaj yeem siv rau hauv qhov chaw muaj kev phom sij.

Khoom Paub meej:

Khoom npe	Pneumatic Rotary Actuator
Hom lub npe	XM thiab OEM kuj txais
Actuator loj	32mm-400mm
Rotary lub kaum sab xis	0℃~ 90℃(± 5 degree)
Ua hauj lwm kub ntau yam	-20℃~ +80℃(tus qauv) -40℃~ +80℃(tsis tshua muaj kub) -15 ℃ ~ 150 ℃ (siab kub)
Cua muab siab	0.2 ~ 0.8 MPa, 10 MPa max
Kev sib txuas saum toj kawg nkaus	VDI/VDE3845 NAMUR
Kev sib txuas hauv qab	ISO 5211 thiab DIN 3337
Khoom siv	Aluminium alloy
Qauv	khib thiab pinion, dual khib pistons
Actuator lub cev nto kho	nyuaj-anodized
End Cap Xim	dub, dub, tsaus xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Daim ntawv pov thawj	CE, ATEX, SIL3, ISO9001: 2016

Spare Parts thiab Khoom siv:

product-869-448

TSIS MUAJ.	Khoom seem	Ntau	Khoom siv	Anticorrosive kev kho mob	Xaiv cov khoom siv
1	Qhov taw qhia ntsia hlau	1	Engineering yas
2	Qhov taw qhia	1	Engineering yas
3	Circlip	1	Stainless hlau
4	Lub tshuab ntxhua khaub ncaws	1	Stainless hlau
5	Sab nrauv gasket	1	Tetrafluoro
6	Lub tog raj kheej lub cev	1	Aluminium alloy	Hard oxidation, thiab lwm yam.
7	Piston	2	Aluminium alloy	Hard oxidation	Stainless hlau
8	Piston O nplhaib	2	NBR		VITON / silicone roj hmab
9	Piston bearing	2	Engineering yas
10	Caij nplooj ntoos hlav sib dhos	0-12	Caij nplooj ntoos hlav steel	Dipping xim
11	End cap O nplhaib	2	NBR		VITON / silicone roj hmab
12	Kawg cap	2	Aluminium alloy	Hmoov txheej, thiab lwm yam.
13	End cap bolt	8	Stainless hlau
14	Piston phau ntawv qhia	2	Engineering yas
15	Adjustable ntsia liaj qhov rooj	2	Stainless hlau
16	Adjustable ntsia hlau ntsia hlau	2	Stainless hlau
17	Adjustable ntsia hlau spacer	2	Stainless hlau		Xaiv tau
18	Adjustable ntsia hlau O nplhaib	2	NBR		VITON / silicone roj hmab
19	Sab hauv gasket	1	Engineering yas
20	Cam	1	Hlau alloy
21	Upper ncej bearing	1	Engineering yas
22	Upper ncej O nplhaib	1	NBR		VITON / silicone roj hmab
23	Pinion	1	Hlau alloy	Nickel plating / chrome plating	Stainless hlau
24	Cov kabmob qis dua	1	Engineering yas
25	Ntiv nplhaib O nplhaib	1	NBR		VITON / silicone roj hmab

Dimension Diagram:

product-929-448

Khoom Specifications:

Qauv	A	B	C	D	H×I	G	N	J	K	L	M	Cua -qhov chaw interface
XM-32	110	45.5	49.5	20	50×25	12	9	Φ36	M5×7.5			G1/8"
XM-40	122	60	65	20	80×30	14	11	Φ50	Φ36	M6×10	M5×7.5	NAMUR G 1/4"
XM-52	147	72	72	20	80×30	14	11	Φ50	Φ36	M6×10	M5×7.5	NAMUR G 1/4"
XM-63	167	88	83	20	80×30	18	14	Φ70	Φ50	M8×13	M6×10	NAMUR G 1/4"
XM-75	184	100	95	20	80×30	20	14	Φ70	Φ50	M8×13	M6×10	NAMUR G 1/4"
XM-83	210	109	103	20	80×30	21	17	Φ70	Φ50	M8×13	M6×10	NAMUR G 1/4"
XM-92	262	117	109	20	80×30	22	17	Φ70	Φ50	M8×13	M6×10	NAMUR G 1/4"
XM-105	268	133	121	20	80×30	26	22	Φ102	Φ70	M10×16	M8×13	NAMUR G 1/4"
XM-125	301	155	143	20	80×30	27	22	Φ102	Φ70	M10×16	M8×13	NAMUR G 1/4"
XM-140	394	173	152	20	80×30	32	27	Φ125	Φ102	M12×20	M10×16	NAMUR G 1/4"
XM-160	458	198	174	20	80×30	34	27	Φ125	Φ102	M12×20	M10×16	NAMUR G 1/4"
XM-190	528	232	206	30	130×30	40	36	Φ140	M16×24			NAMUR G 1/4"
XM-210	532	257	226	30	130×30	40	36	Φ140	M16×24			NAMUR G 1/4"
XM-240	608	291	260	30	130×30	50	46	Φ165	M20×25			NAMUR G 1/4"
XM-270	716	330	294	30	130×30	50	46	Φ165	M20×25			NAMUR G 1/2"
XM-300	820	354	336	30	130×30	60	46	Φ165	M20×25			NAMUR G 1/2"
XM-350	926	408	385	30	130×30	60	46	Φ254	Φ165	8-M16×25	M20×25	NAMUR G 1/2"
XM-400	934	464	516	30	130×30	60	55	Φ254	Φ165	8-M16×25	M20×25	NAMUR G 1/2"

Qhov zoo

1) Tag nrho cov khoom tseem ceeb yuav raug kho nrog nyuaj anodization los txhim kho lawv lub zog mus rau qib siab kom ntseeg tau tias kev ua tau zoo thiab lub neej ua haujlwm.

2) Tag nrho cov txheej txheem yog ib qho -lub sij hawm tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.

Daim ntawv thov

Pneumatic rotary actuators tuaj yeem siv rau ntau yam flammable, corrosive, plua plav, muaj zog magnetic teb, hluav taws xob, kev co, thiab corrosion nyob rau hauv tsev los yog sab nraum zoov ib puag ncig thiab yog dav siv nyob rau hauv hluav taws xob fais fab, petrochemical, metallurgy, roj, natural gas, lub zos, vaj tse, thiab lwm yam teb. Kev lag luam tshuaj, roj refining, mining, fais fab nroj tsuag, metallurgy, kev tsim kho, tshuaj, khoom noj khoom haus, natural gas, kev tshawb fawb, thiab lwm yam.

Muaj peev xwm muab khoom

Muaj peev xwm muab khoom: 10000 units ib hlis, Pneumatic Rotary Actuator

Packing & Delivery

Packing nthuav dav:

1) Ib lub thawv cais nrog npuas ntim hauv

2) Plywood rooj plaub rau kev xa khoom hiav txwv

3) Plywood pallet rau huab cua xa khoom

Chaw nres nkoj ntawm kev tawm mus: Shanghai, Suav

Lub Sijhawm Lead:

Quantity (Units)	1-50	51-1000	1001-10000	＞10001
Est. Sijhawm (hnub)	Cov khoom hauv Tshuag	7	20	Yuav tsum sib tham

Peb Qhov Kev Pabcuam

1) 7 x 24 teev hotline

2) Kev tswj xyuas nruj

3) Zoo zoo ntawm tus nqi zoo

4) Zoo heev Tom qab- kev pabcuam

5) Kev txhawb nqa online

6) Lub sijhawm xa khoom sai

Hais txog peb:

Wuxi Xinming Auto- tswj Valves Co., Ltd. tshwj xeeb hauv kev tsim ISO9001-certified XM series pneumatic actuators thiab tsis siv neeg tswj li qub, ua raws li ISO5211/DIN3337/VDI/VDE-3845/NAMUR cov qauv. Nrog rau R & D muaj peev xwm ua tau zoo thiab cov chaw tsim khoom, peb cov khoom ua haujlwm rau ntau hom kev lag luam, suav nrog roj & roj, tshuaj, thiab cov chaw tsim hluav taws xob, embodying peb txoj kev cog lus rau "Technology First, Quality Excellence" los ntawm cov kev daws teeb meem tshiab thiab kev ua tau zoo.
