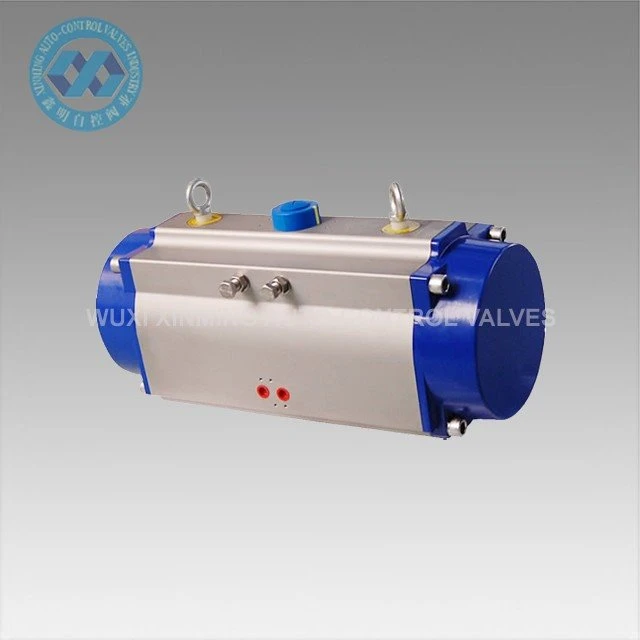

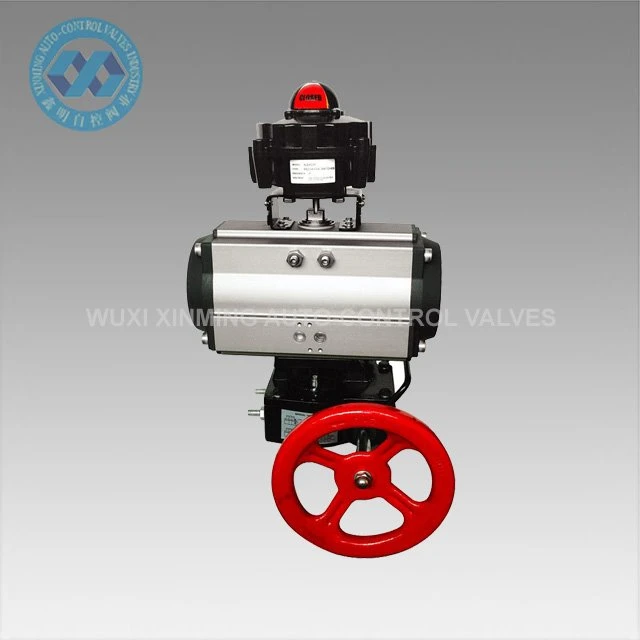

Khoom Taw Qhia
On-off Pneumatic Actuator yog siv los tswj cov npauj npaim li qub, pob li qub, thiab cov tshuab nrog kev txav txav tau txais. Precision die-casting aluminium alloy ob-khib pistons nrog kev kho oxidation nyuaj txhim kho lub kaum sab xis raug thiab lub luag haujlwm lub neej. Lub cev ua haujlwm nrog nyuaj-oxidation tuaj yeem zam qhov khawb tau zoo.
Paub meej sai
Khoom Lub Npe: On-off Pneumatic Actuator
Hom tshuaj npe: XM, thiab OEM kuj tau txais
Actuator loj: 32mm-400mm
Teb lub kaum ntse ntse: 0 ° ~ 90 ° (± 5 °)
Ua Haujlwm Kub Ntau Yam: -20 ℃ ~ +80 ℃ (tus qauv)
-40 ℃ ~ +80 ℃ (qis kub)
-15 ℃ ~ 150 ℃ (kub siab)
Cua txaus siab: 0.2 ~ 0.8MPa, 10Mpa max
Kev sib txuas sab saum toj: VDI/VDE3845 NAMUR
Kev sib txuas hauv qab: ISO 5211 thiab DIN3337
Khoom siv: Aluminium alloy
Cov qauv: khib thiab pinion, ob chav pistons
Actuator lub cev kho qhov chaw: tawv anodized, lossis poob oxidation
Xaus Cap Xim: dub txho, dub, tsaus nti xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam.
Ntawv pov thawj: CE, ATEX, SIL3, ISO9001: 2016
Parameter kev
XM ON-OFF PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Qauv | Tawm tswv yim cua siab (chav: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Cua siab tso zis torque (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

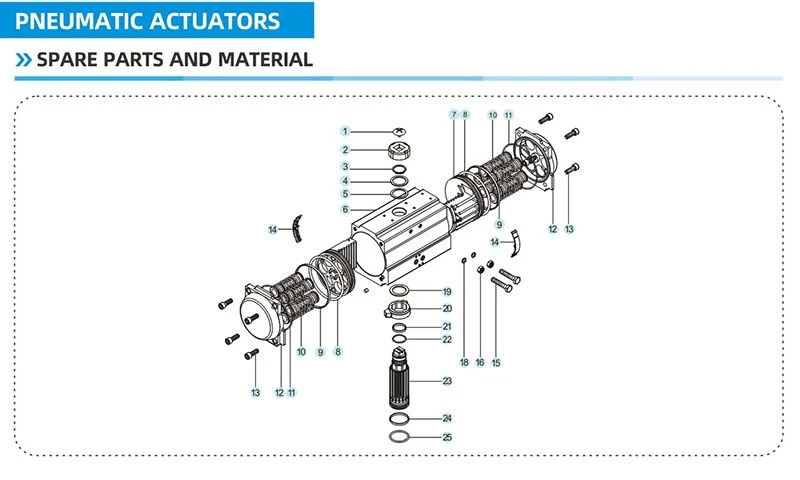

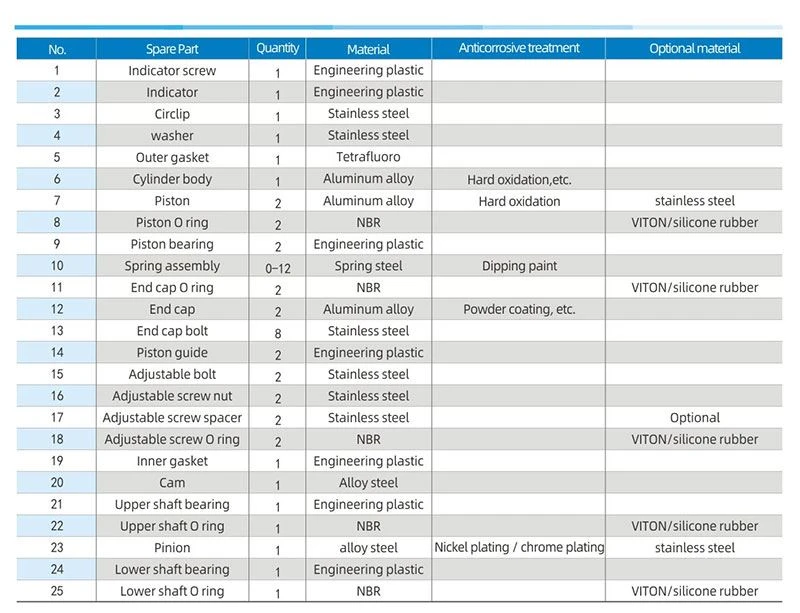

Khoom seem thiab khoom siv

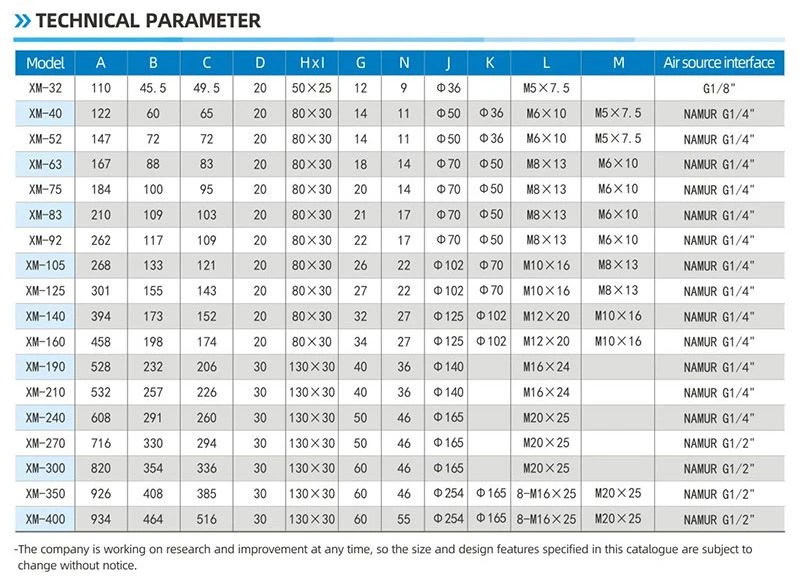

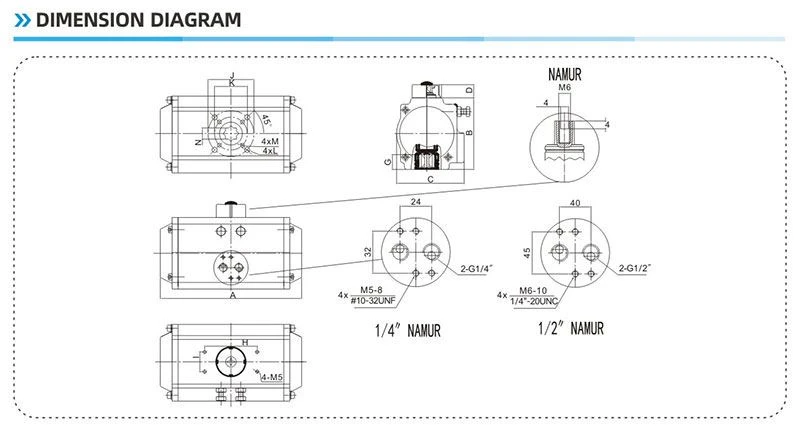

Daim duab Dimension
Muaj Peev Xwm Muaj Peev Xwm
Kev Muaj Peev Xwm: 10000 units hauv ib hlis Pneumatic Rotary Actuator
Ntim& Kev xa khoom
Cov ntsiab lus ntim: 1). cais cov thawv nrog ua npuas ncauj ntim sab hauv
2). Cov ntaub ntawv plywood rau kev xa khoom hiav txwv
3). Plywood pallet rau kev xa khoom cua
Chaw nres nkoj tawm mus: Shanghai, Suav
Lub Sijhawm Ua Haujlwm:
Quantity (Chav Nyob) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
Kwv yees Sijhawm (hnub) | Cov khoom hauv Tshuag | 7 | 20 | Yuav tsum tau sib tham |
Qhov Zoo
1) Txhua qhov khoom seem tseem ceeb yuav raug kho nrog nyuaj-anodization txhawm rau txhim kho lub zog kom zoo rau qib kom ntseeg tau tias kev ua tau zoo thiab lub luag haujlwm lub neej.
2) Txhua txoj hauv kev yog ib zaug-tsim los ntawm CNC kom ntseeg tau tias cov txheej txheem raug thiab lub luag haujlwm lub neej.
Daim ntawv thov
Pneumatic Rack thiab Pinion Actuators tuaj yeem tsim nyog rau ntau yam kev kub hnyiab, xeb, lub luag haujlwm, muaj zog sib nqus, hluav taws xob, kev co ib puag ncig cuam tshuam sab hauv tsev lossis sab nraum zoov, uas tau siv dav hauv kev siv hluav taws xob, petrochemical, metallurgy, roj av, kev tsim kho, dej ntws, kev lag luam tshuaj lom neeg, kev kho roj, kev tsuas, kev tsim hluav taws xob, kev siv hlau, kev tsim vaj tsev, tshuaj, zaub mov, roj, kev tshawb fawb tshawb fawb, thiab lwm yam.
Tuam txhab Taw qhia
Txij li xyoo 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD tau tsim.
Peb feem ntau tsim Pneumatic Actuator, Pneumatic Pob Valve, Pneumatic Npauj Npaim Valve, Pneumatic/Hluav Taws Xob Tswj Valve, thiab lwm yam.
Peb lub tuam txhab muaj cov cuab yeej ua tiav thiab cov cuab yeej ntsuas zoo. Peb cov cuab yeej ua tiav suav nrog tshuab dhos, tshuab milling, tshuab tho txawv, npaj, tshuab drilling, CNC tshuab dhos, CNC chaw ua haujlwm thiab lwm yam khoom siv. Muaj tag nrho 30 teeb tsa, ntawm qhov uas muaj 5 teeb tsa txawv teb ntsug tshuab nruab nrab thiab ob peb teeb tsa siab CNC tshuab dhos.
Peb Qhov Kev Pabcuam
1) 7x24 teev xov tooj
2) Kev tswj kom nruj
3) Zoo zoo ntawm tus nqi tsim nyog
4) Zoo heev Tom qab-kev pabcuam
5) Kev txhawb nqa online
6) Lub sijhawm xa khoom sai
FAQ
Q1: Muaj peev xwm them nqe lus li cas?
A 1: T/T, L/C, Western Union.
Q2: Cov nqe lus lag luam?
A 2: Raws li Incoterms 2010, ib txwm nrog EXW, FOB shanghai, CFR, CIF thiab DDU.
Q3: Kev siv tau cov lus hais?
A 3: Hauv 30 hnub.
Q4: Hom kev xa khoom?
A 4: Los ntawm hiav txwv, cua, nthuav qhia, lossis los ntawm kev tsheb nqaj hlau.
Q5: Warranty?
A 5: Ib xyoo lav zoo rau dawb, thiab them nyiaj tas mus li.
Q6: Kev teeb tsa thiab kev cob qhia?
A 6: cov lus qhia ib txwm siv rau kev teeb tsa. Yog tias tsim nyog, them nyiaj pabcuam kev tsim vaj tsev nyob txawv tebchaws.
