Khoom Taw Qhia

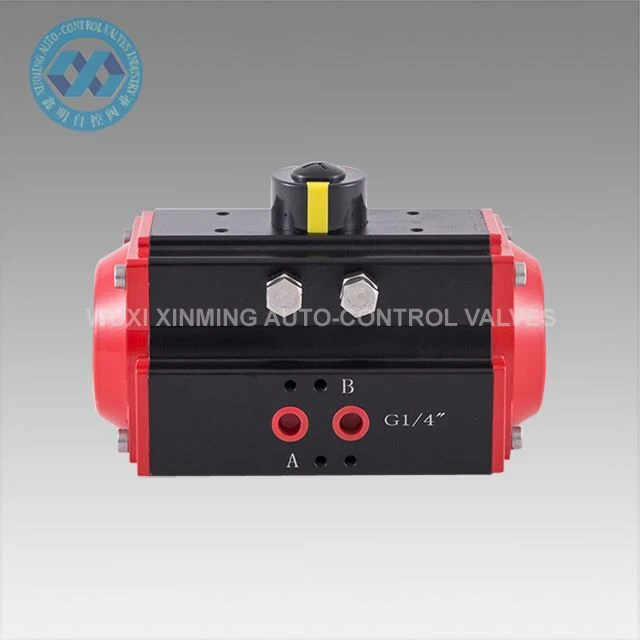

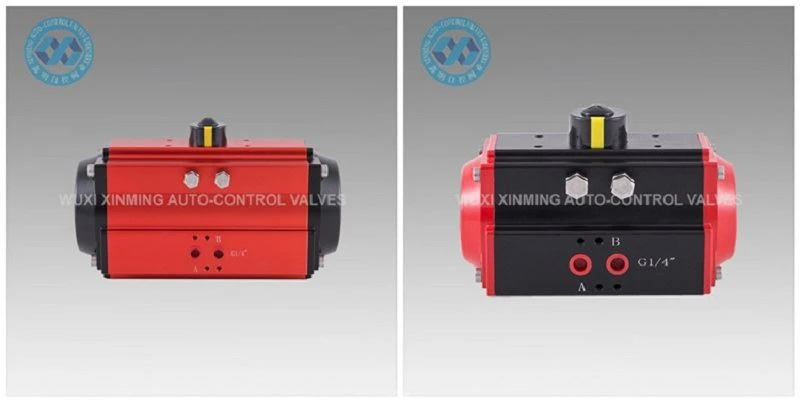

90 Degree Pneumatic Rotary Actuator los ntawm WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. yog ib qho kev sib cog lus thiab siab -cov cuab yeej ua tau zoo tsim los muab cov lus qhia meej 90-degree rotary rau kev tswj tsis siv neeg li qub. Nws yog dav siv los ua haujlwm pob li qub, npauj npaim li qub, thiab ntsaws li qub, muab cov lus teb ceev ceev, ruaj khov torque tso zis, thiab lub neej ua haujlwm ntev.
Ua haujlwm nrog cov thev naus laus zis pneumatic, qhov no 90 Degree Pneumatic Rotary Actuator hloov cov cua siab mus rau hauv lub tshuab hluav taws xob kom ua tau lub quarter-tig valve ua haujlwm tau zoo. Nws yog qhov zoo tagnrho rau kev lag luam uas xav tau kev txhim khu kev qha valve automation, xws li tshuaj lom neeg, petrochemical, dej kho, ua zaub mov, thiab tsim hluav taws xob.

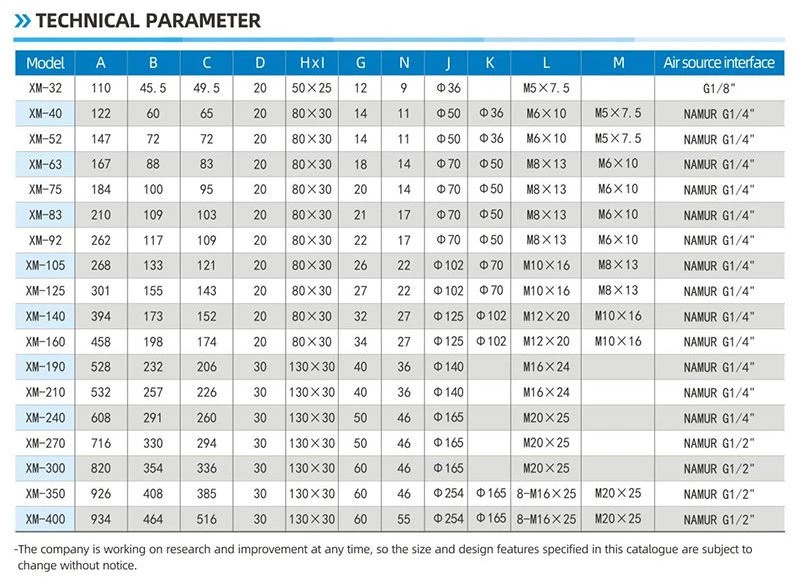

Technical Specifications
| Khoom npe: | 90℃pneumatic teb actuator |
| Hom Lub Npe: | XM, thiab OEM kuj txais |
| Actuator loj: | 32mm-400mm |
| Rotary lub kaum ntse ntse: | 0℃~ 90℃(± 5 degree) |
| Ua haujlwm kub ntau: |
-20℃~ +80℃(tus qauv) -40℃~ +80℃(tsis tshua muaj kub) -15 ℃ ~ 150 ℃ (siab kub) |
| Huab cua siab: |
0.2 ~ 0.8MPa, 10Mpa max |
| Kev sib txuas saum toj kawg nkaus: | VDI/VDE3845 NAMUR |
| Kev sib txuas hauv qab: | ISO 5211 thiab DIN3337 |
| Khoom siv: | Aluminium alloy |
| Qauv: | khib thiab pinion, dual khib pistons |
| Actuator lub cev nto kho: | nyuaj anodized, los yog dip oxidation |
| End Cap Xim: | dub grey, dub, tsaus xiav, ntuj xiav, liab, txiv kab ntxwv, ntsuab, thiab lwm yam. |
| Ntawv pov thawj: | CE, ATEX, SIL3, ISO9001: 2016 |

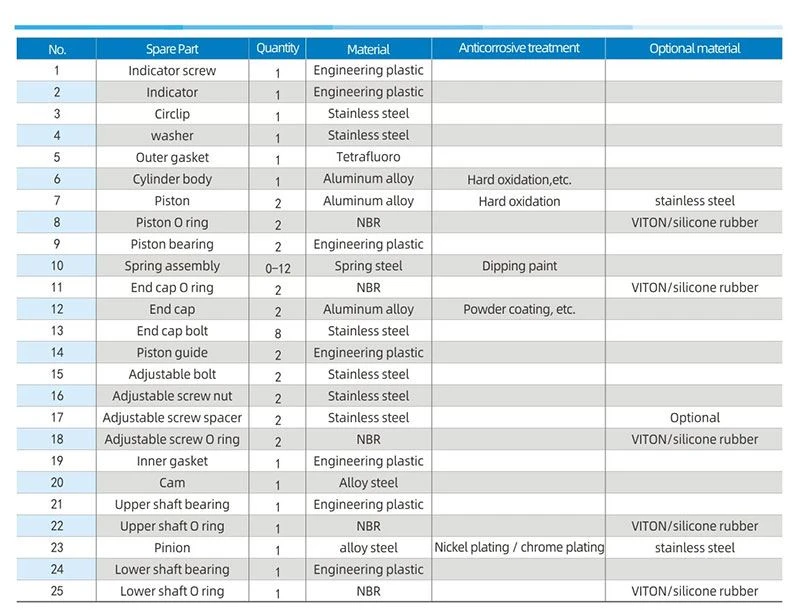

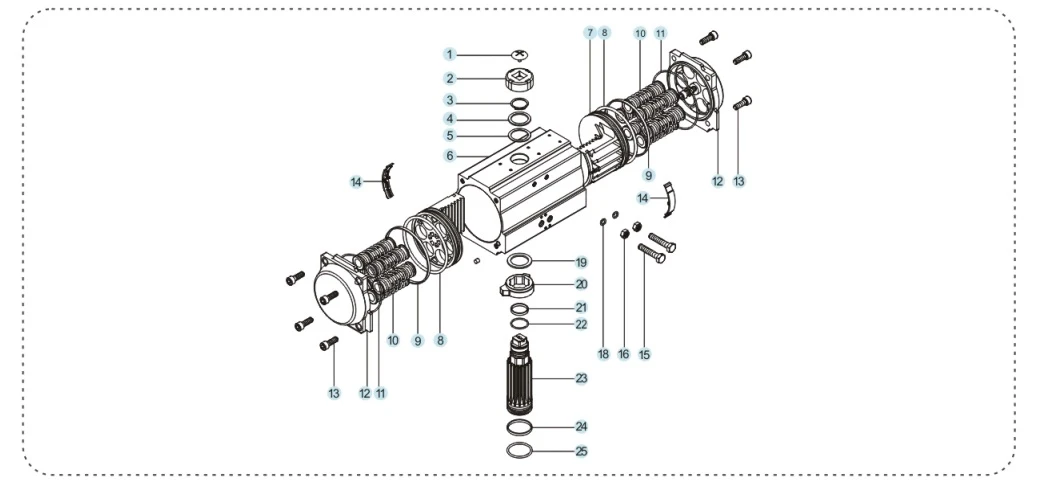

Spare Parts thiab Khoom siv

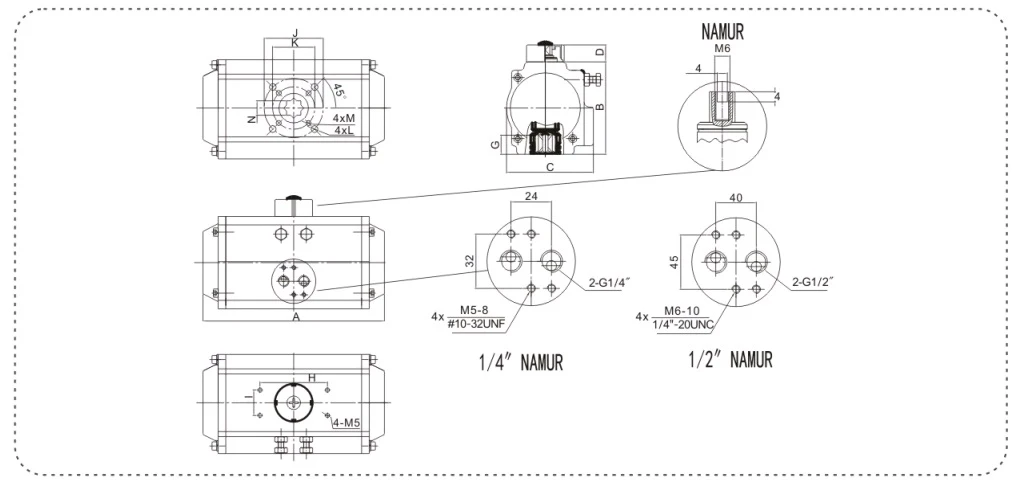

Dimension Daim duab
Product Advantage
Fast thiab txhim khu kev qha valve actuation
Siab torque-rau- qhov loj piv
Ib qho yooj yim installation nrog ISO / NAMUR mounting
Ntev -ntev, corrosion{1}} cov ntaub ntawv tiv taus
Xaiv accessories rau automation kev koom ua ke
Tus nqi -kev daws teeb meem zoo rau kev tswj valve
1) Txhua yam khoom tseem ceeb yuav raug kho nrog nyuaj -anodization los txhim kho lawv lub zog mus rau qib zoo kom ntseeg tau tias kev ua tau zoo thiab lub neej ua haujlwm.
2) Tag nrho cov txheej txheem yog ib qho -lub sij hawm tsim los ntawm CNC los xyuas kom meej cov txheej txheem raug thiab lub luag hauj lwm lub neej.
